Armor Pad 5 Ultra

Specifications

Ulefone Armor Pad 5 Ultra – Specifications

Physical Characteristics

• Color: Black
• Material: PC + Aluminium
• USB: Type-C, USB 2.0
• Headphone Jack: 3.5mm

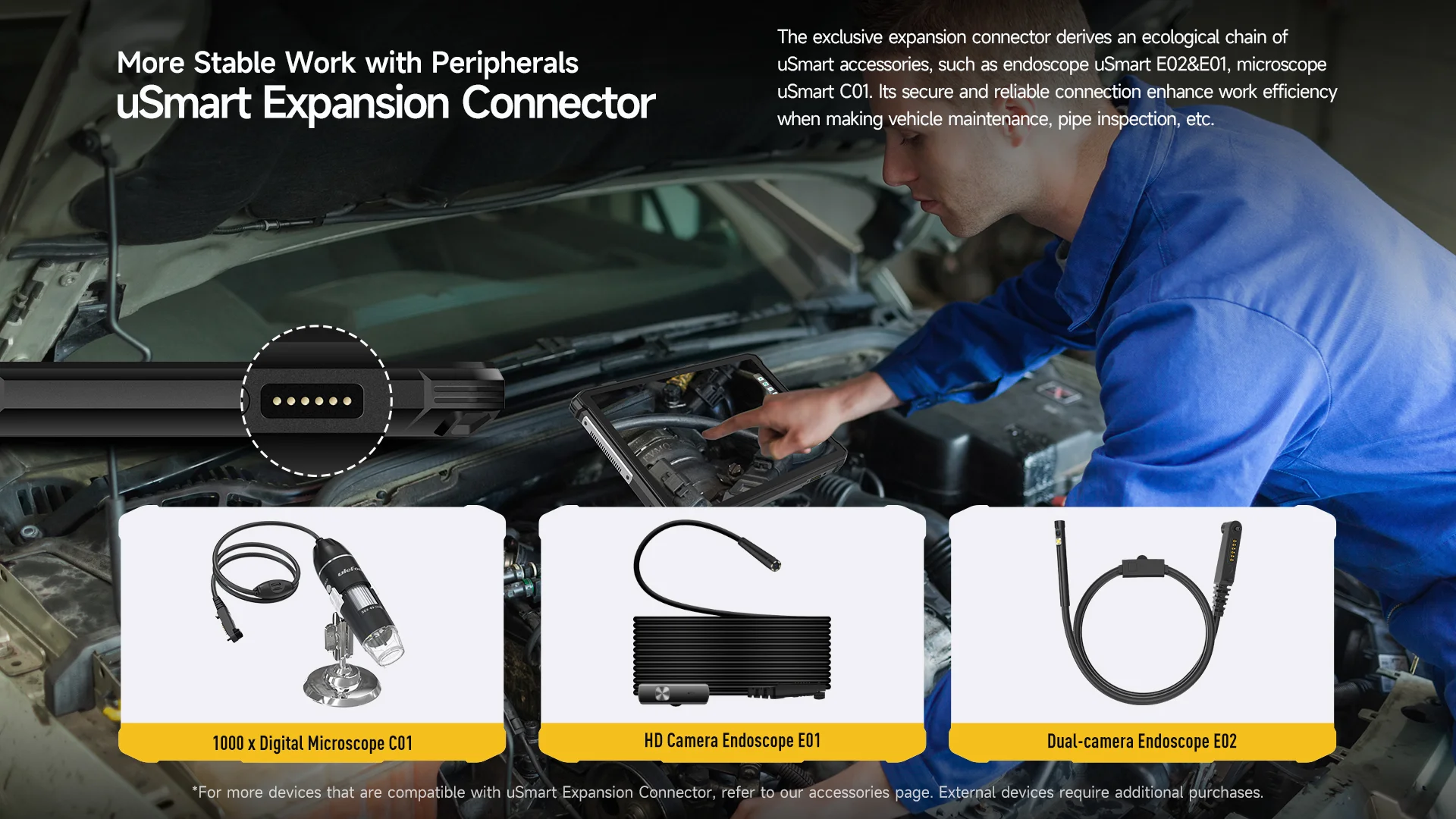

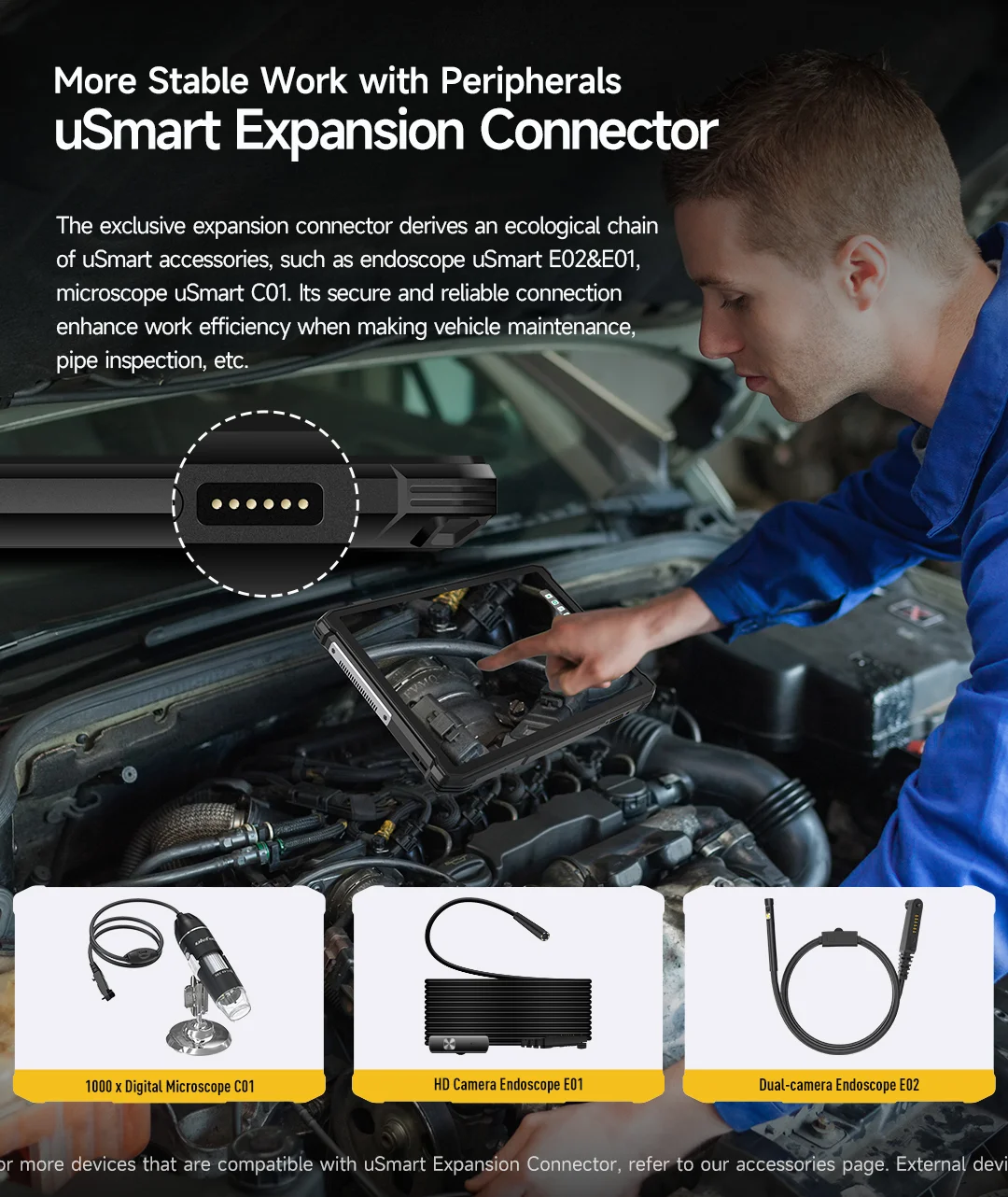

• Expansion Connector: uSmart 2.0 (supports accessories & simultaneous charging)
• Card Slots: 1× Nano-SIM + 1× Nano-SIM + 1× microSD
• Keys: Power (Fingerprint), Volume, Projector Control, Custom Key

Size & Weight

• Product Size: 269.7 × 179.5 × 27.8 mm
• Weight: 1600 g
• Package Size: 205 × 297.8 × 81 mm

Ruggedness

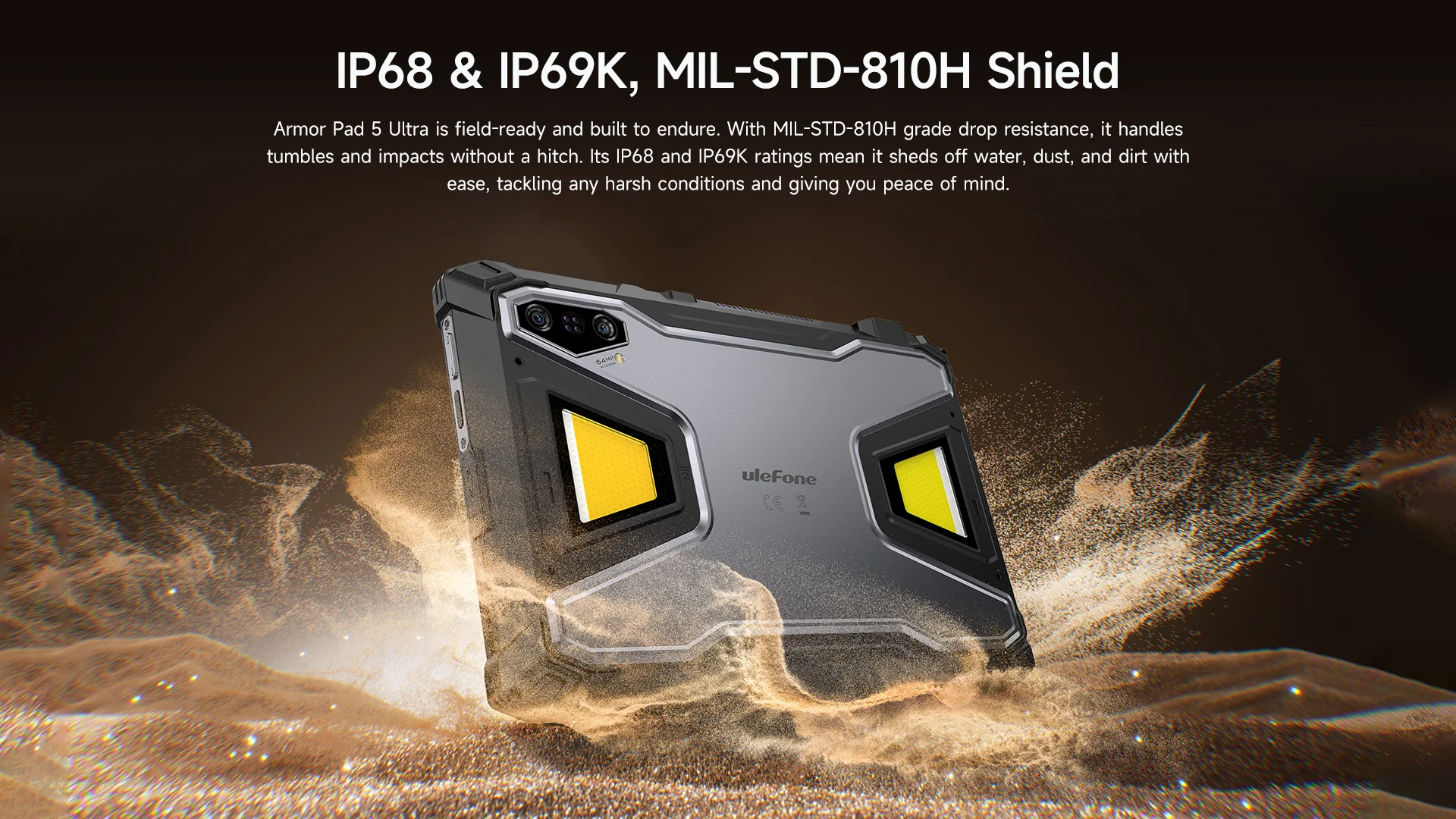

• Certifications: IP68 / IP69K / MIL-STD-810H
• Water Resistance: 2m up to 30 minutes
• Drop Resistance: Up to 1.5 m
• Working Temperature: -20℃ to 55℃

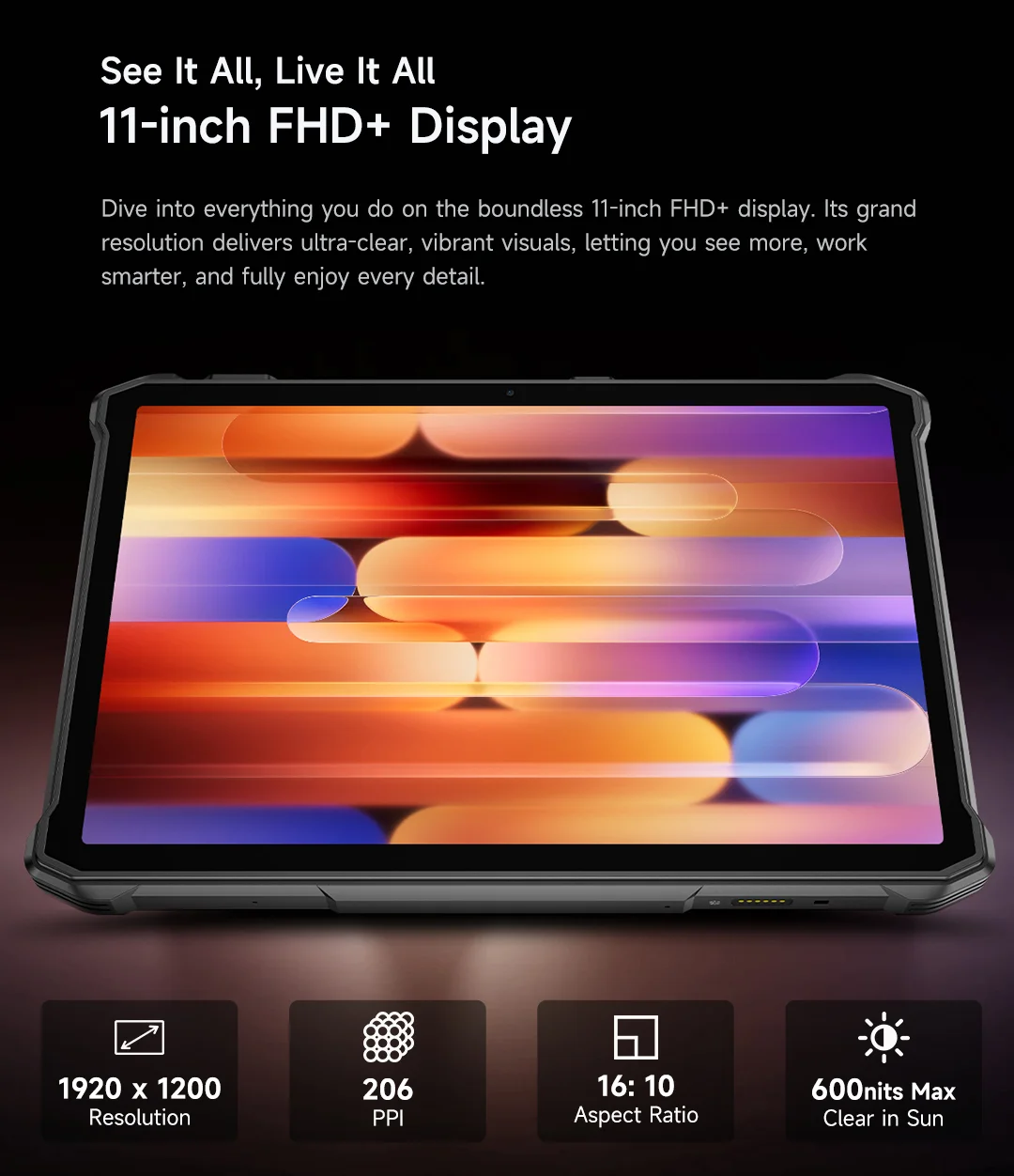

Display

• Size: 11-inch
• Resolution: 1920 × 1200 FHD+
• Aspect Ratio: 16:10
• PPI: 206
• Brightness: 600 nits (peak)
• Color Depth: 10-bit
• Refresh Rate: 90Hz
• Screen-to-Body Ratio: 87%
• Multi-Touch: 10 points

Processor

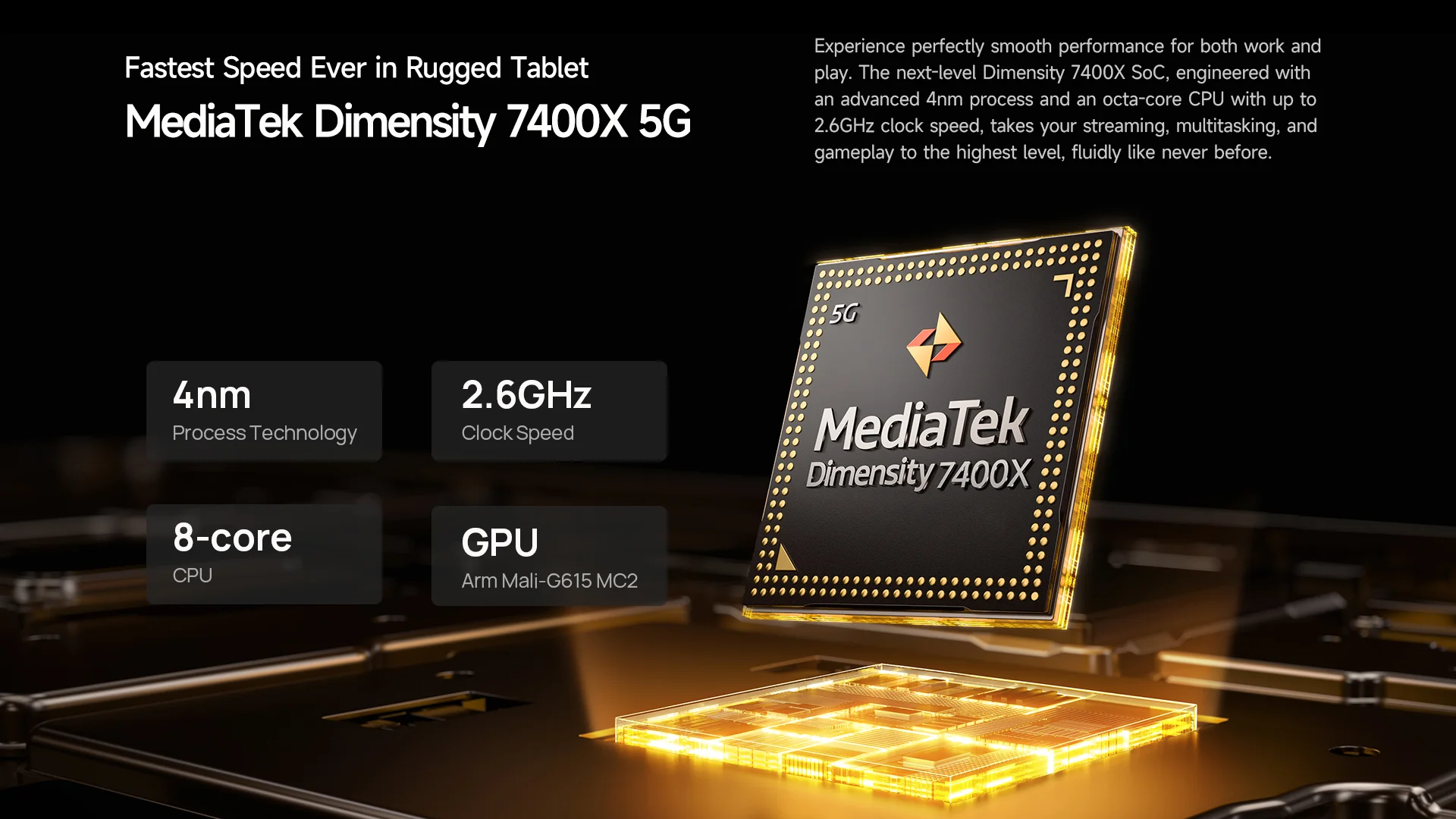

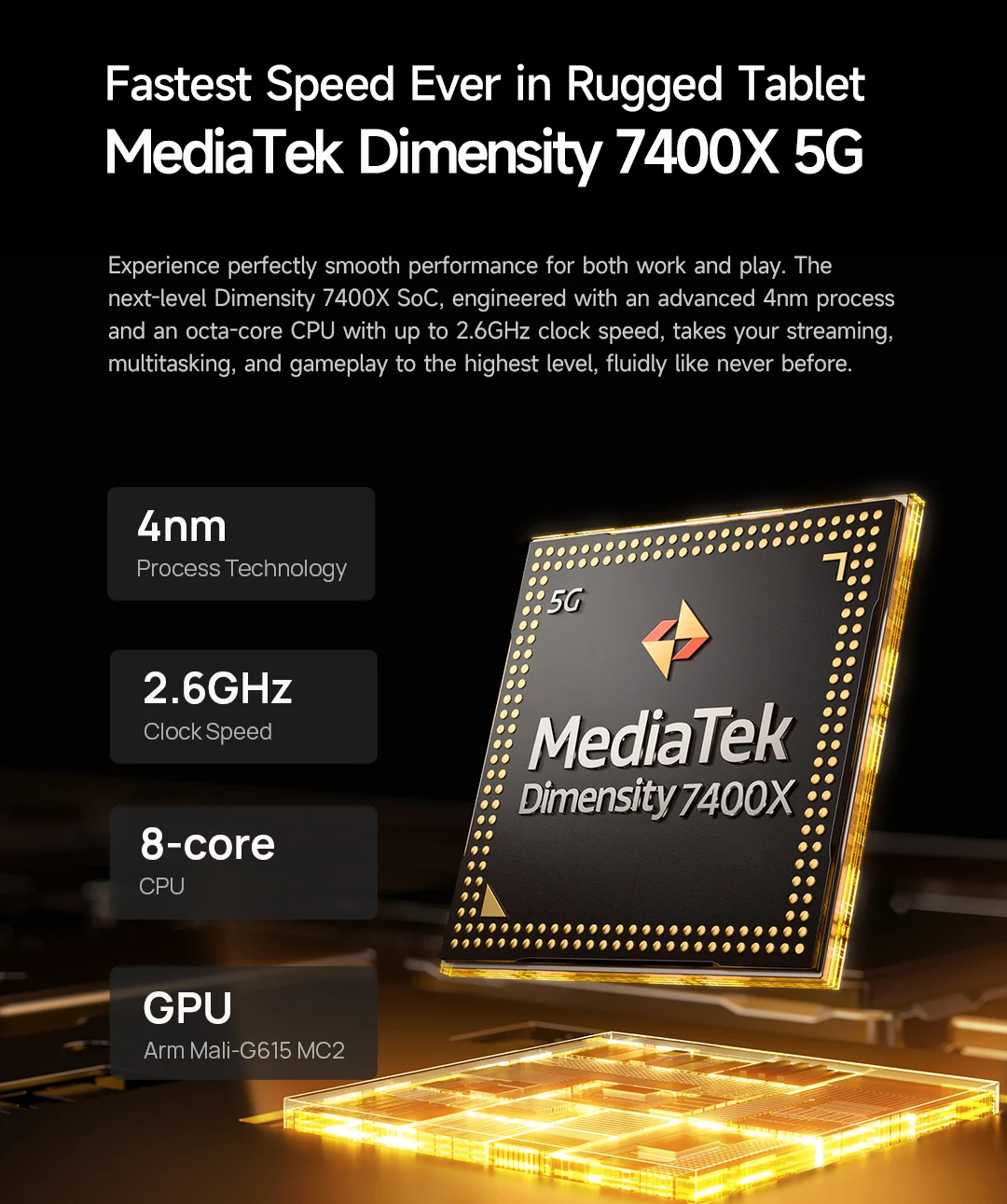

• CPU: MediaTek Dimensity 7400X (4nm)
• Main Frequency: 2.6GHz
• Cores: 8-core (4× A78 + 4× A55)
• GPU: Mali-G615 MC2 @ 1.0GHz
• AI Unit: MediaTek NPU 655

RAM & Storage

• RAM: 12GB LPDDR5 + up to 20GB Dynamic RAM
• Storage: 512GB UFS 3.1
• Expandable: Up to 2TB (microSD)

Rear Cameras

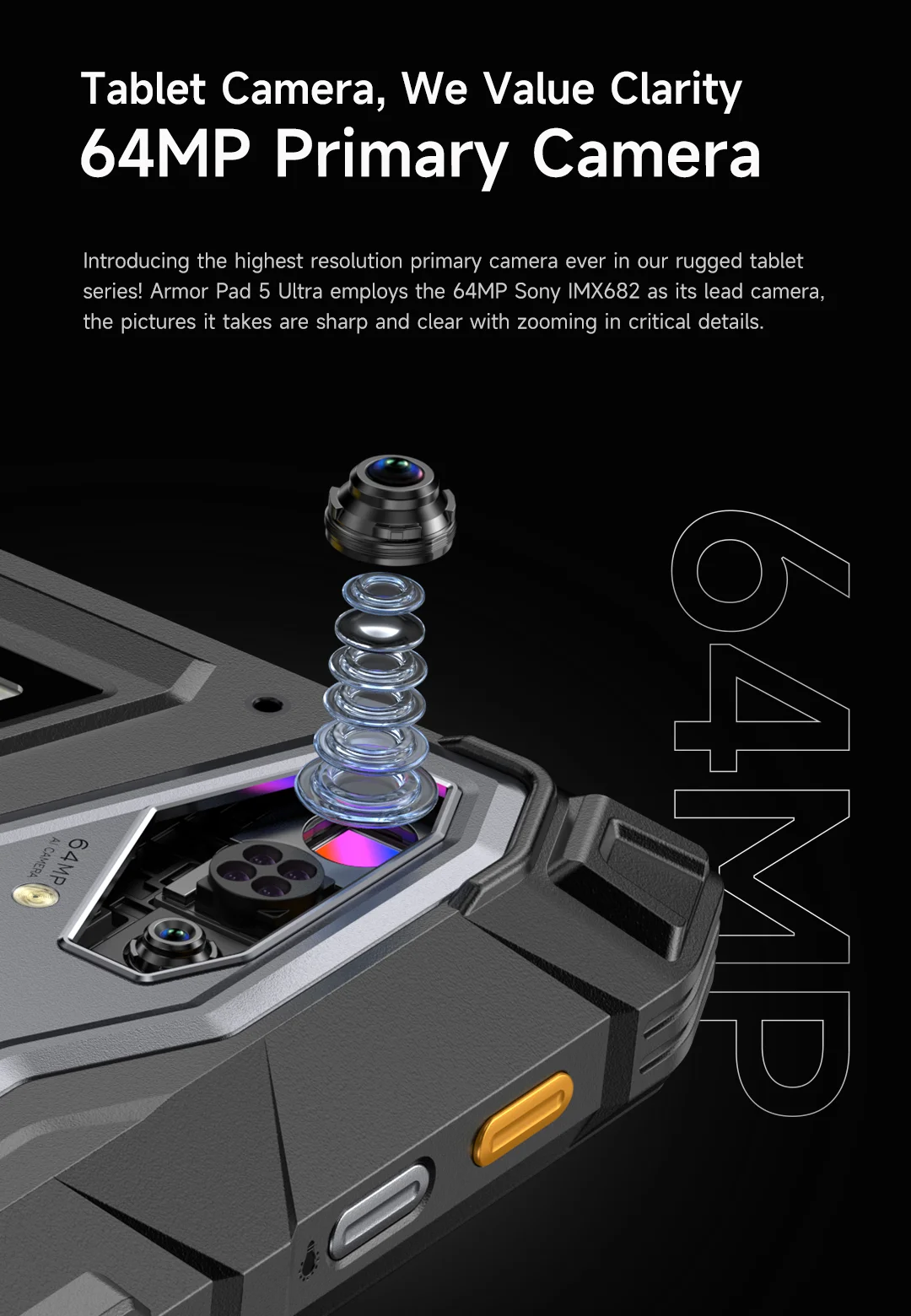

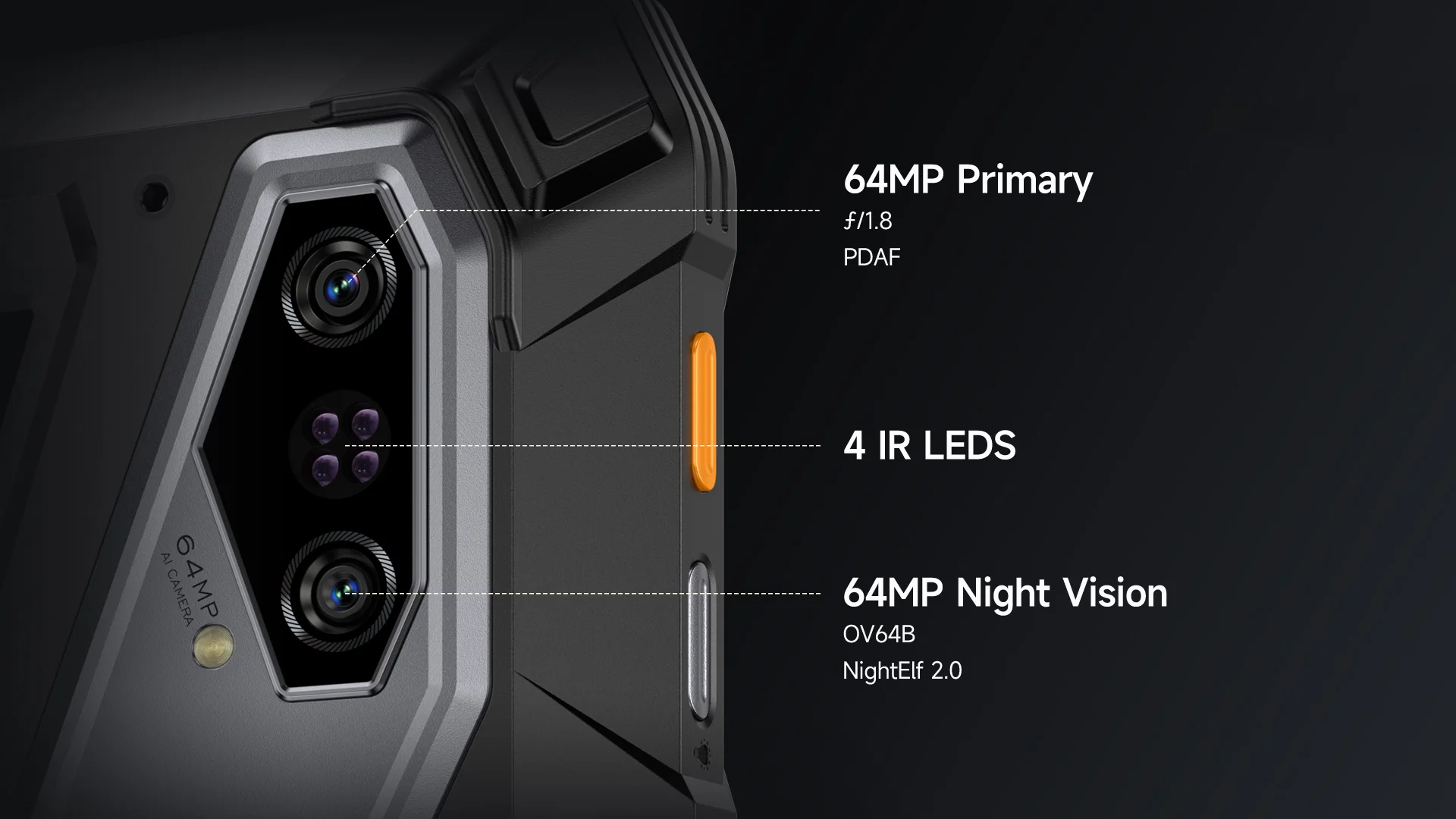

• Main Camera: 64MP Sony IMX682, ƒ/1.8

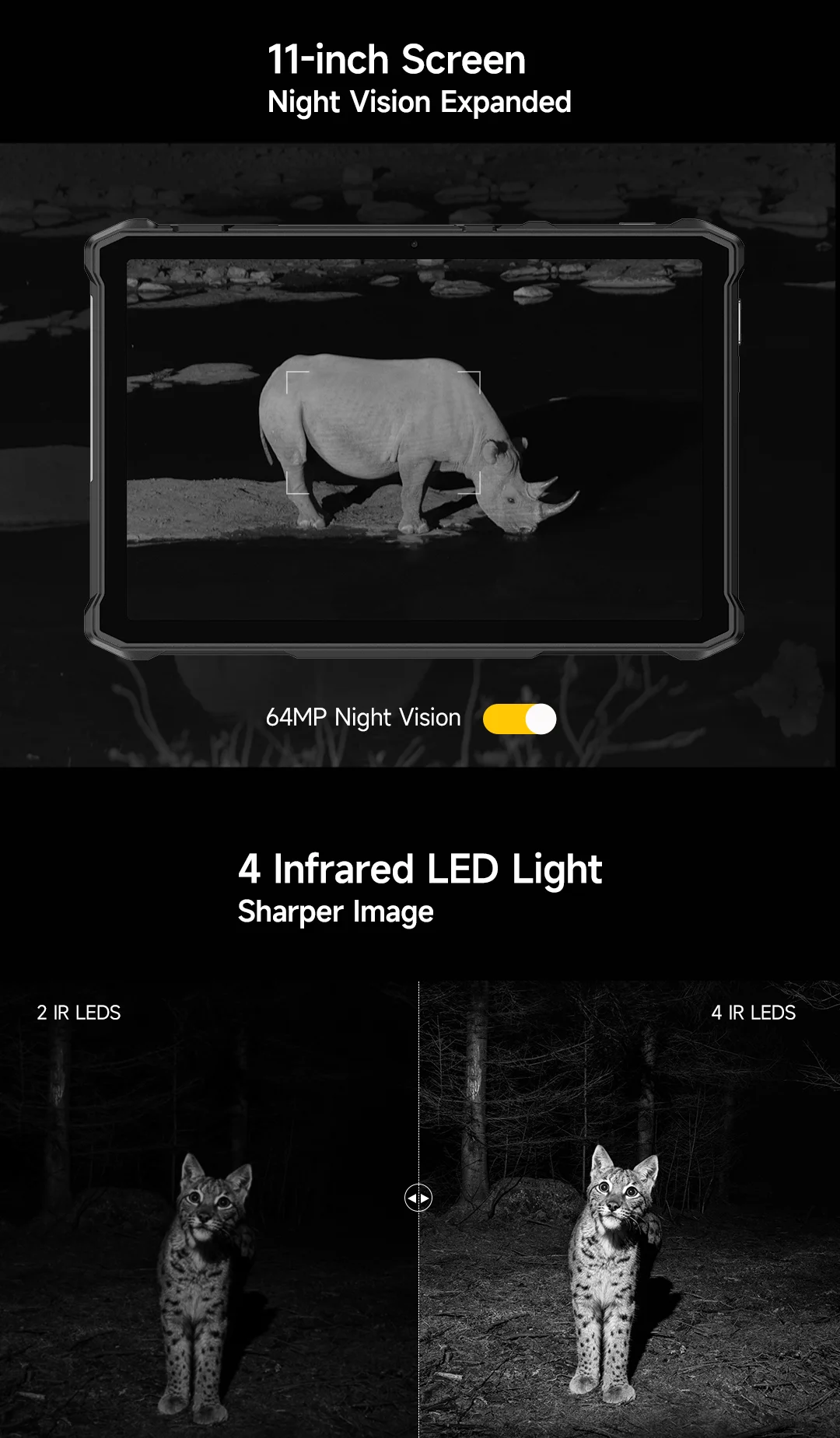

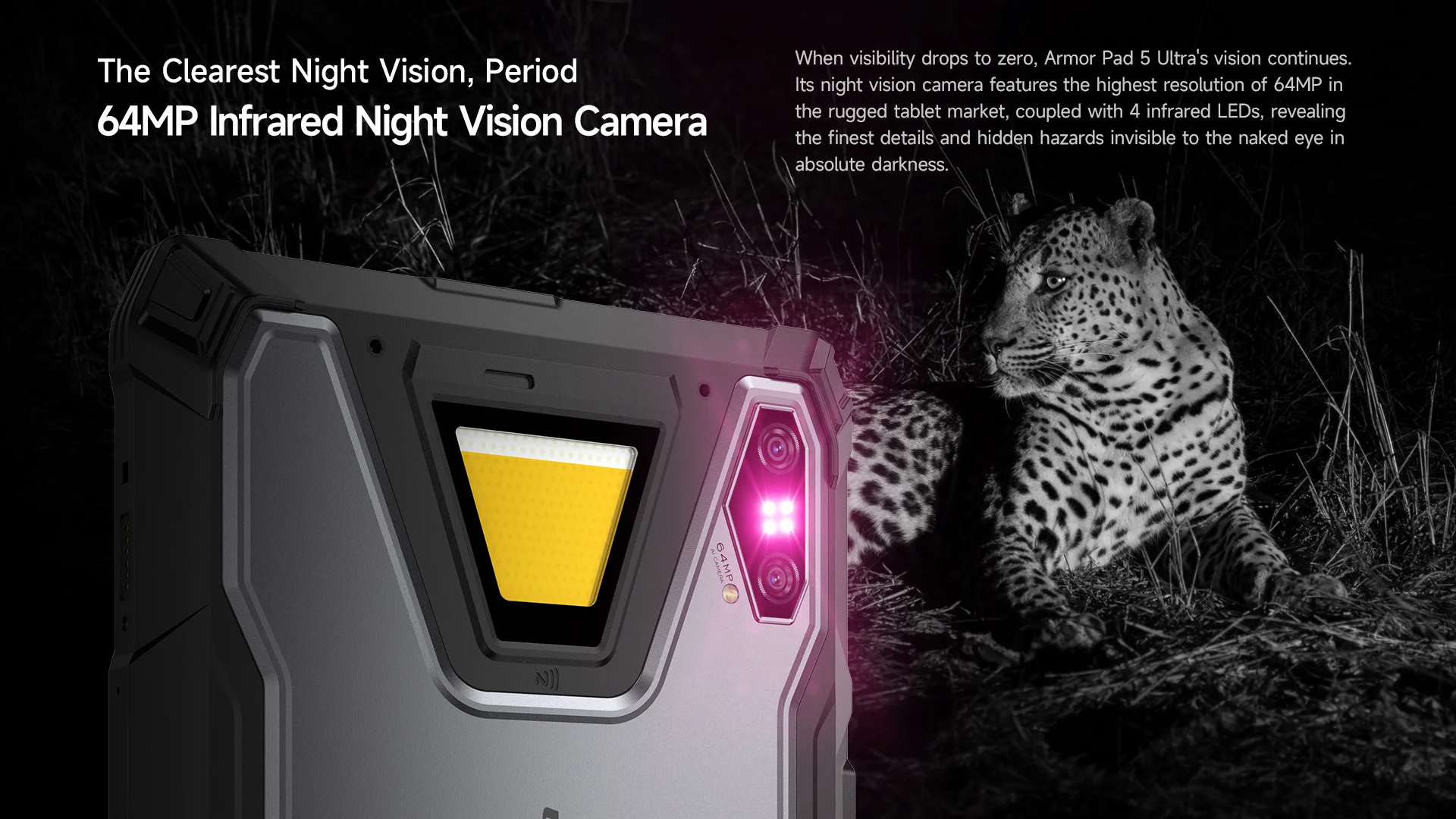

• Night Vision Camera: 64MP OV64B, ƒ/1.79
• Flash: LED Flash
• Video: 4K 30fps / 2K / 1080P / 720P

Front Camera

• Resolution: 32MP Samsung GD1, ƒ/2.45
• Video: 1080P / 720P / 480P / CIF (30fps)

Battery & Charging

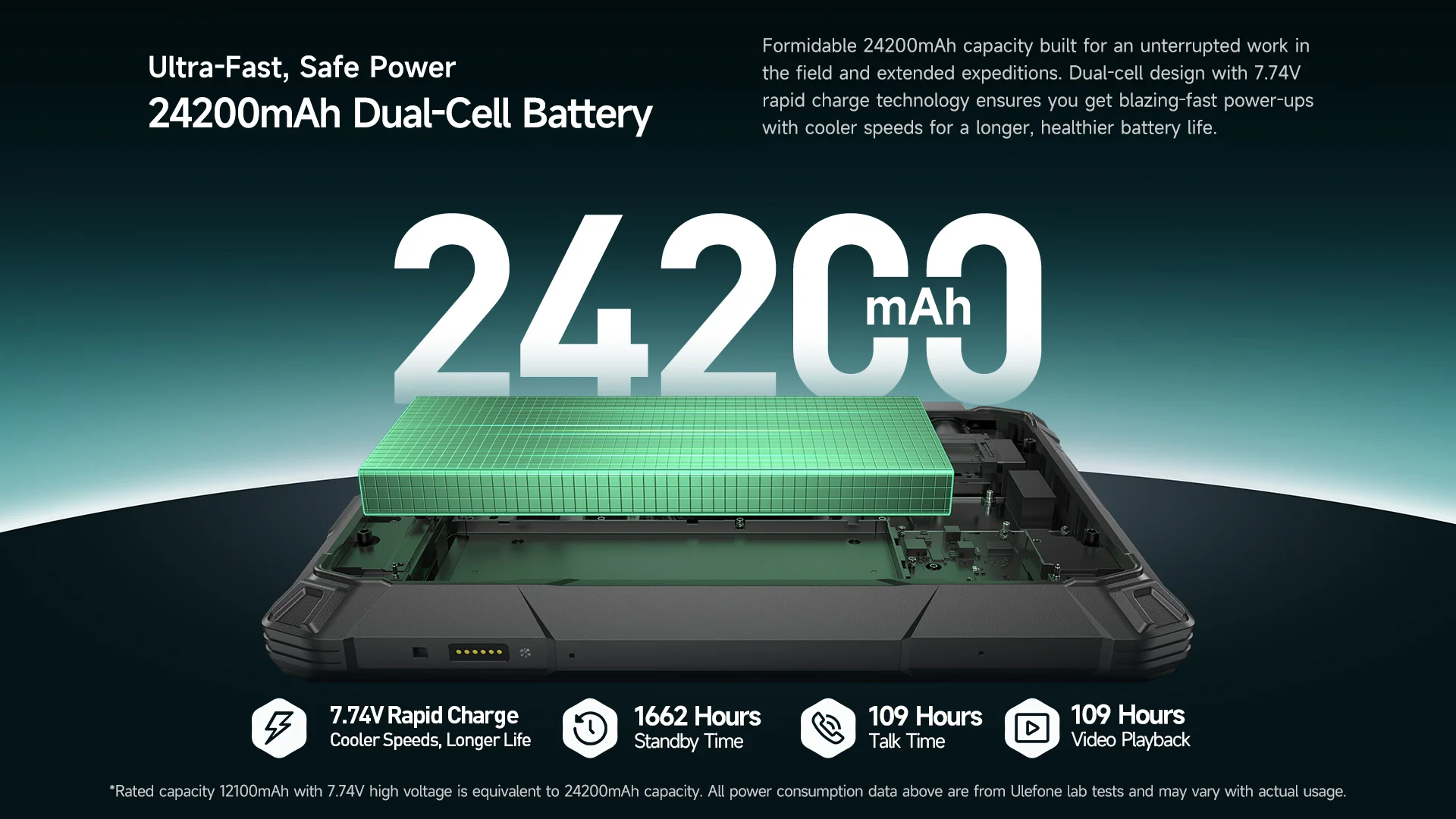

• Capacity: 24200mAh (12100mAh @ 7.74V)

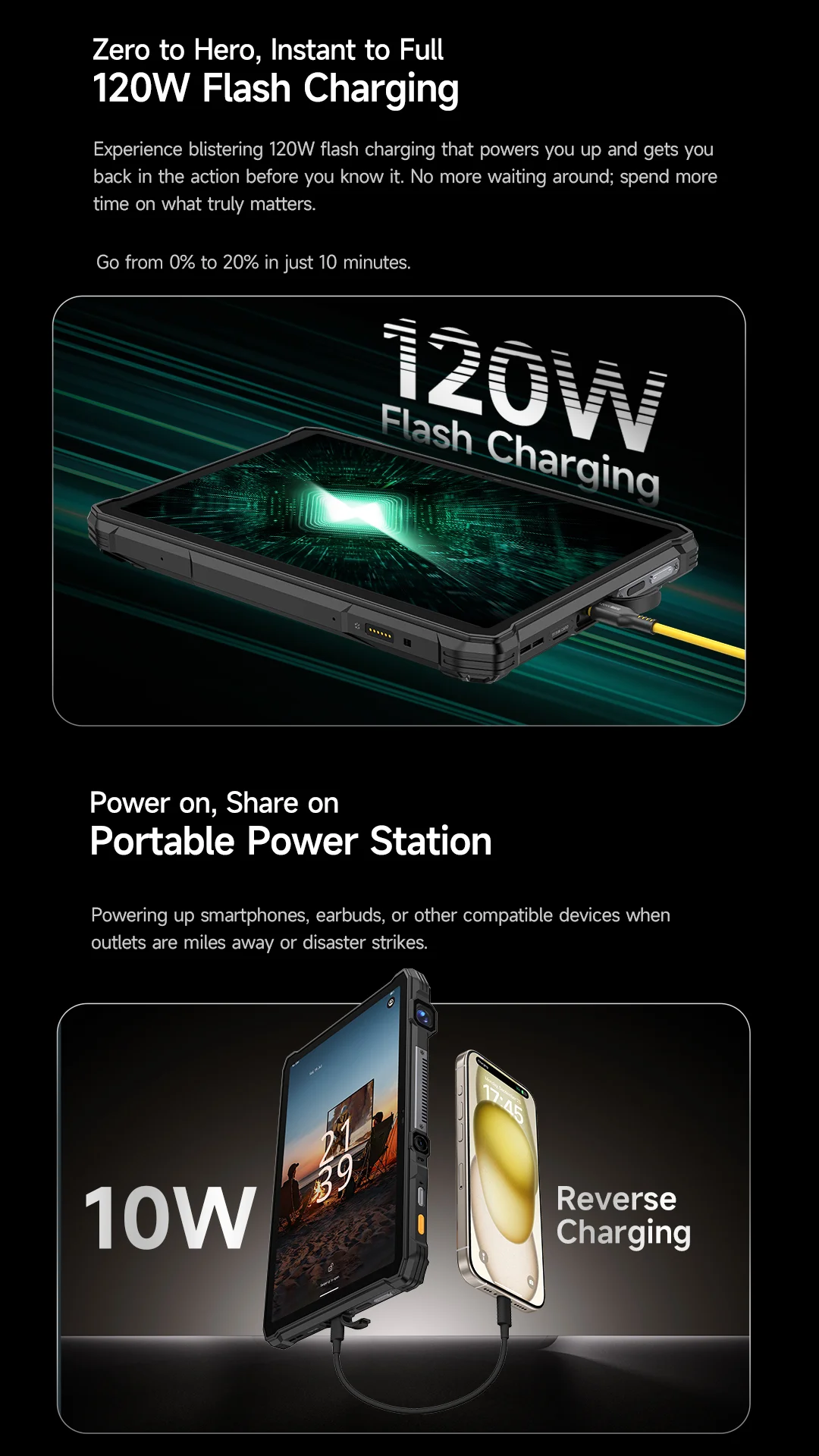

• Charging: 120W (20V/6A)
• Reverse Charging: 10W wired
• Standby Time: 1662 hours
• Talk Time: 109 hours

Network & Connectivity

• SIM: Dual Nano-SIM + microSD
• Cellular: 5G / 4G / 3G / 2G
• WiFi: WiFi 6E (2.4/5/6GHz)
• Bluetooth: 5.4
• Navigation: GPS, GLONASS, Beidou, Galileo, QZSS, NavIC

Audio

• Speakers: Dual 1326 BOX speakers
• Max Power: 3W
• Smart PA: AW88399

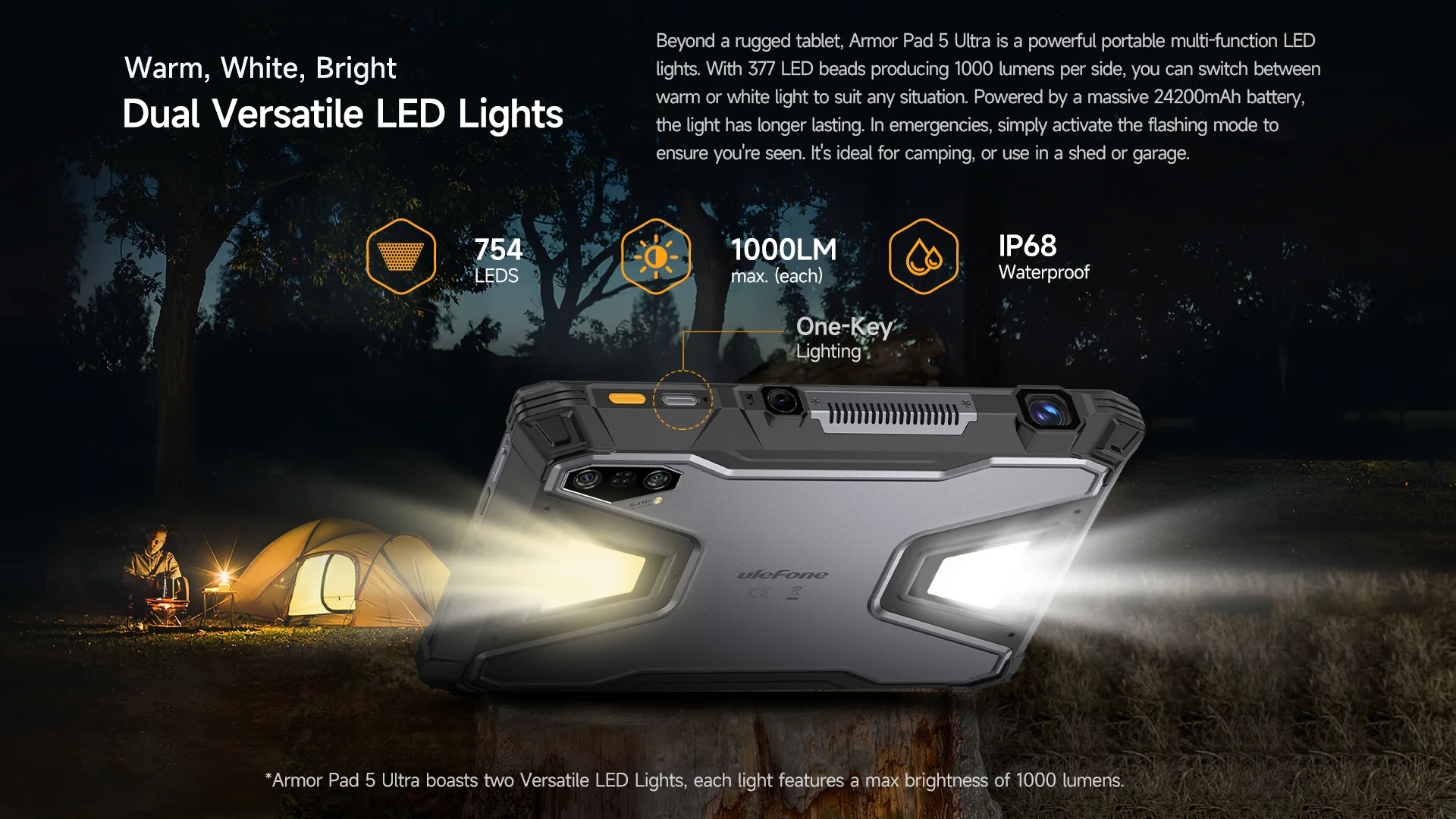

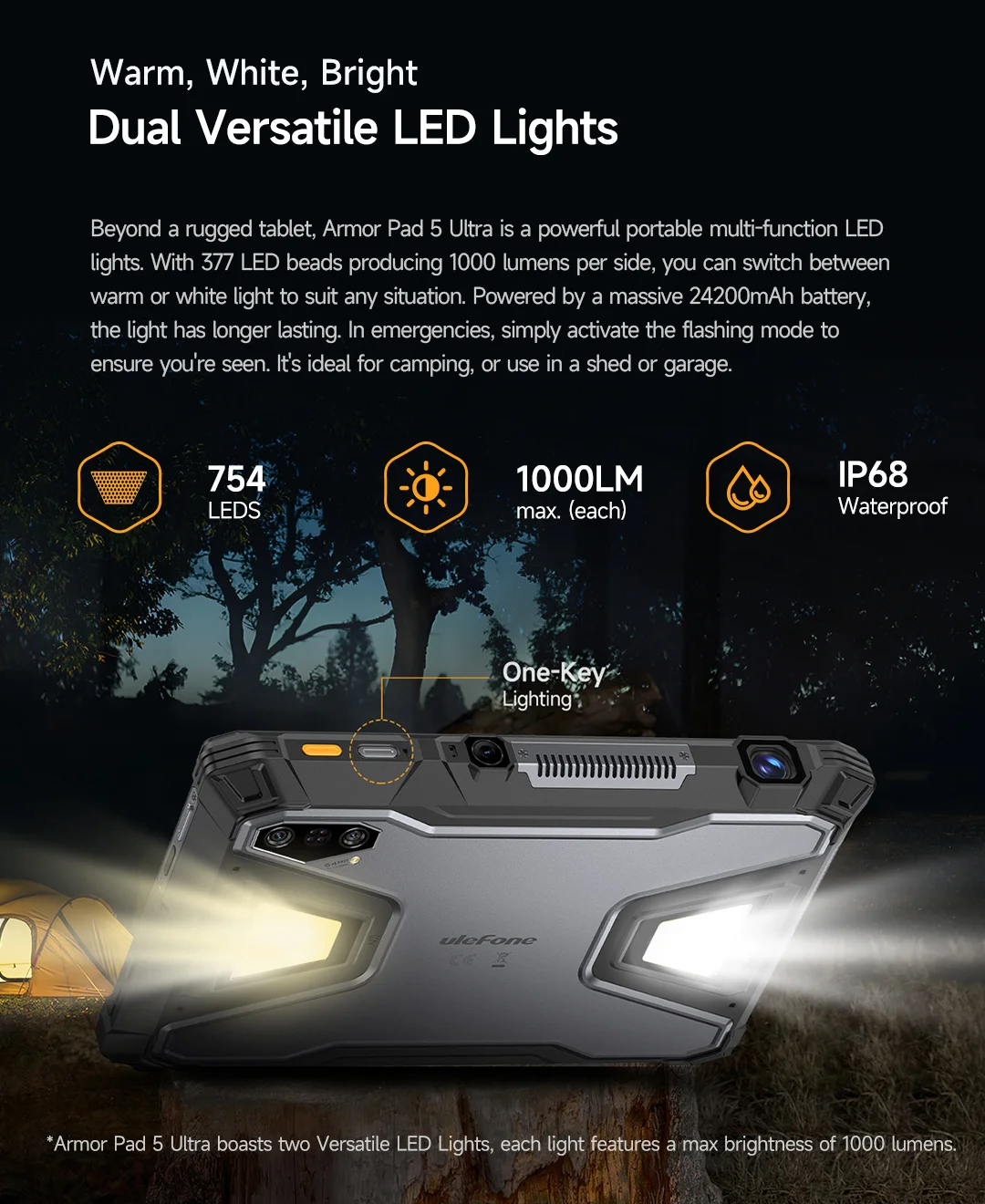

Versatile LED Light

• LED Beads: 754
• Brightness: 1000 lumens max
• Power: 6.8W
• Modes: Warm/White/Mixed, Timer (5–30 mins), SOS, Always-on

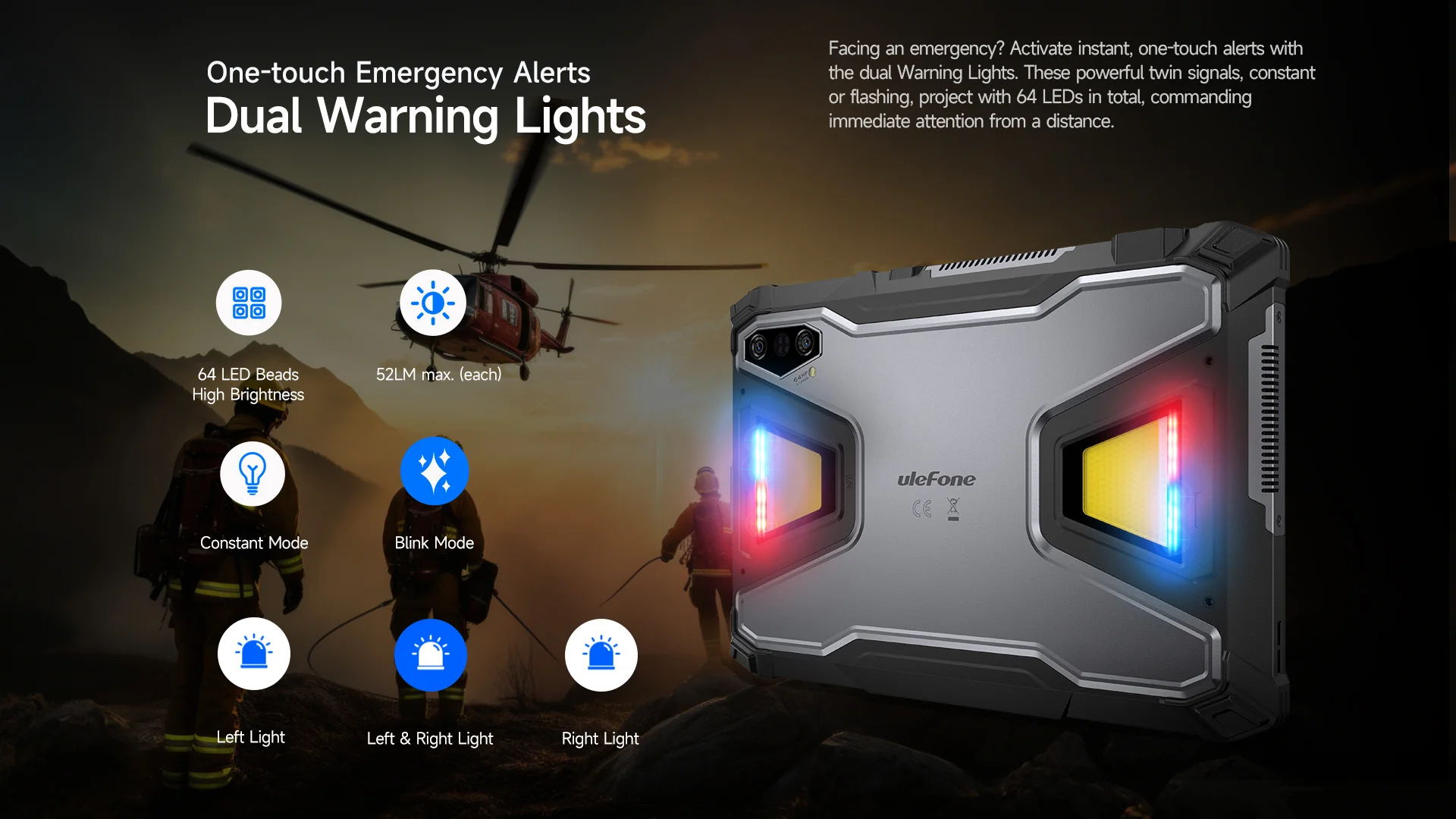

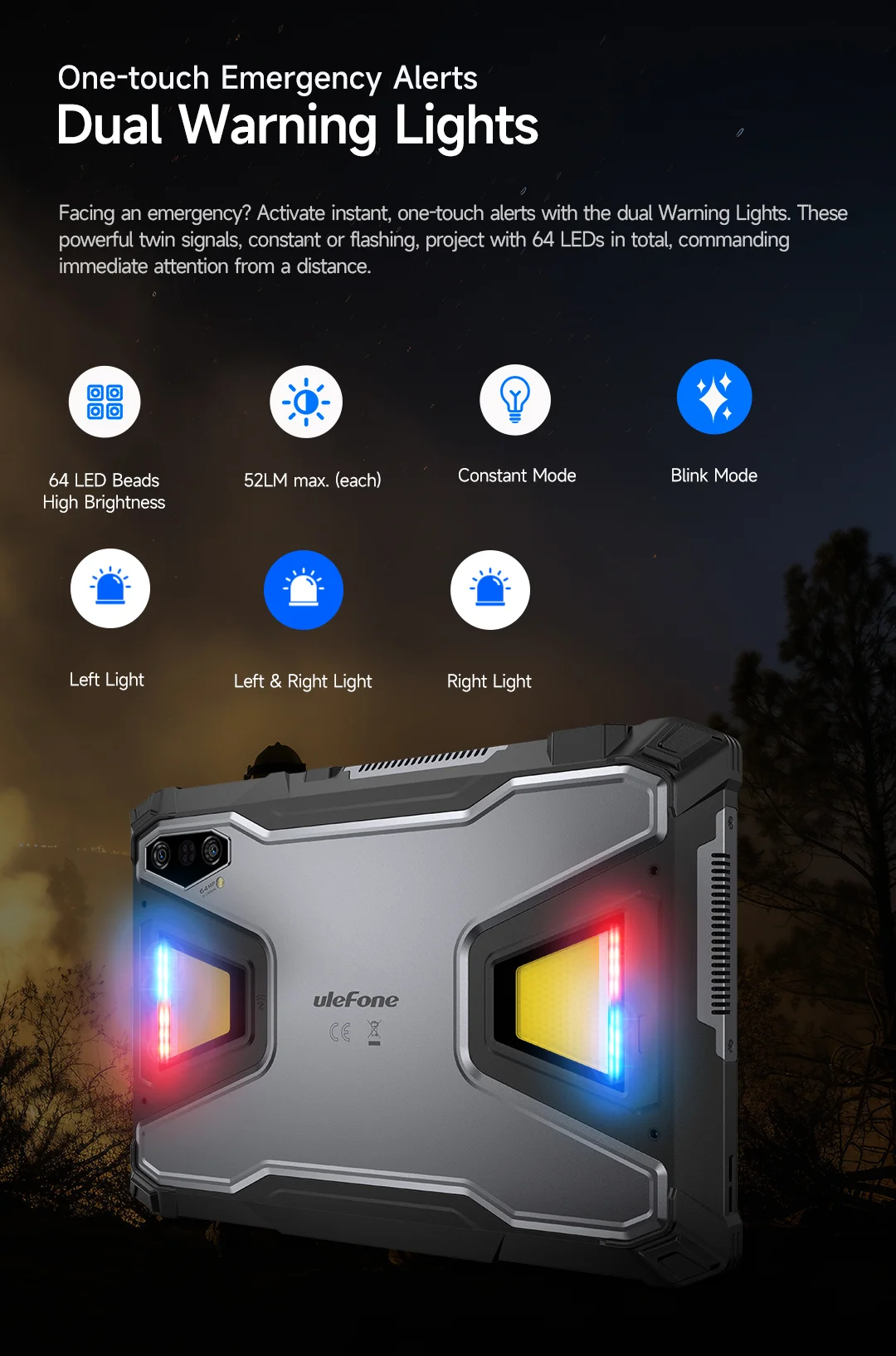

Warning Light

• LED Beads: 64
• Effects: Red, Blue, Red-Blue
• Warning Sounds: Fire, Ambulance, Police

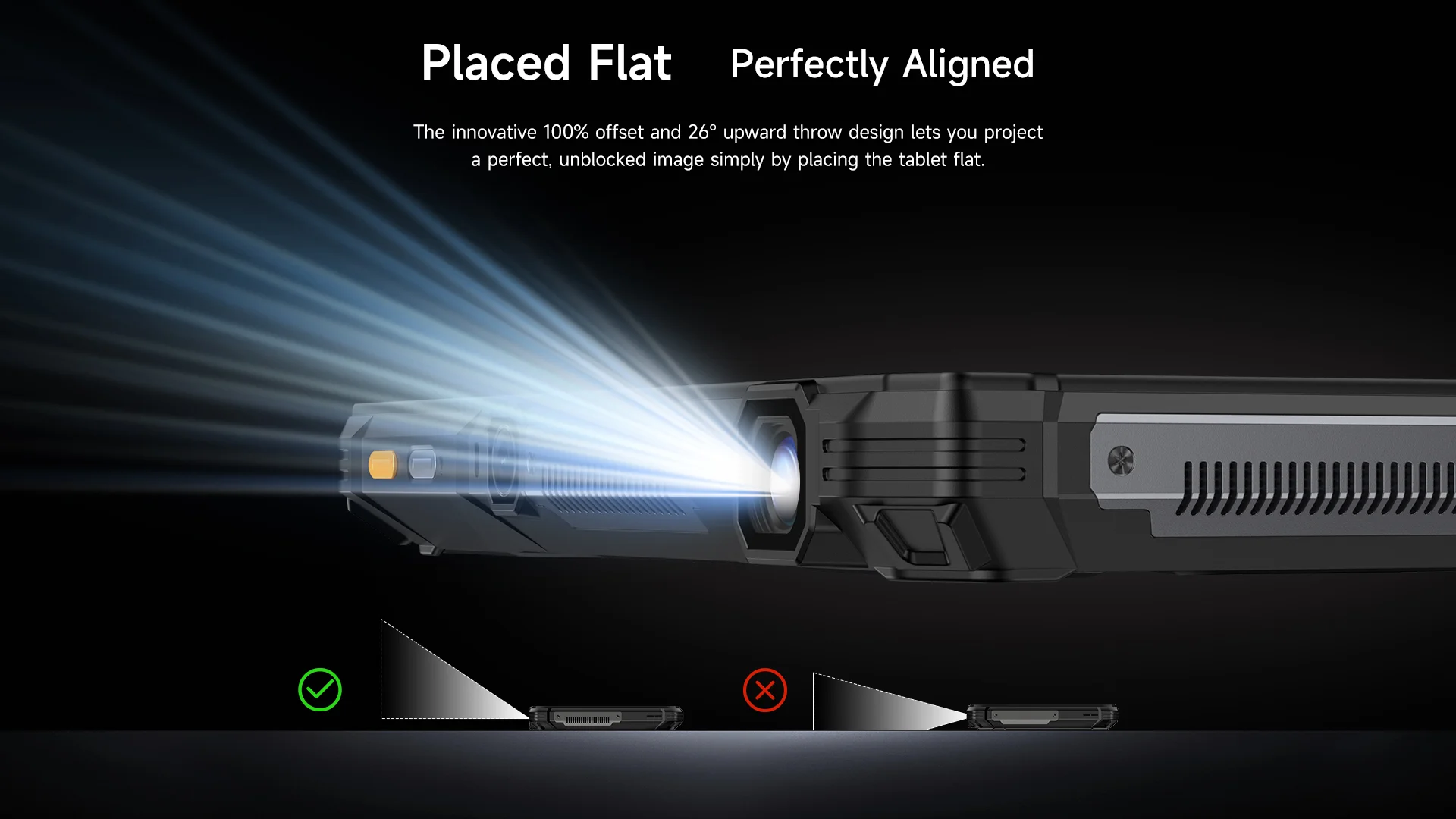

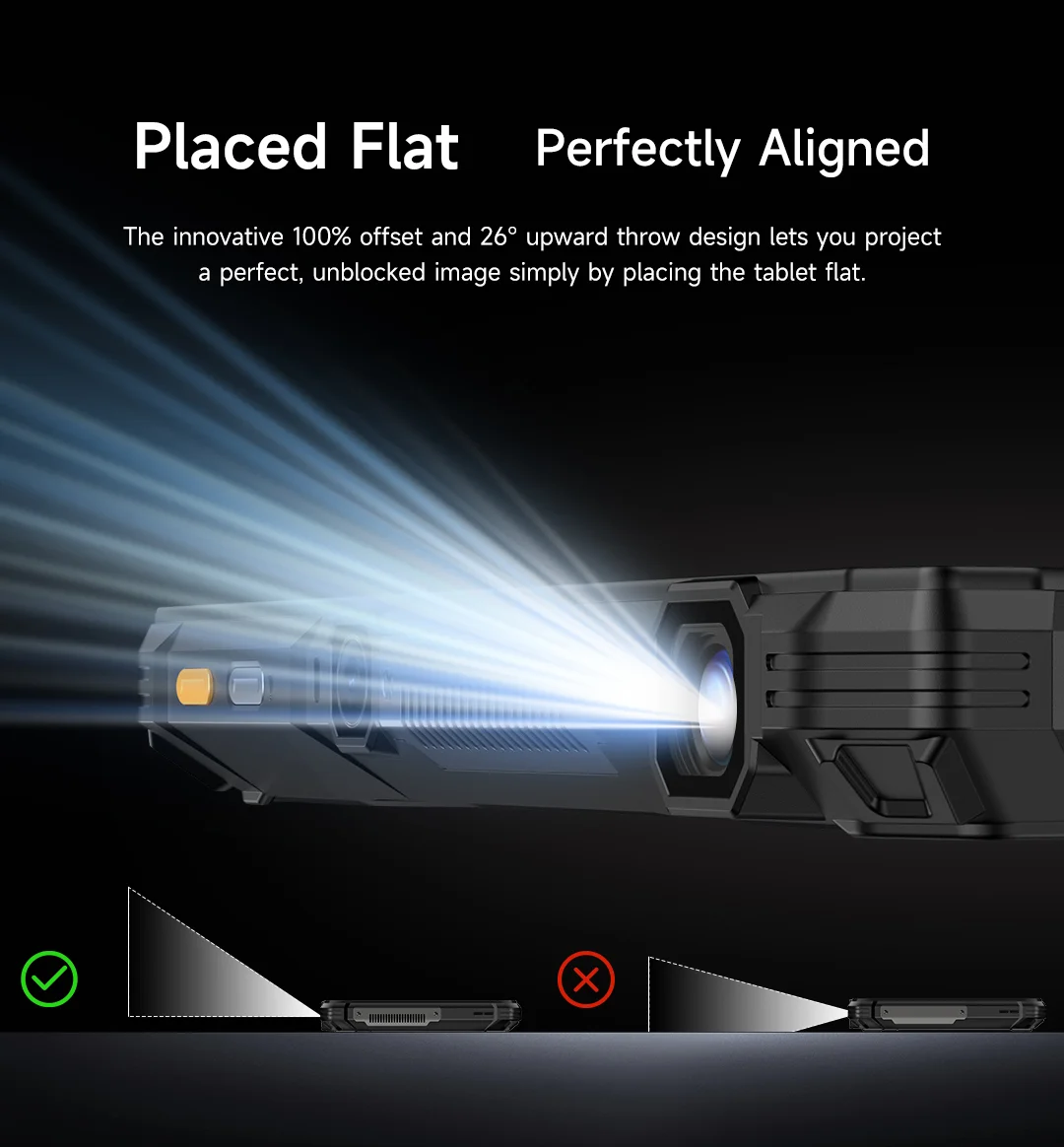

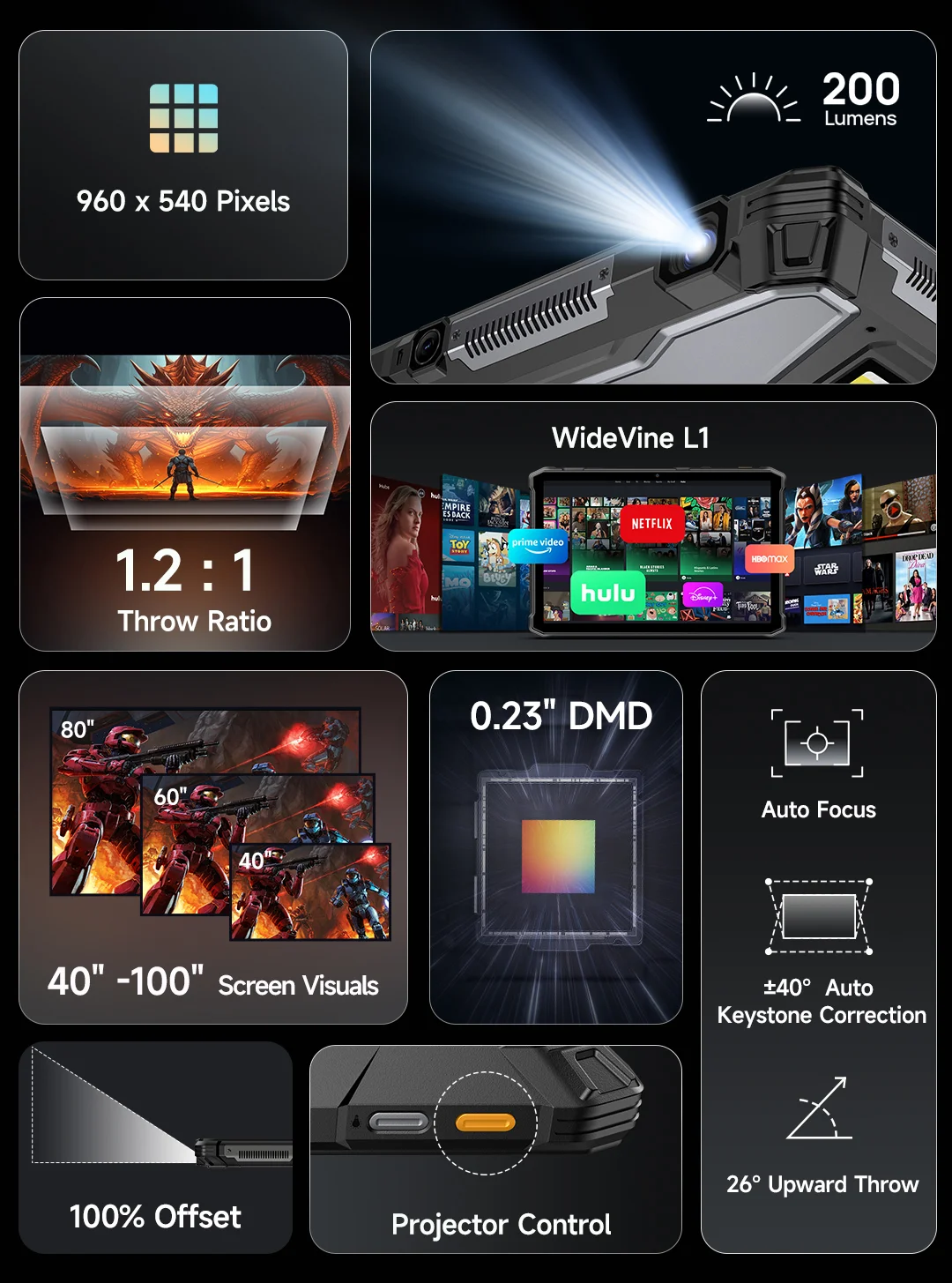

Projector

• Brightness: 200 lumens
• Resolution: 960 × 540
• Throw Ratio: 1.2:1
• Auto Focus & Keystone: Yes (±40°)
• Image Size: 40″–80″

Security

• Fingerprint Unlock: Yes
• Face Unlock: Yes

System

• OS: Android 15
• Languages: Multi-language support
• Pre-installed Apps: Google apps, Projector, Camping Light, Child Mode, Netflix, Toolbox, etc.

Connectivity & Features

• FM Radio: Yes (headset-free)
• OTG: Supported
• NFC: Supported
• Sensors: Gravity, Light, Acceleration, Gyro, Geomagnetic, Air Pressure, IR, Step counter, Coulomb counter
• Special Modes: Underwater Camera, Gloves Mode, Digital Toolbox

Packing List

• Tablet
• 120W AC Charger
• Type-C to Type-C Cable (100cm)
• Pre-installed Protective Film
• Pry Opener + Screwdriver + Screws
• User Manual, Warranty Card, Safety Info

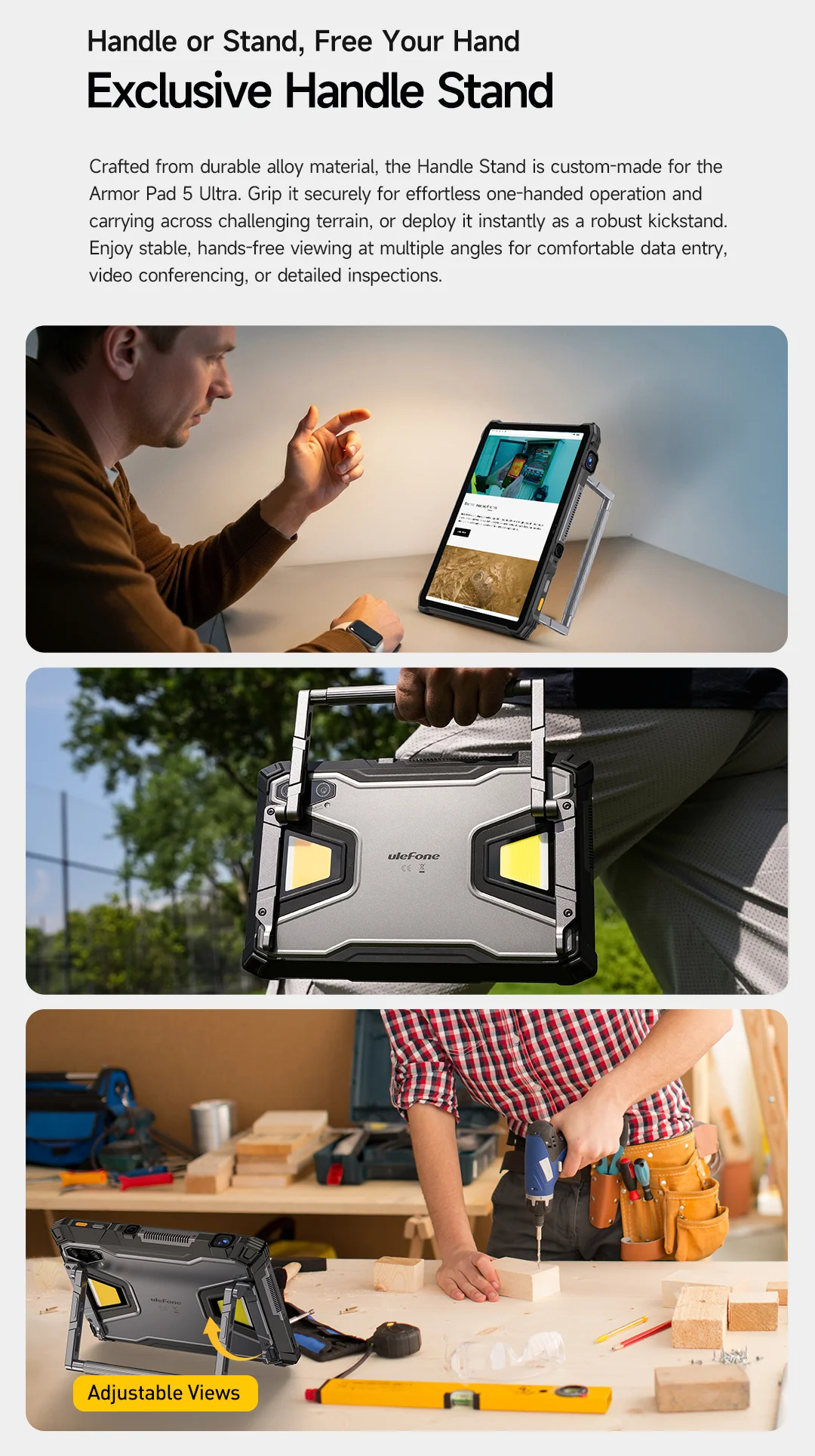

• Handle Stand

Certifications

• CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS, UN38.3, MSDS, IEC62133
