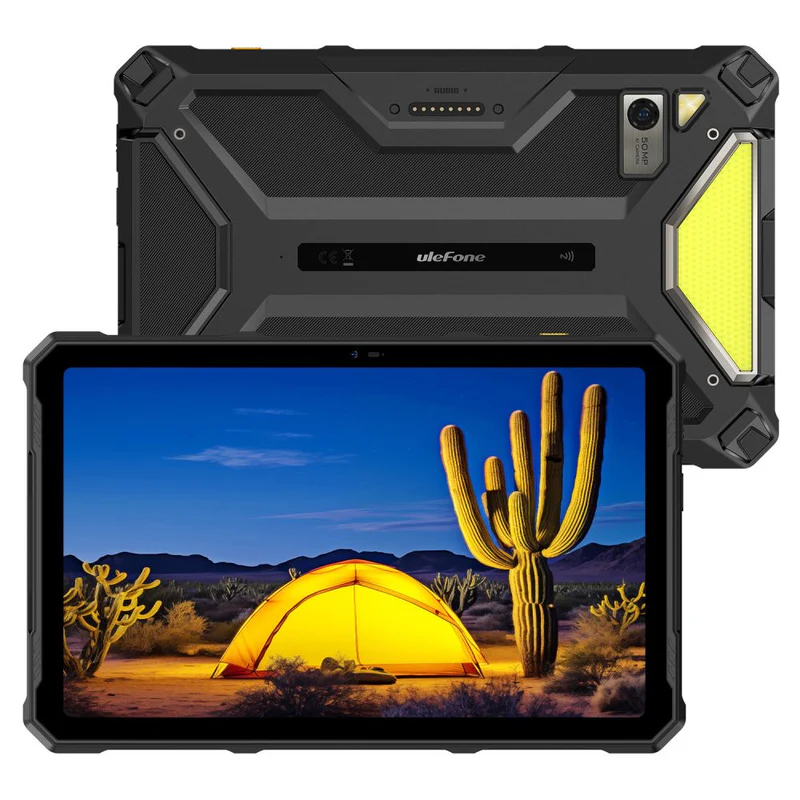

Armor Pad 4 Ultra

Specifications

📱 Ulefone Armor Pad 4 Ultra – Specifications

📏 Size & Weight

Height: 261.7 mm
Width: 166.8 mm
Depth: 14.3 mm
Weight: 834.5 g

*Size and weight vary by configuration and manufacturing process. Actual product may differ.

🔋 Charging & Battery

Capacity: 11,800 mAh (non-removable)
Type: Lithium-ion polymer
Connector: USB Type-C
Fast Charging: Supports 33W fast charge (up to 66W with original charger)
Standby Time: 642 Hours
Talk Time: 64 Hours

*Typical value. Actual capacity and charging performance may vary.

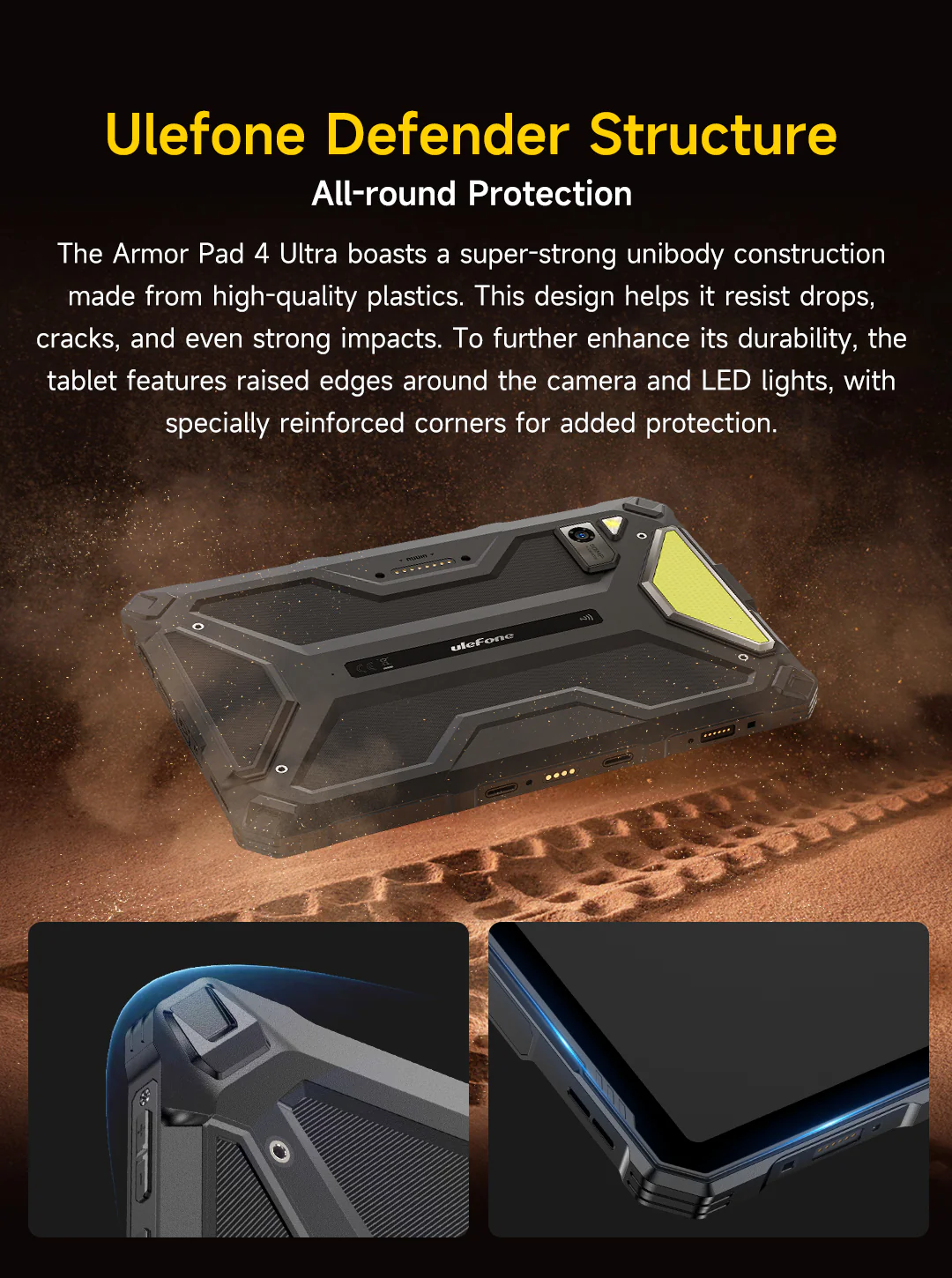

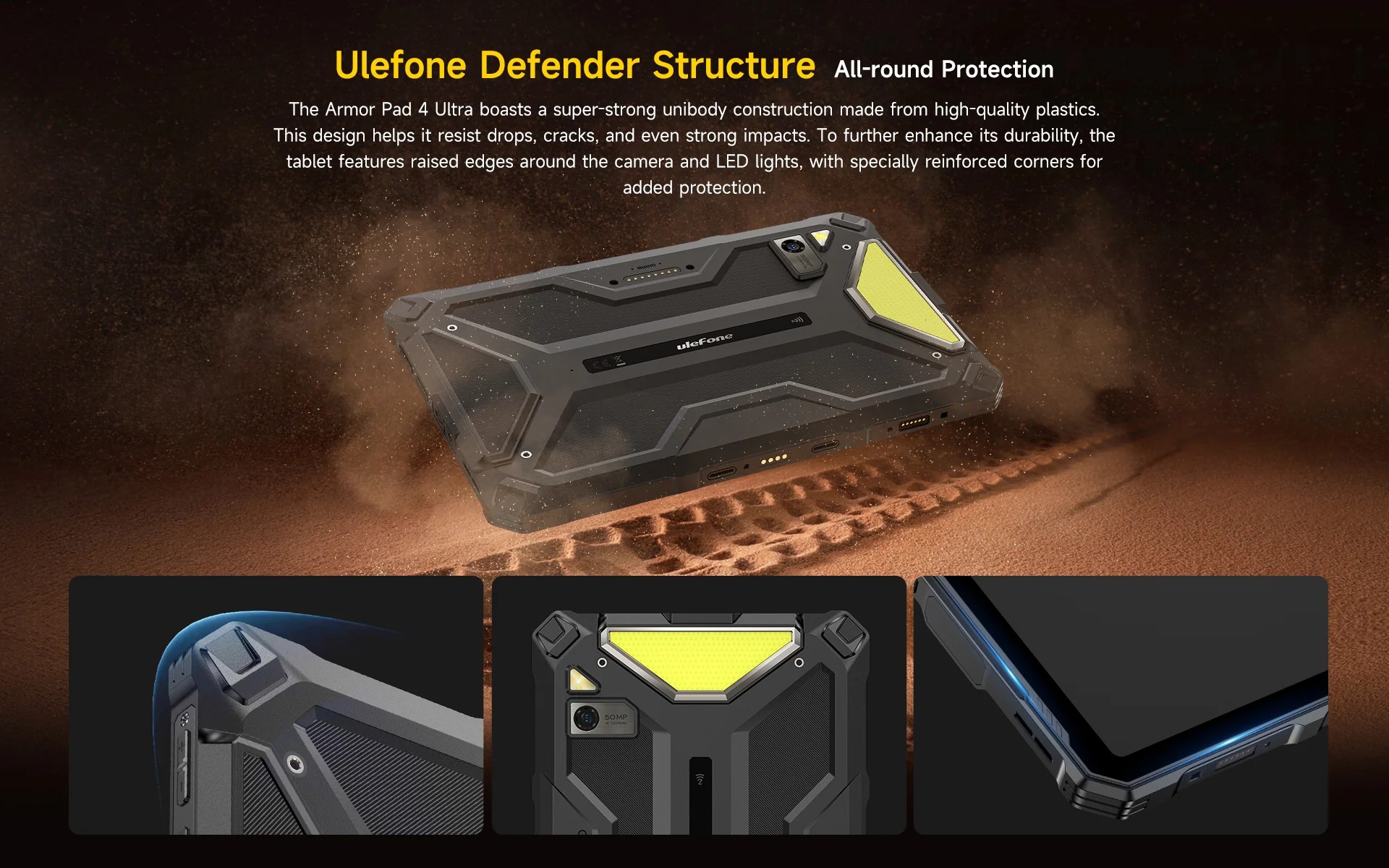

💪 Rugged

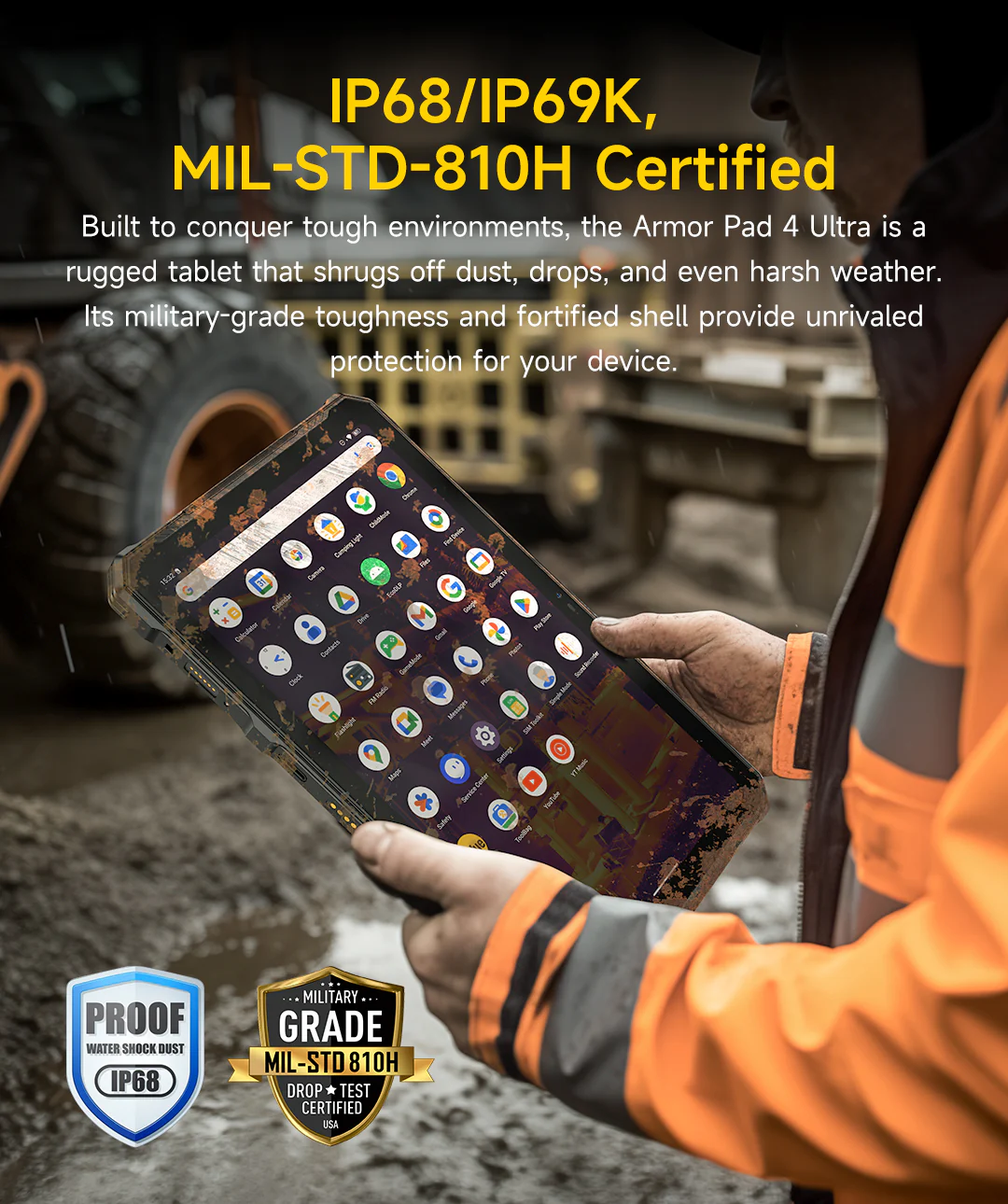

• IP68 – waterproof (1.5m up to 30 minutes)
• IP69K – high pressure & high temp resistant
• MIL-STD-810H Certified

*Splash, water & dust resistance may decrease over time. Not covered under warranty.

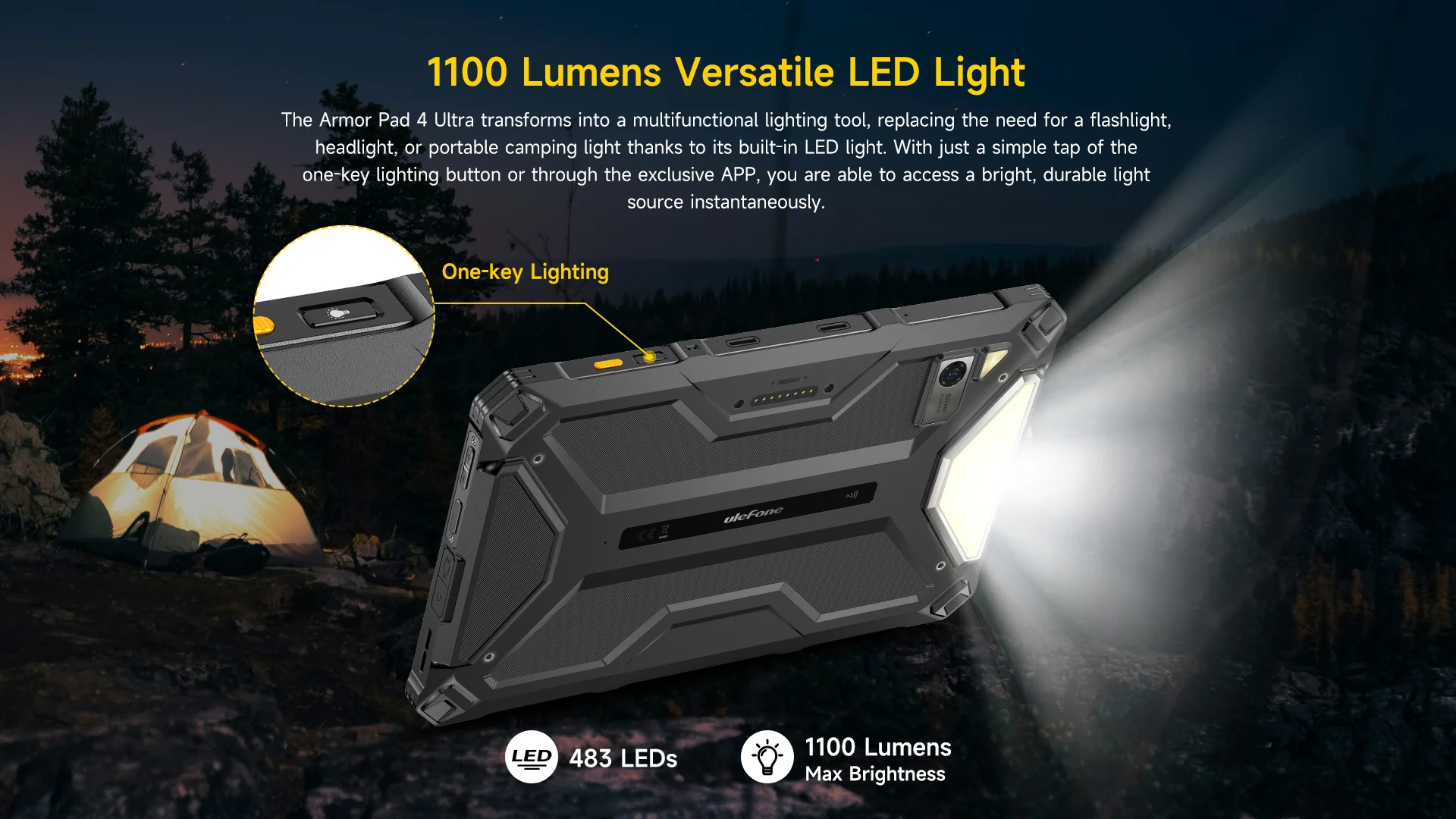

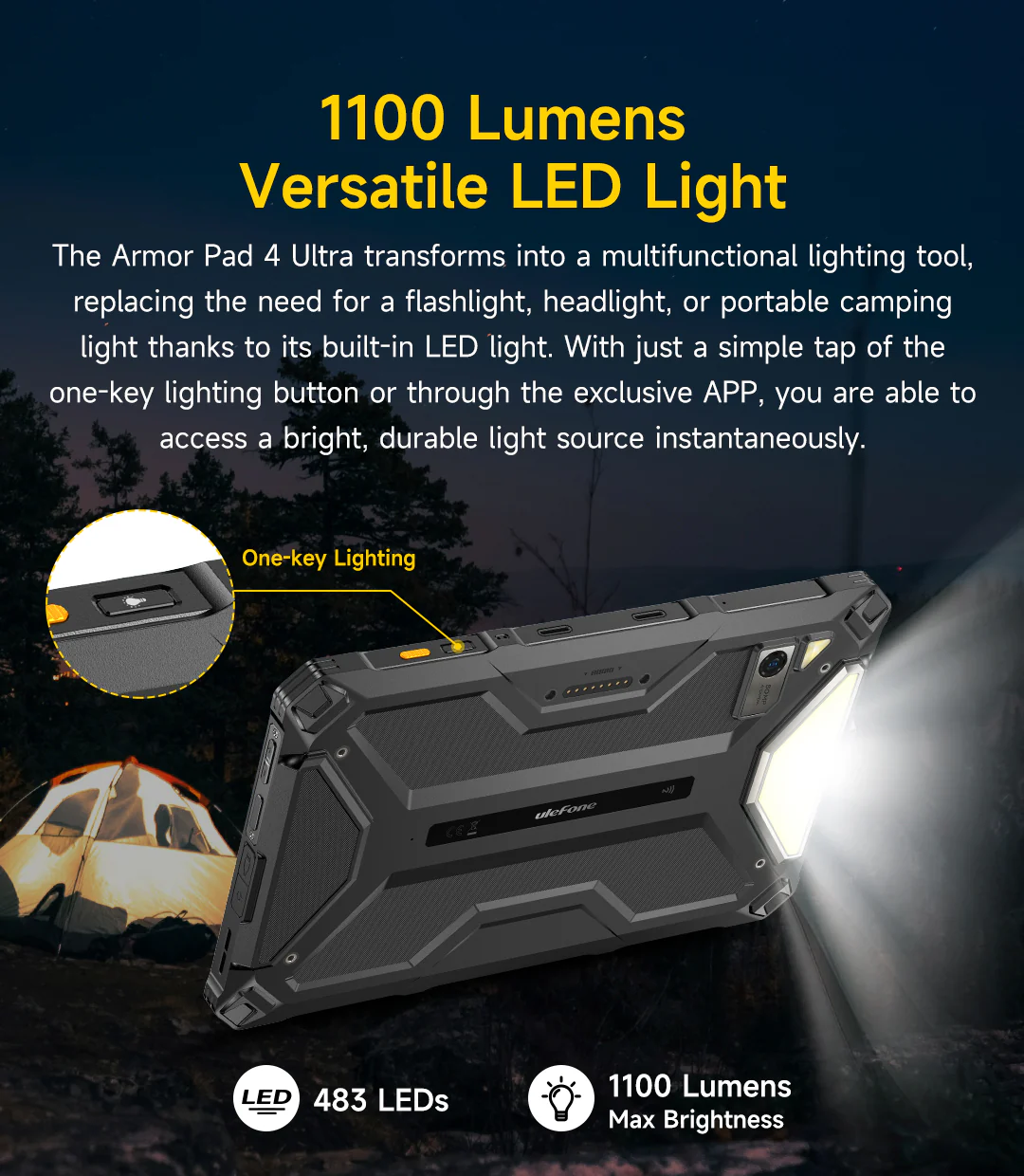

🔦 Versatile Light

• 1100 Max Lumens
• 483 LEDs
• 5.5W Max Power
• IPX8 Waterproof

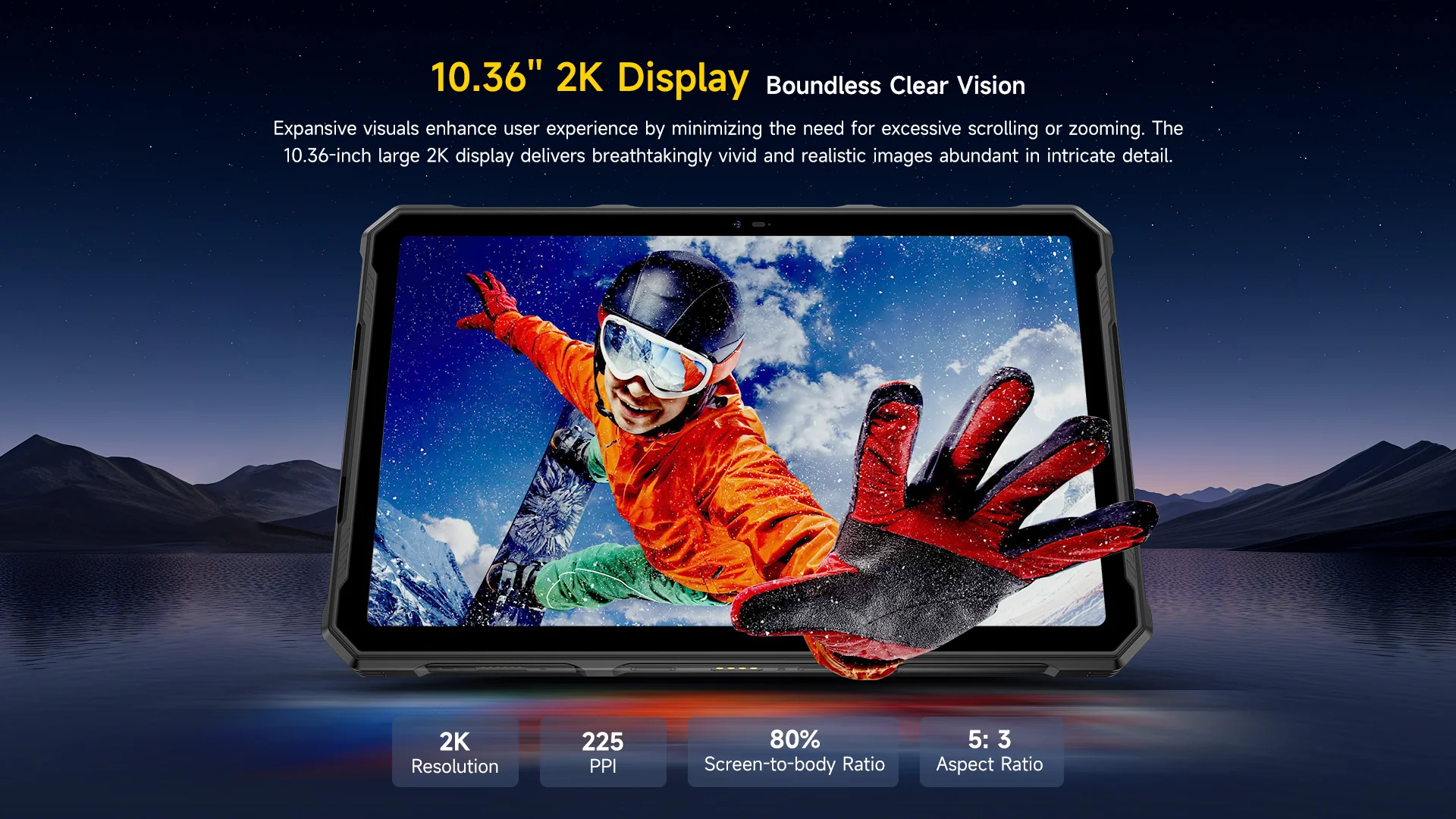

📺 Display

Size: 10.36-inch LCD, IPS
Resolution: 1200 × 2000 (FHD+)
Brightness: 500 nits
Protection: Corning Gorilla Glass 5

⚙️ Processor

Chipset: MediaTek Dimensity 6300 (MT6835T)
CPU: 8-core (4× Cortex-A76 2.4GHz + 4× Cortex-A55 2.0GHz)
GPU: Arm Mali-G57 MC2 (up to 1068 MHz)

💾 Storage & RAM

RAM: 8GB + up to 8GB virtual expansion
Storage: 256GB UFS2.2
Expandable: Up to 2TB (microSD)

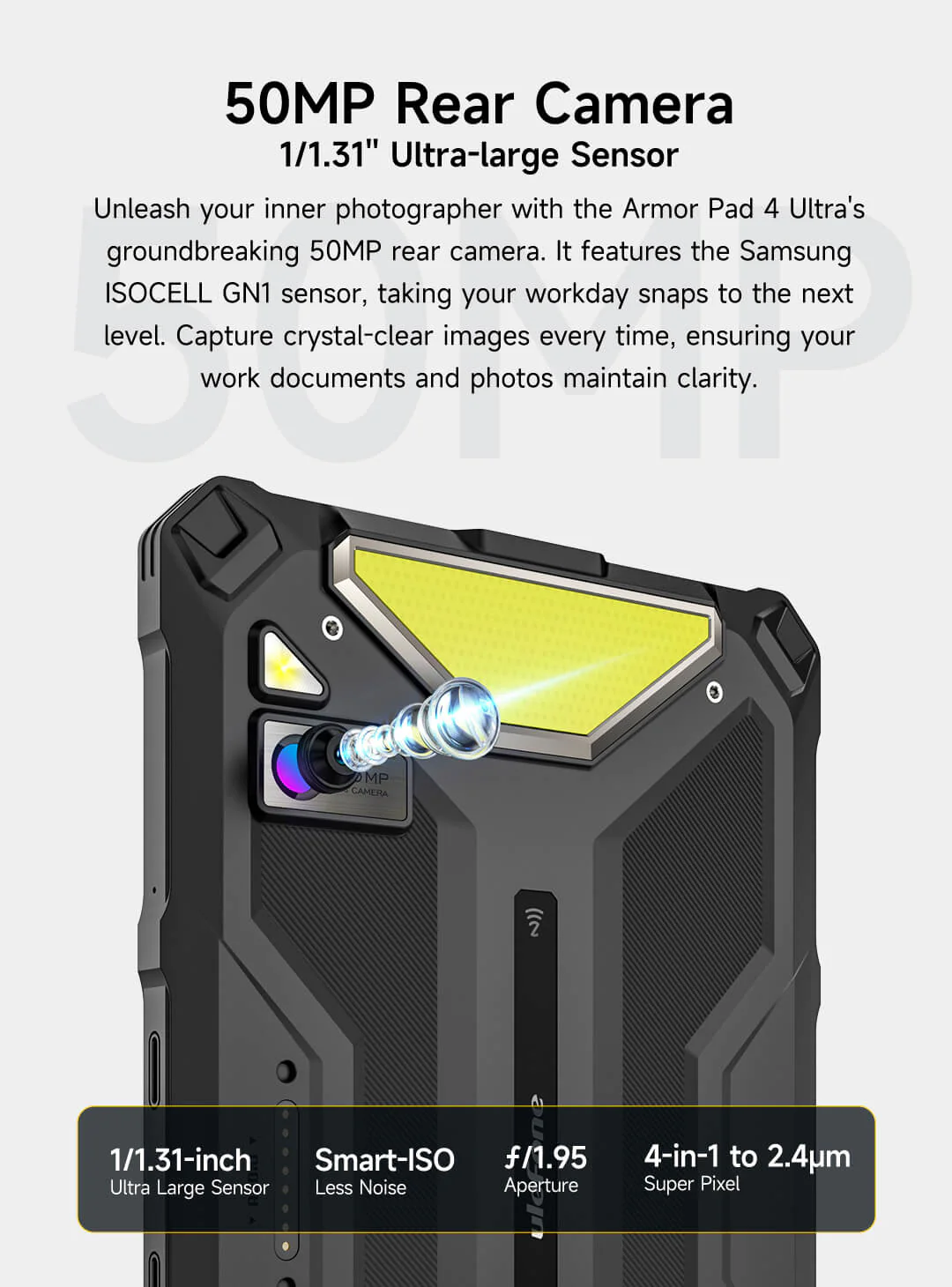

📸 Rear Camera

Main Camera: 50MP (Samsung GN1, ƒ/1.95, FOV 85°)
Video: 2K@30fps, 1080P@30fps, 720P@30fps, 480P@30fps
Features: Night Shot, Pro Mode, Portrait, Beauty, 50MP Mode, AI Scene Detection, Slow Motion, Scan, Geo-Tagging

🤳 Front Camera

Selfie Camera: 32MP (Samsung GD1, ƒ/2.45, FOV 80.4°)
Video: 1080P@30fps, 720P@30fps, 480P@30fps, CIF@30fps

🔊 Audio

Dual-Speaker Sound System

🔐 Unlock Options

• Side-Mounted Fingerprint (integrated with power button)
• Face Unlock

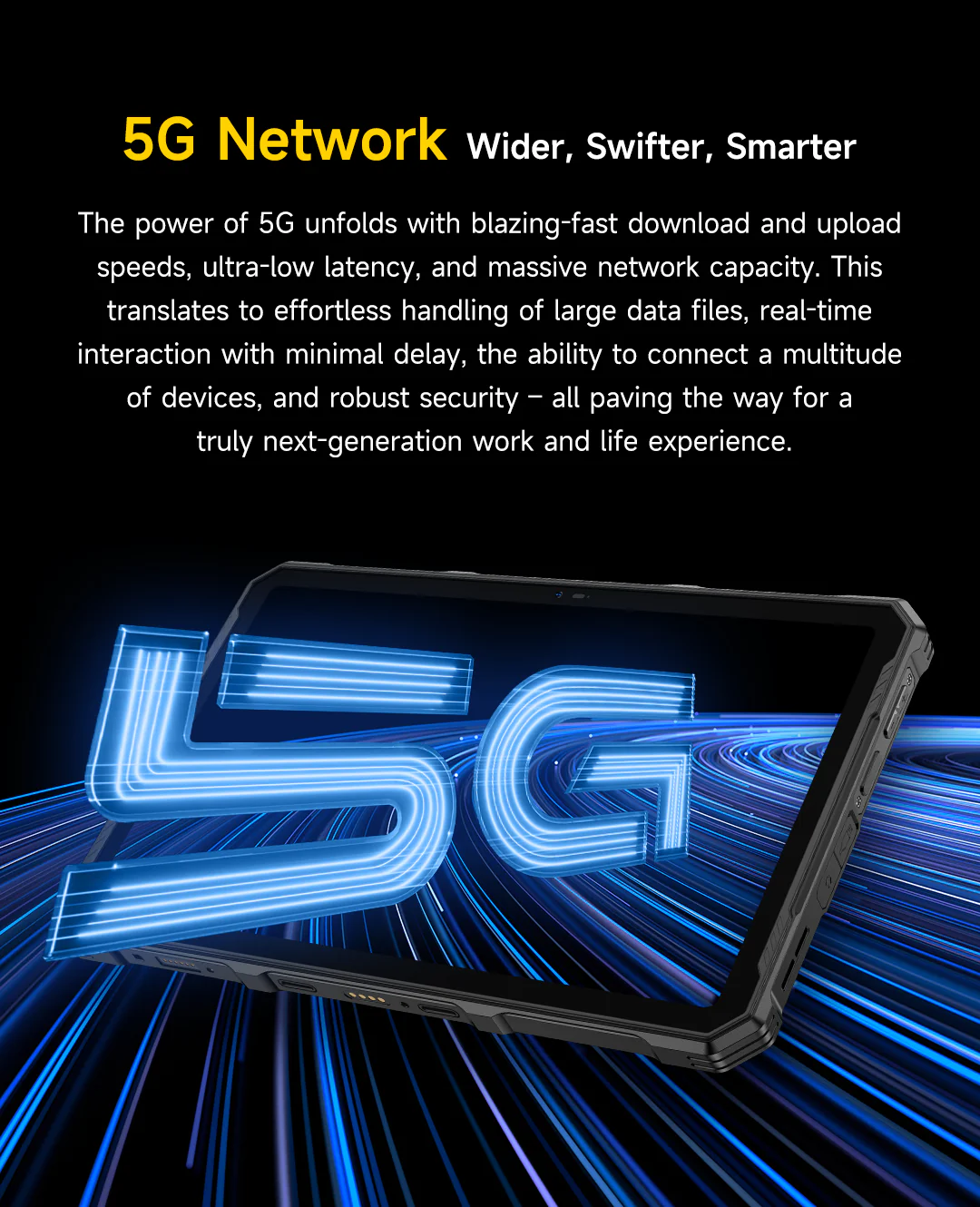

📡 Network

Dual SIM: Dual Nano-SIM

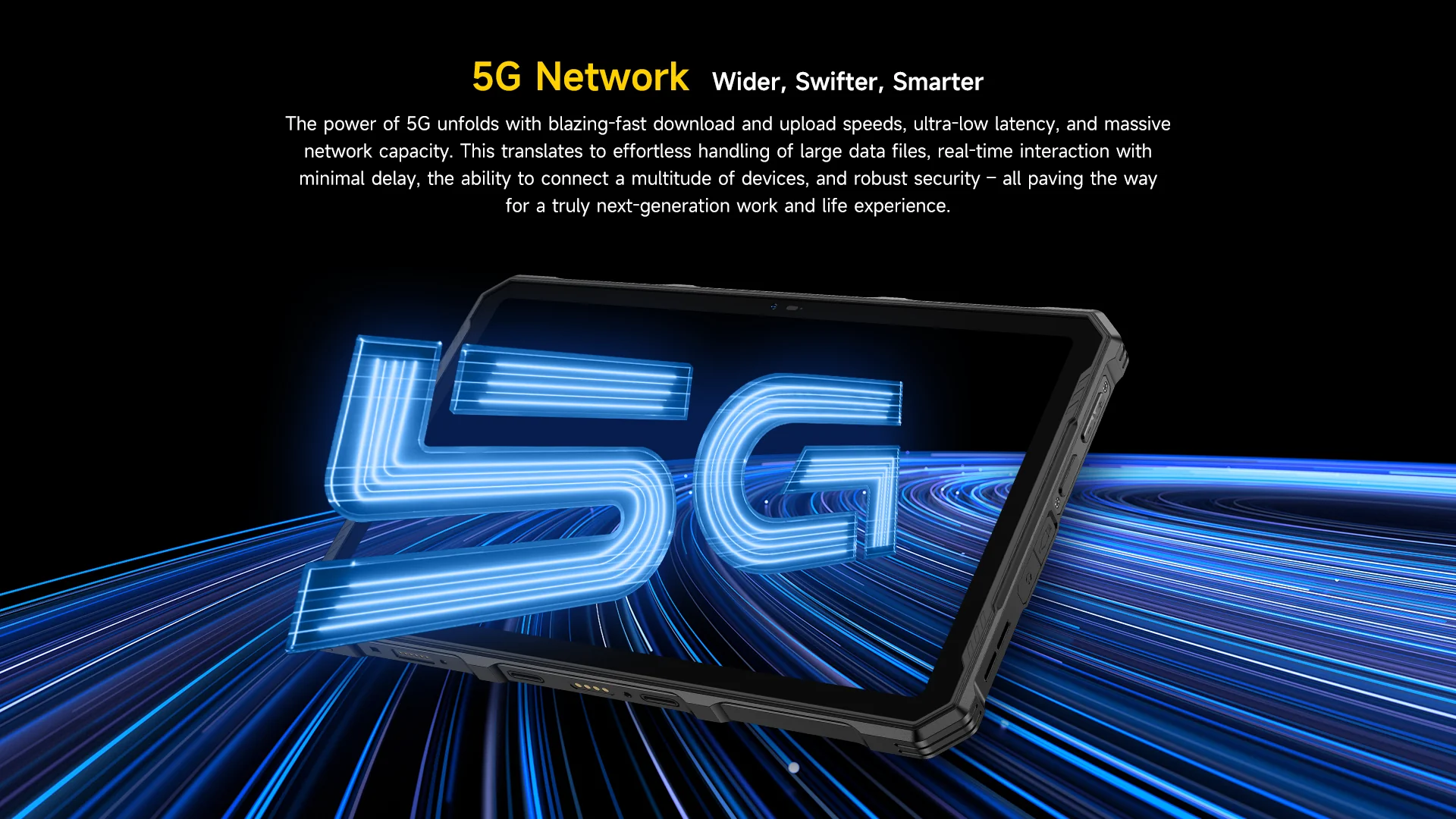

5G/4G/3G/2G Supported
VoNR & VoLTE: Supported

5G Bands: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79
4G Bands: FDD-LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/26/28A/28B/66/71
3G Bands: WCDMA B1/2/4/5/8
2G Bands: GSM B2/3/5/8

*Support depends on local carriers & regions.

📶 Connectivity

• Wi-Fi 802.11 a/b/g/n/ac (2.4GHz/5GHz)
• Bluetooth 5.2
• GPS, GLONASS, Beidou, Galileo, Digital Compass
• uSmart 2.0 Expansion Connector
• NFC (Google Pay supported)
• USB Type-C, 3.5mm Headphone Jack, HDMI Output

⚙️ Sensors

• NFC
• Side Fingerprint
• Light, Gravity, Acceleration
• Geomagnetic, Gyroscope
• Coulomb Counter

🎵 Multimedia

• Video: MKV/3GP/MP4
• Audio: MID/FLAC/MP3/M4A/AAC/AMR/OGG
• Image: GIF/JPEG/PNG/BMP
• Ebook: TXT/HTML

🌐 Languages

Supports 40+ languages including English, German, French, Spanish, Russian, Arabic, Chinese, Japanese, Korean, Hindi, and more.

📦 In the Box

• 1× Armor Pad 4 Ultra
• 1× AC Power Charger
• 1× Type-C to Type-C Data Cable (100cm)

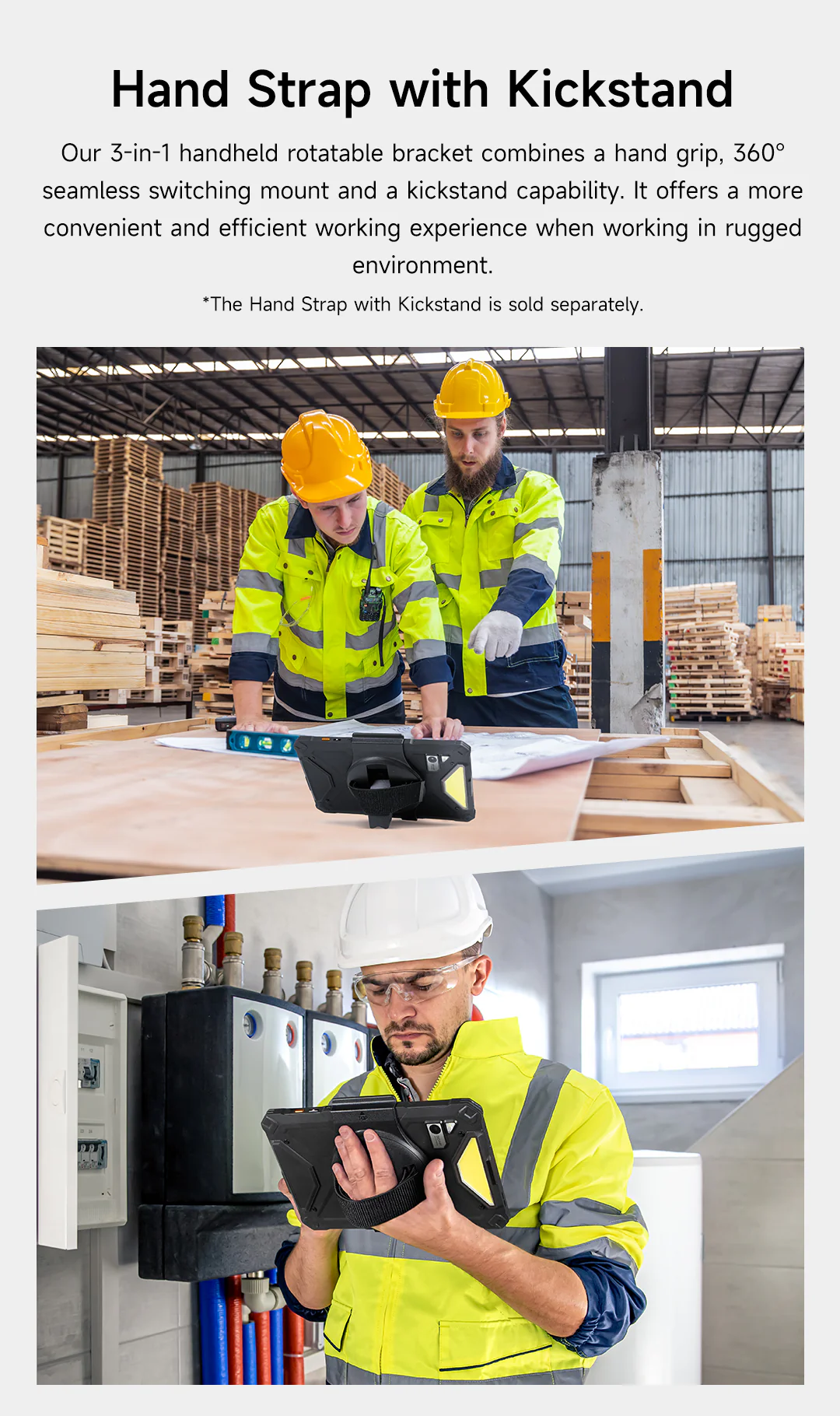

• 1× Tablet Hand Strap + Screws + Screwdriver
• 1× Protective Film (Pre-installed)
• 1× SIM Needle
• 1× Multi-language User Manual
• 1× Warranty Card
• 1× Charging Instruction Card
• 1× Safety Prompt Card
• 1× Service Center APP Instructions
• 1× Accessories Ecosystem Brochure
