Armor Pad 5 Pro

Specifications

Ulefone Armor Pad 5 Pro Specifications

Physical Characteristics

• Color: Black
• Material: PC + Aluminium
• USB: Type-C, USB 2.0
• Headphone Jack: 3.5mm

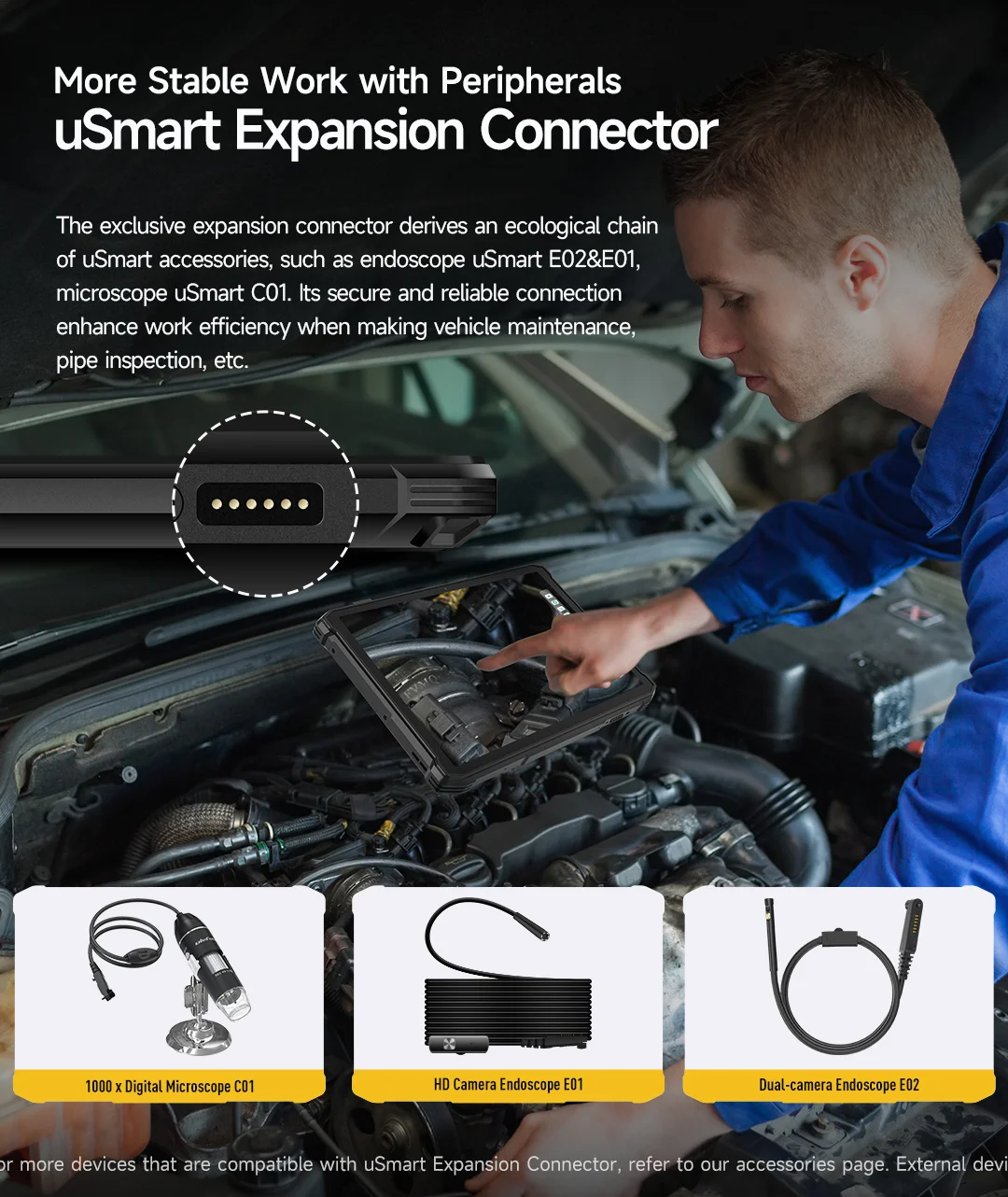

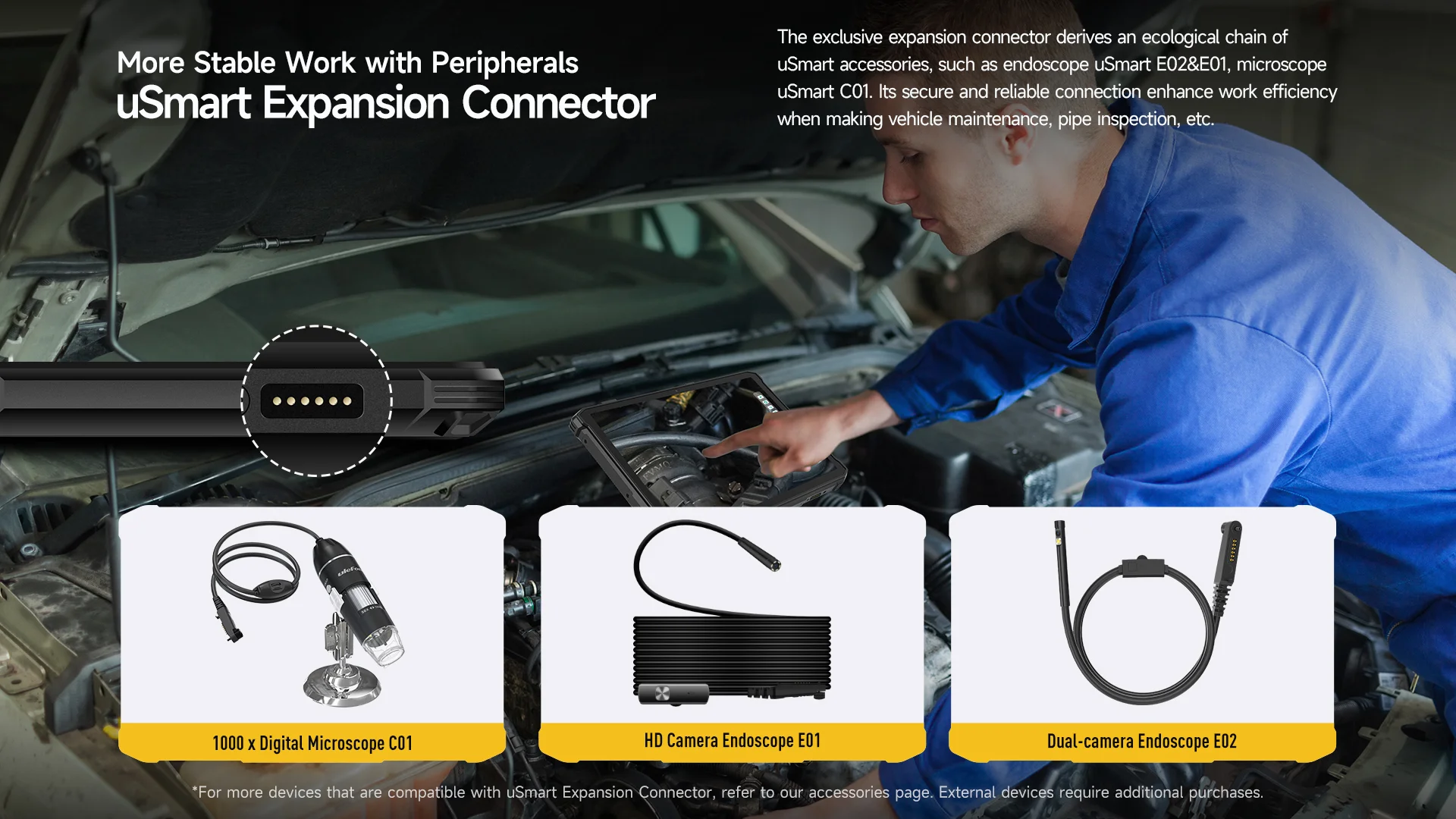

• Expansion Connector: uSmart Expansion Connector 2.0 (supports charging while in use)
• Card Slots: 1x Nano-SIM + 1x Nano-SIM + 1x microSD
• Keys: Power (Fingerprint), Volume, Versatile LED Light button, Custom Key

Size & Weight

• Product Size: 269.7 × 179.5 × 27.8 mm
• Product Weight: 1600 g
• Package Size: 205 × 297.8 × 81 mm
• Package Weight: —

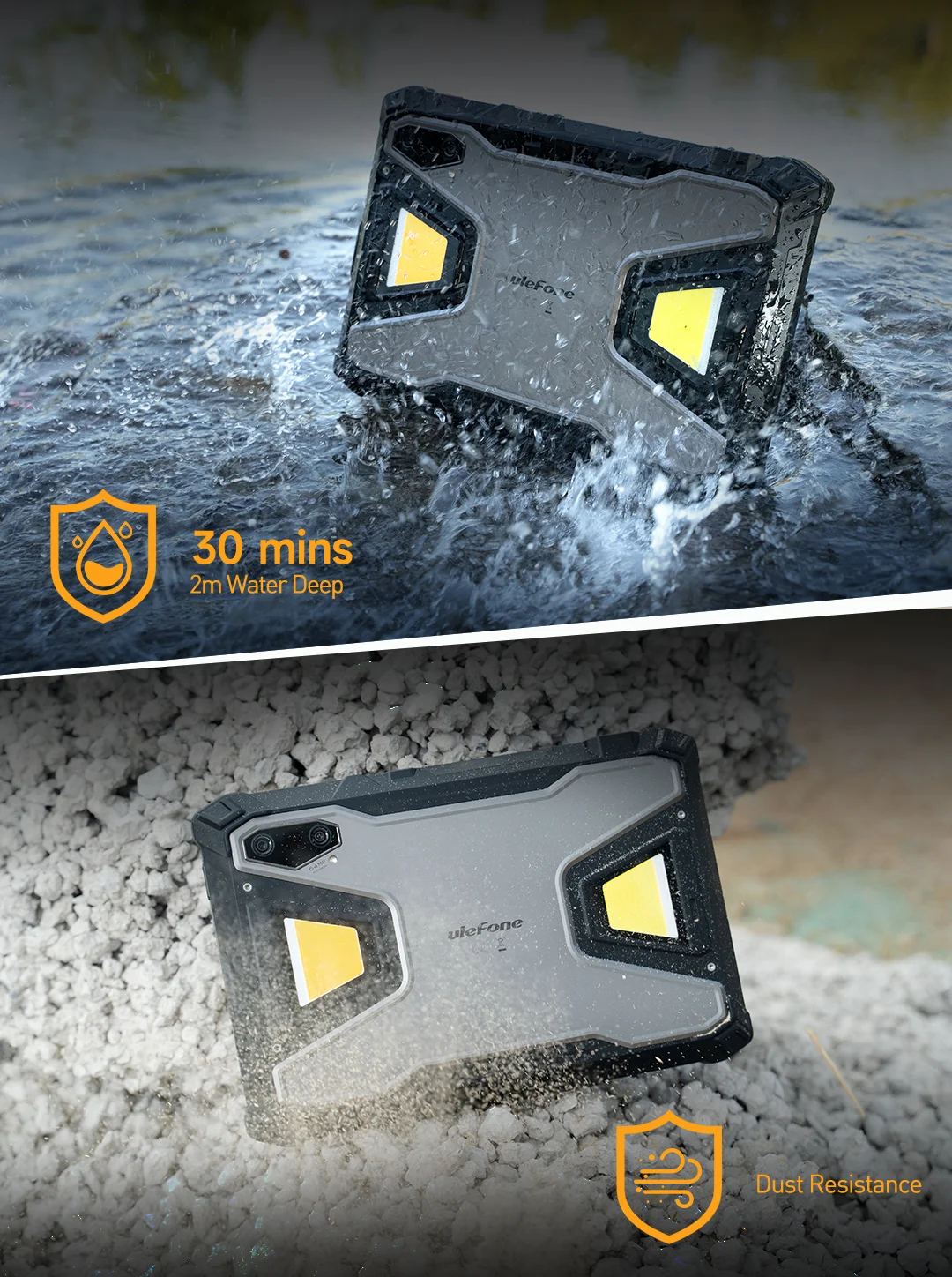

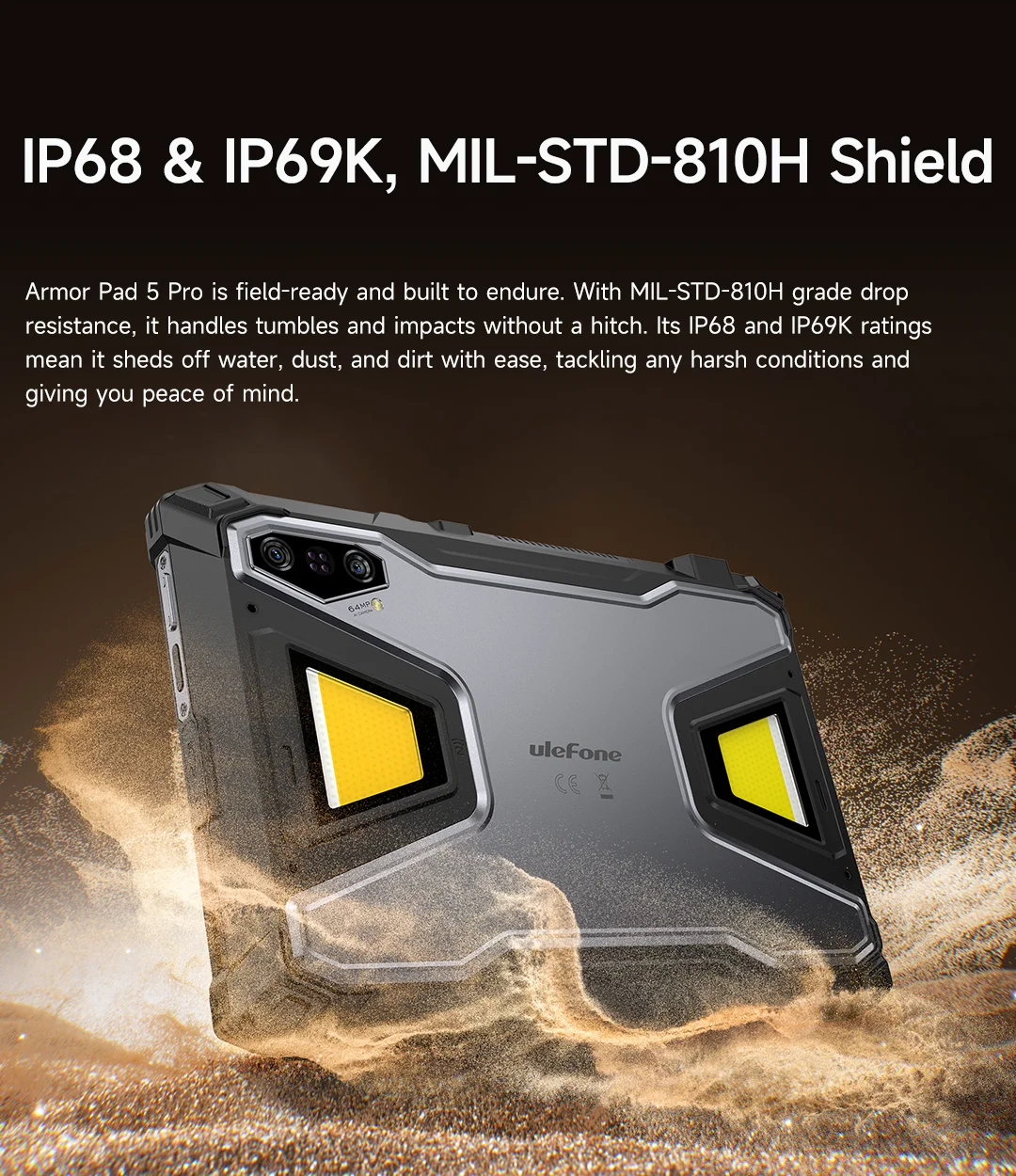

Ruggedness

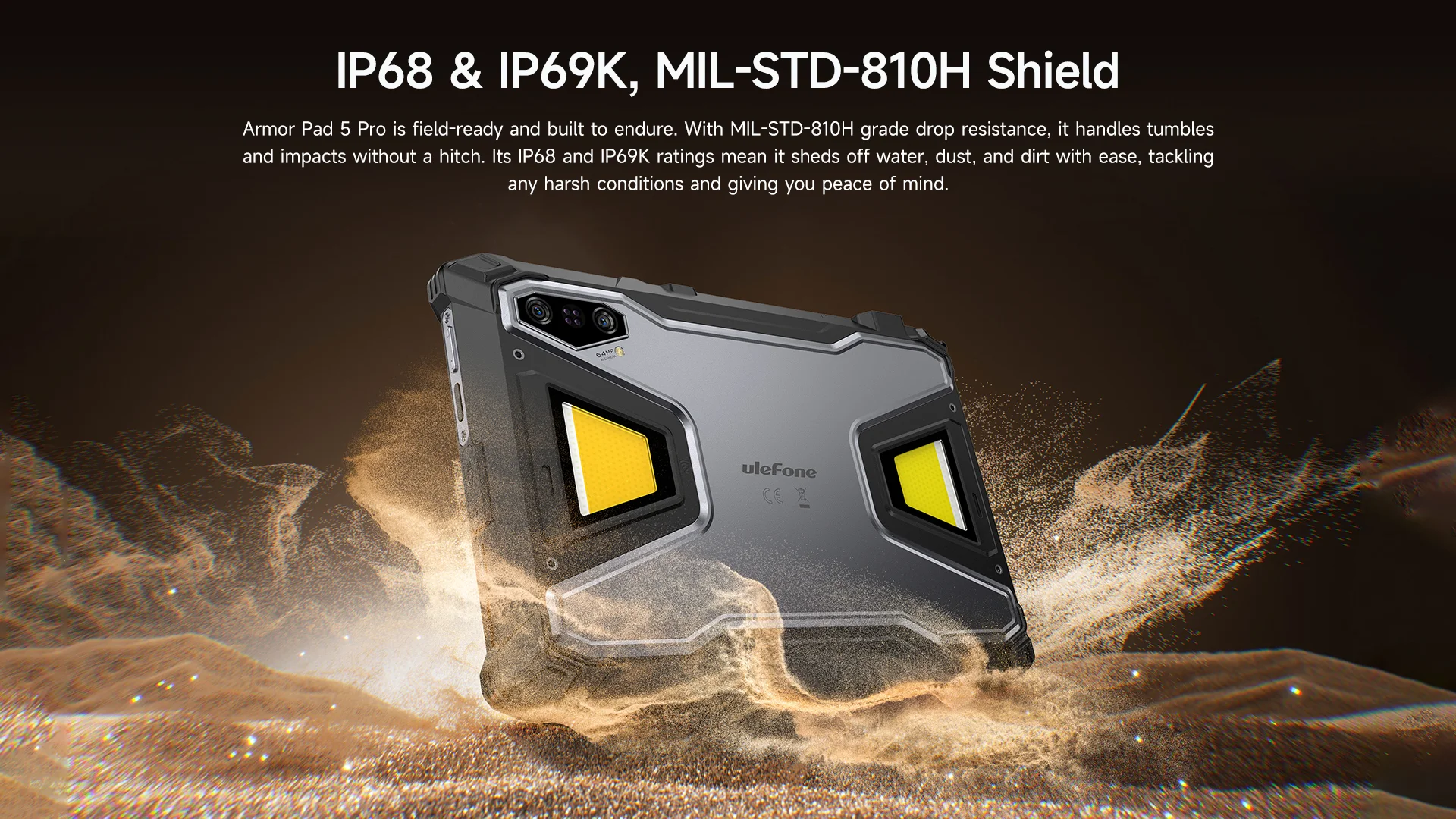

• Certification: IP68 / IP69K / MIL-STD-810H
• Water Resistance: 2m depth up to 30 minutes
• Drop Resistance: Up to 1.5m
• Working Temperature: -20°C to 55°C

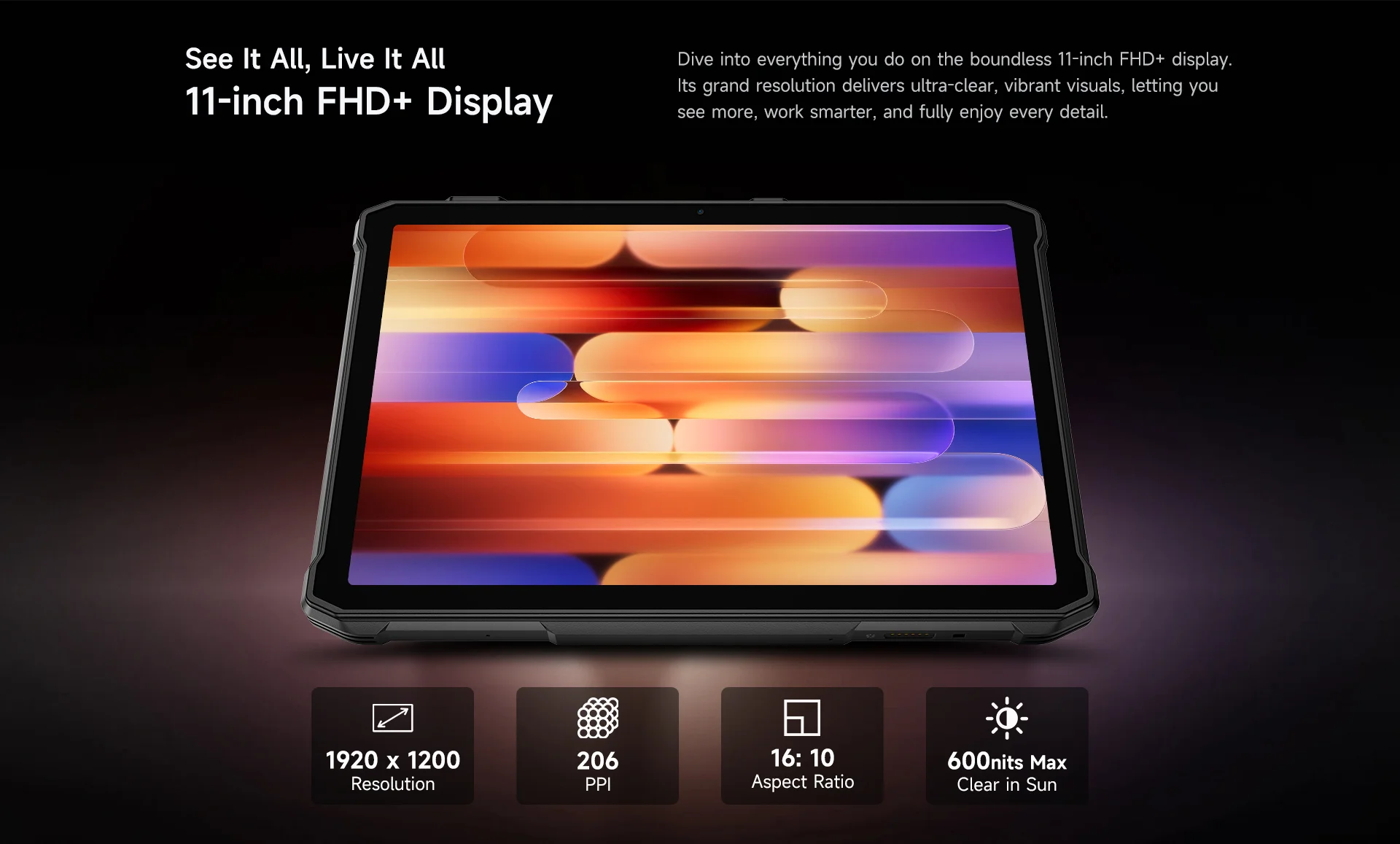

Display

• Screen Size: 11-inch
• Resolution: 1920 × 1200 FHD+
• Aspect Ratio: 16:10
• PPI: 206
• Brightness: 600 nits (peak)
• Color Depth: 10-bit
• Refresh Rate: 90Hz
• Screen-to-Body Ratio: 87%
• Multi-touch: 10-point

Processor

• CPU: MediaTek Dimensity 7400X (2.6GHz, 4nm)
• Cores: 4× Cortex-A78 + 4× Cortex-A55
• GPU: Mali-G615 MC2 (1.0GHz)
• AI Processor: MediaTek NPU 655

RAM & Storage

• RAM: 12GB LPDDR5 + up to 20GB Dynamic RAM
• Storage: 512GB UFS 3.1
• Expandable: Up to 2TB

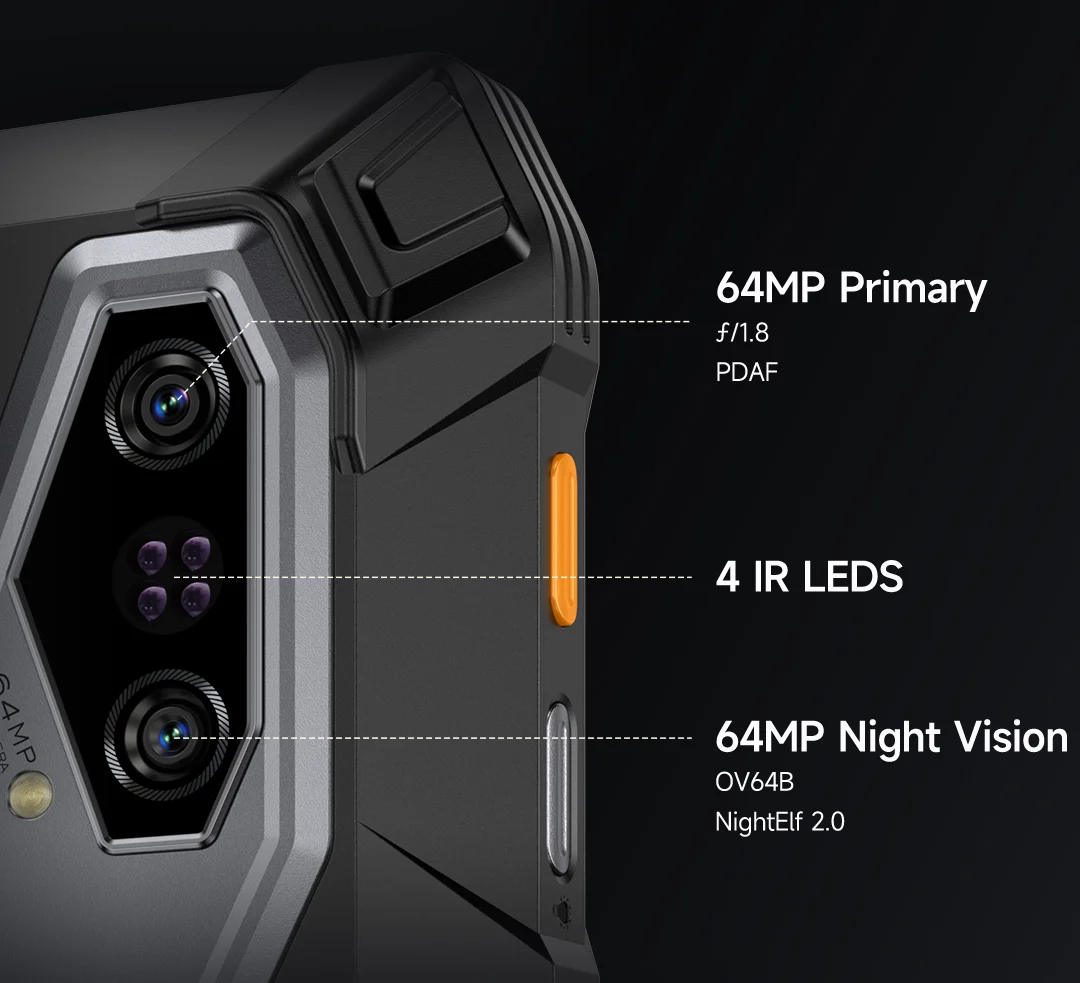

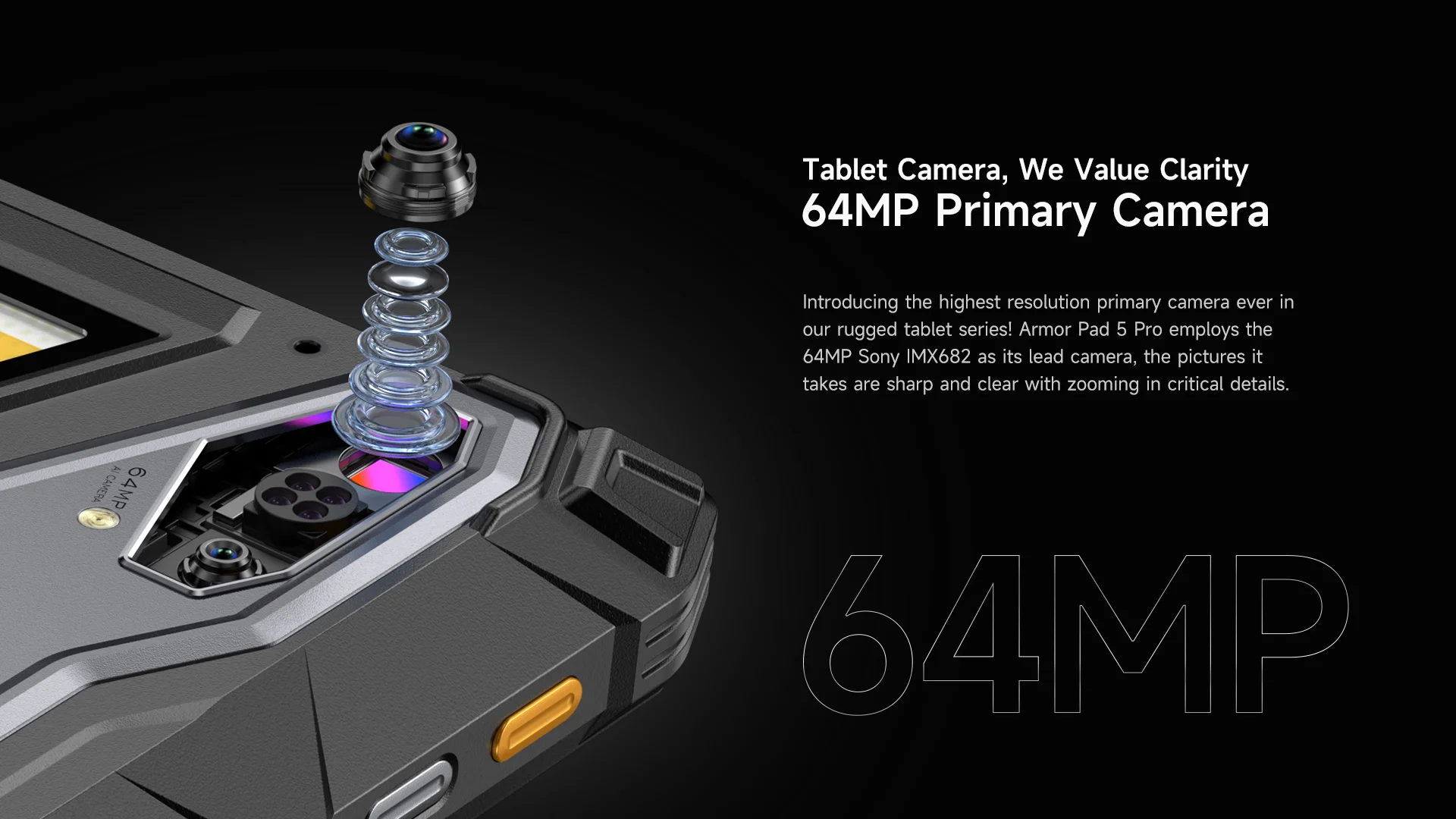

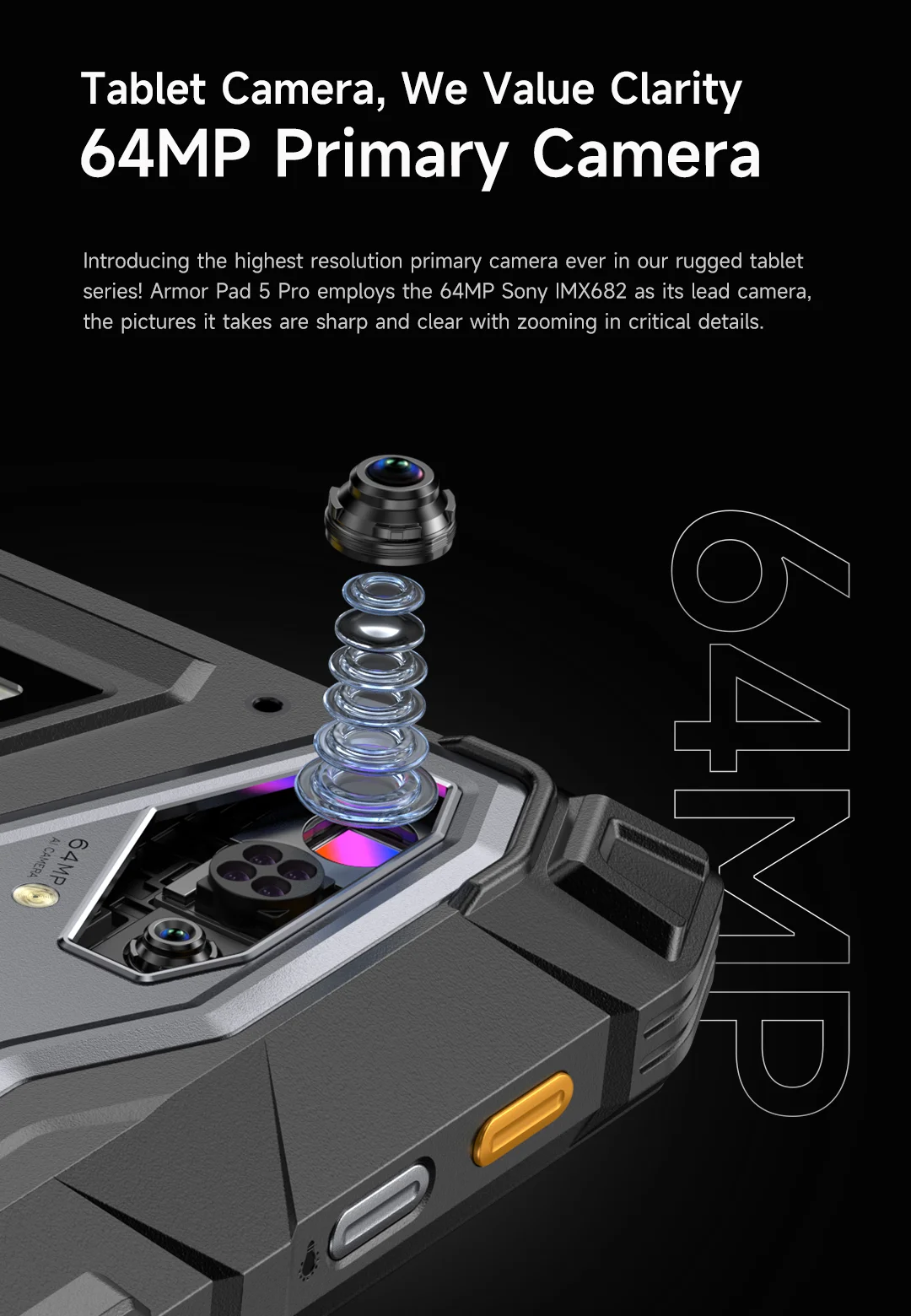

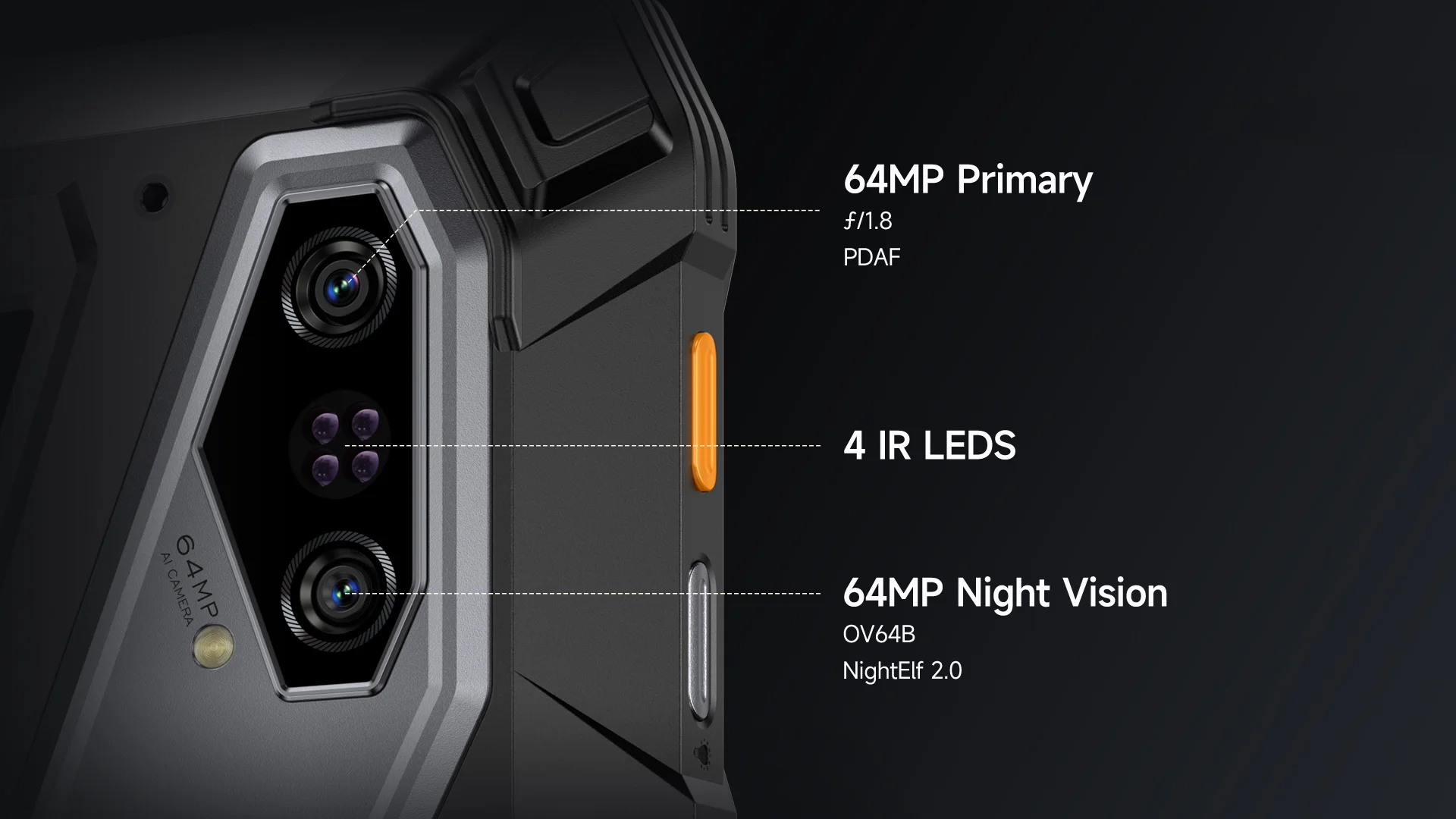

Rear Camera

• Main Camera: 64MP (Sony IMX682)

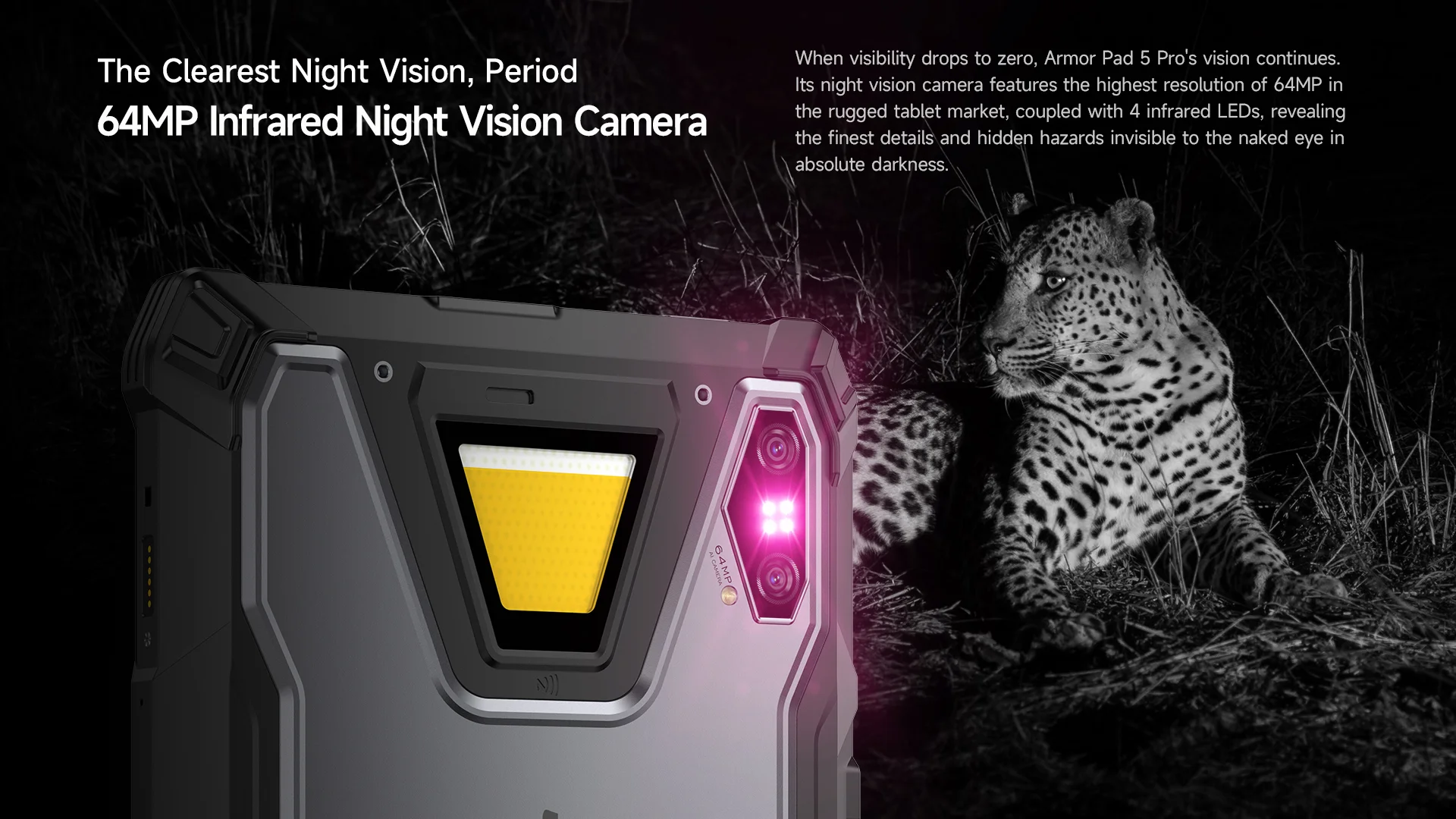

• Night Vision Camera: 64MP (OV64B)
• Flash: LED
• Video: 4K@30fps, 2K@30fps, 1080p@30fps, 720p@30fps

Front Camera

• Pixel: 32MP (Samsung GD1)
• Video: 1080p, 720p, 480p, CIF @30fps

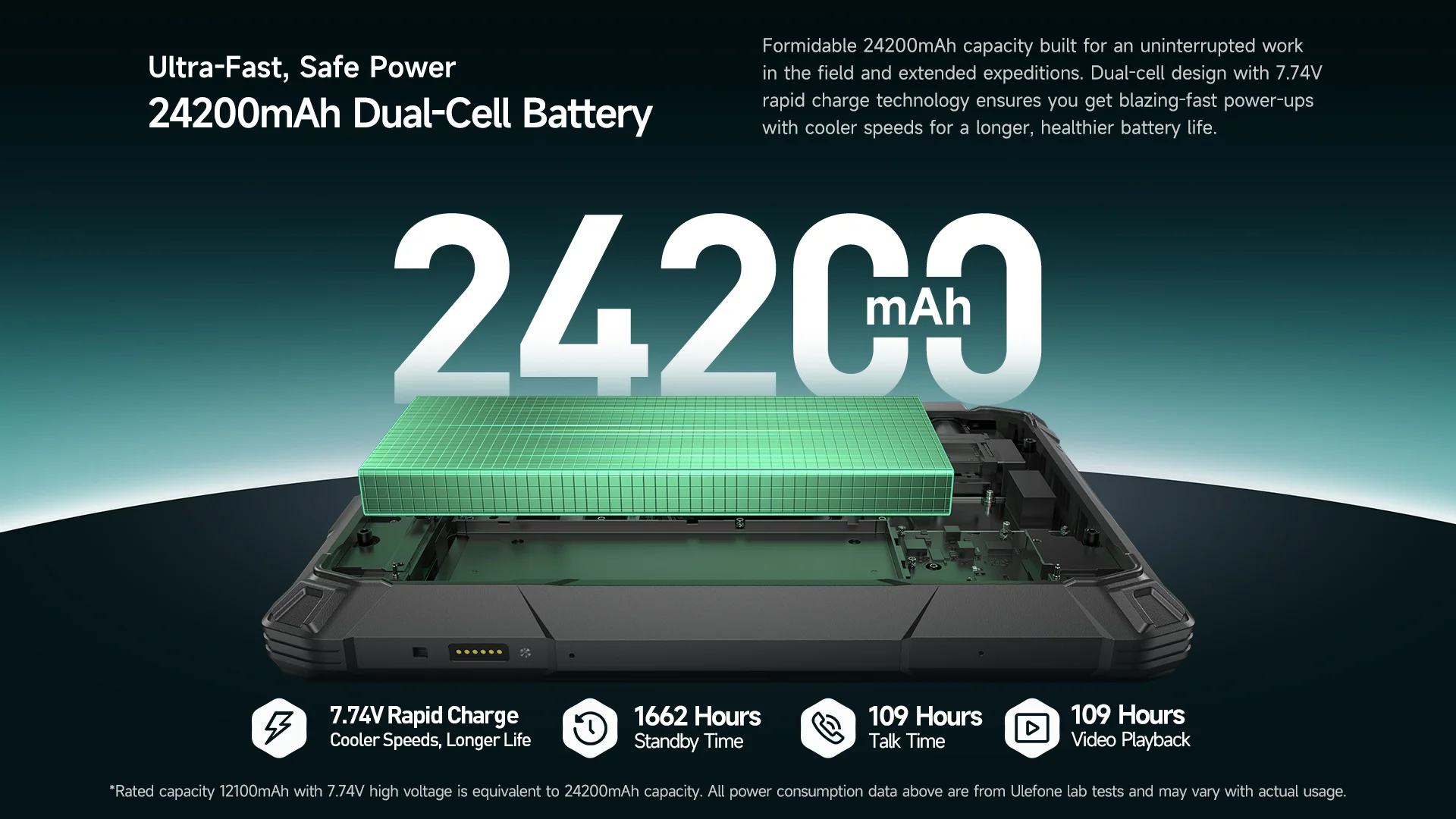

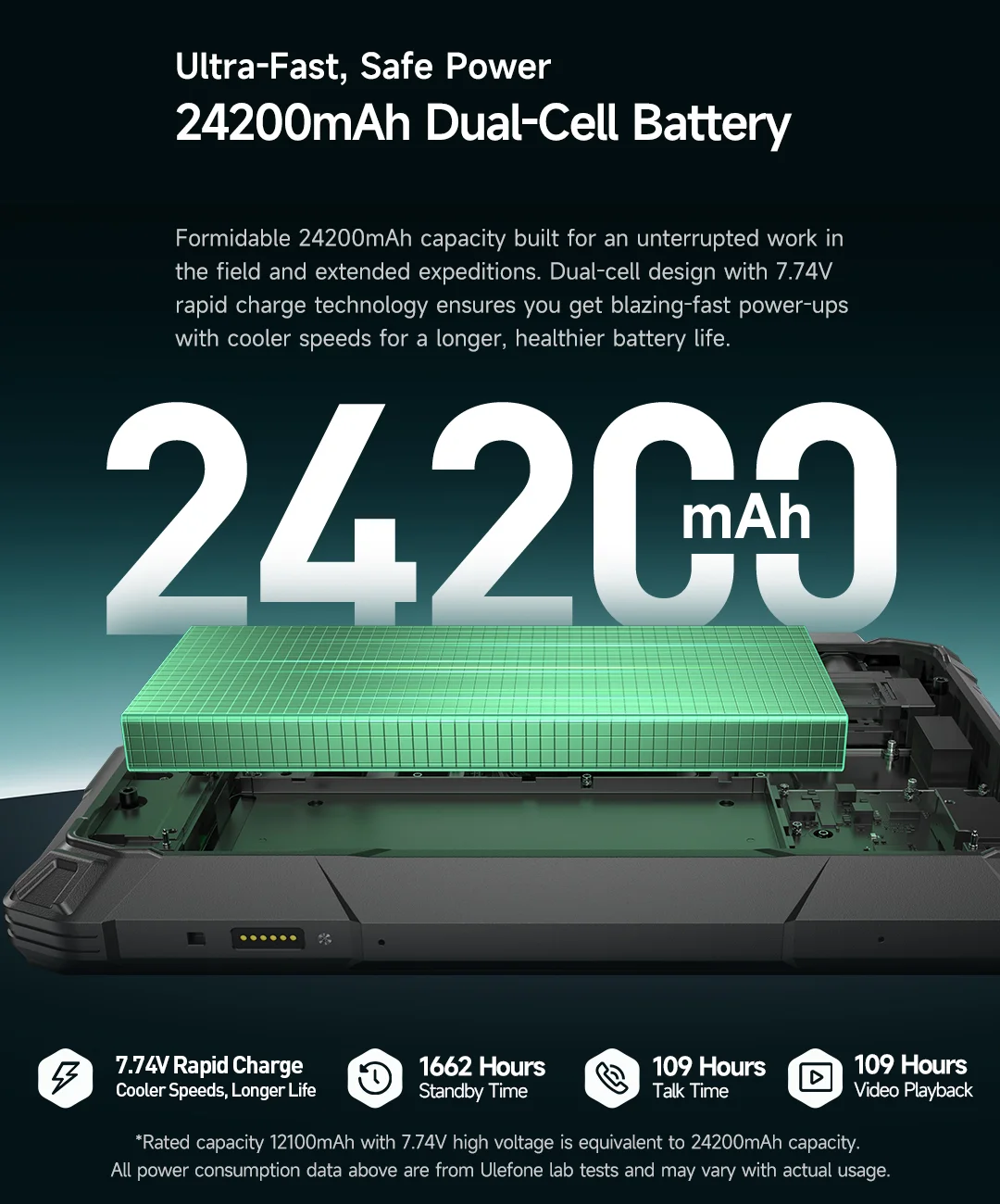

Battery & Charging

• Capacity: 24,200mAh (Rated 12,100mAh @ 7.74V)
• Wh: 93.654 Wh

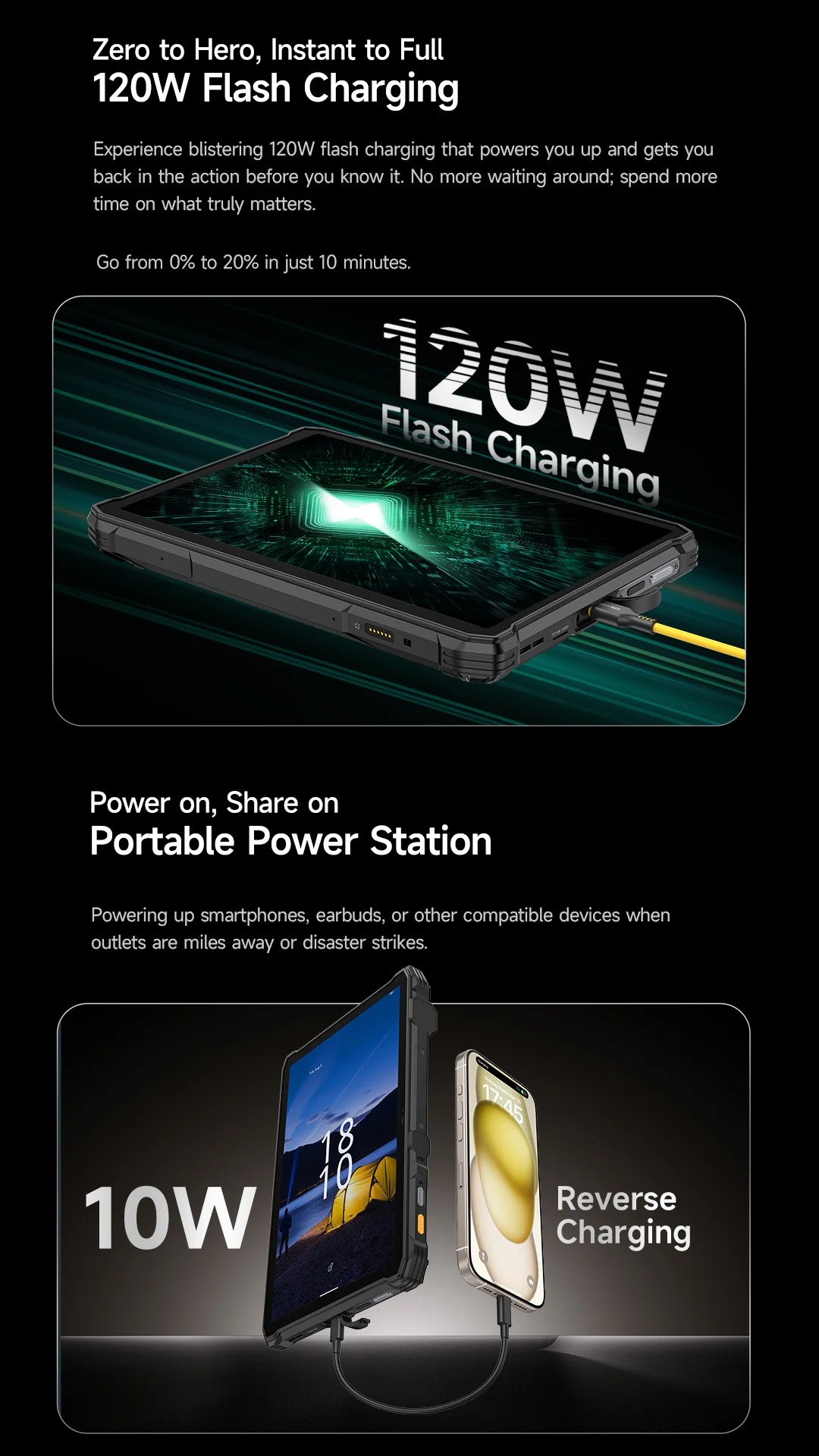

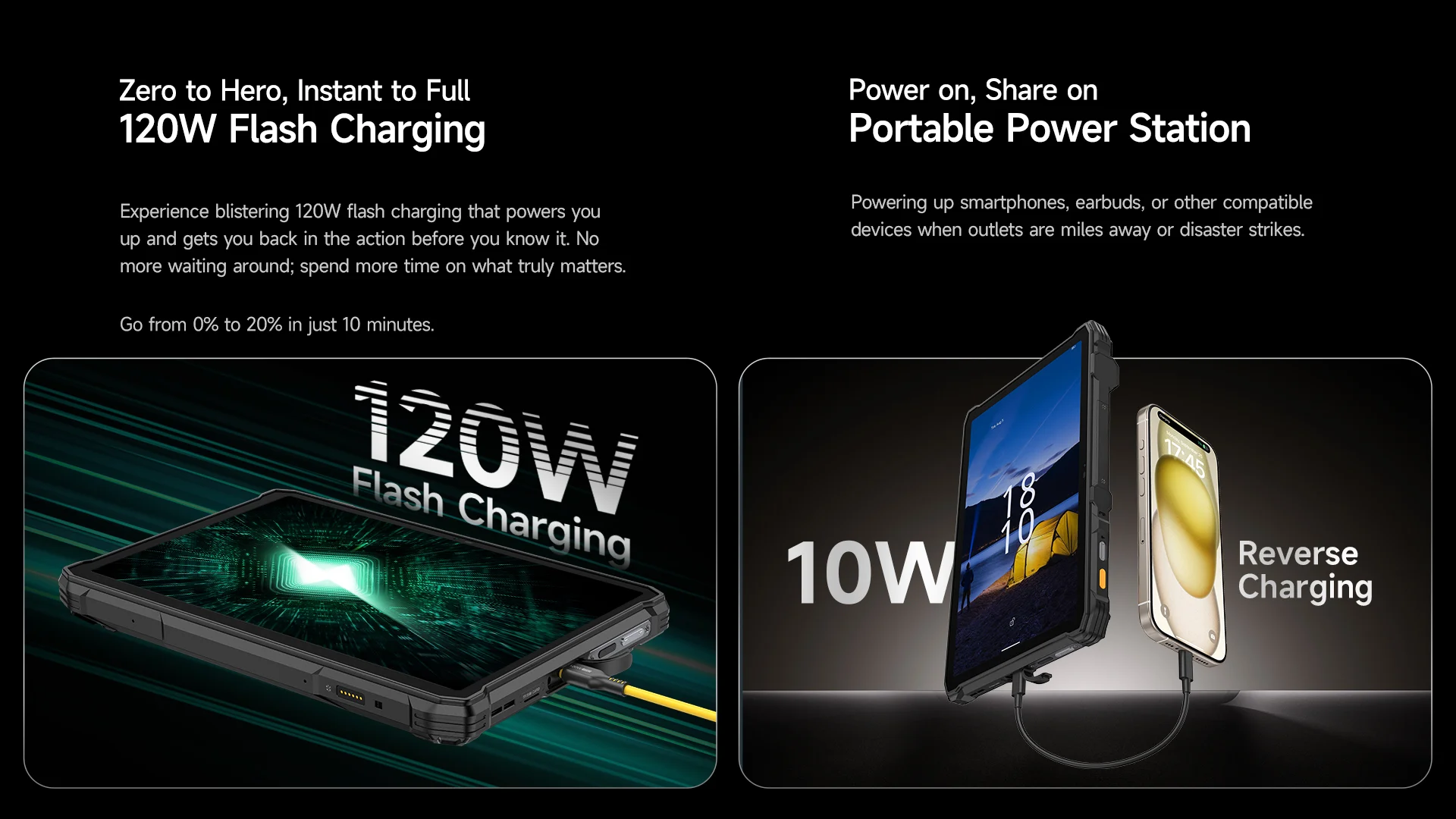

• Charging: 120W (20V/6A)
• Reverse Charging: Wired, 10W
• Standby Time: 1662 hours
• Talk Time: 109 hours

Network & Connectivity

• SIM: Dual Nano-SIM + microSD
• Cellular: 5G / 4G / 3G / 2G
• WiFi: WiFi 6E
• Bluetooth: 5.4
• Navigation: GPS, GLONASS, Beidou, Galileo, QZSS, NavIC

Audio

• Speakers: 2× 1326 BOX
• Speaker Power: Max 3W
• Smart PA: AW88399

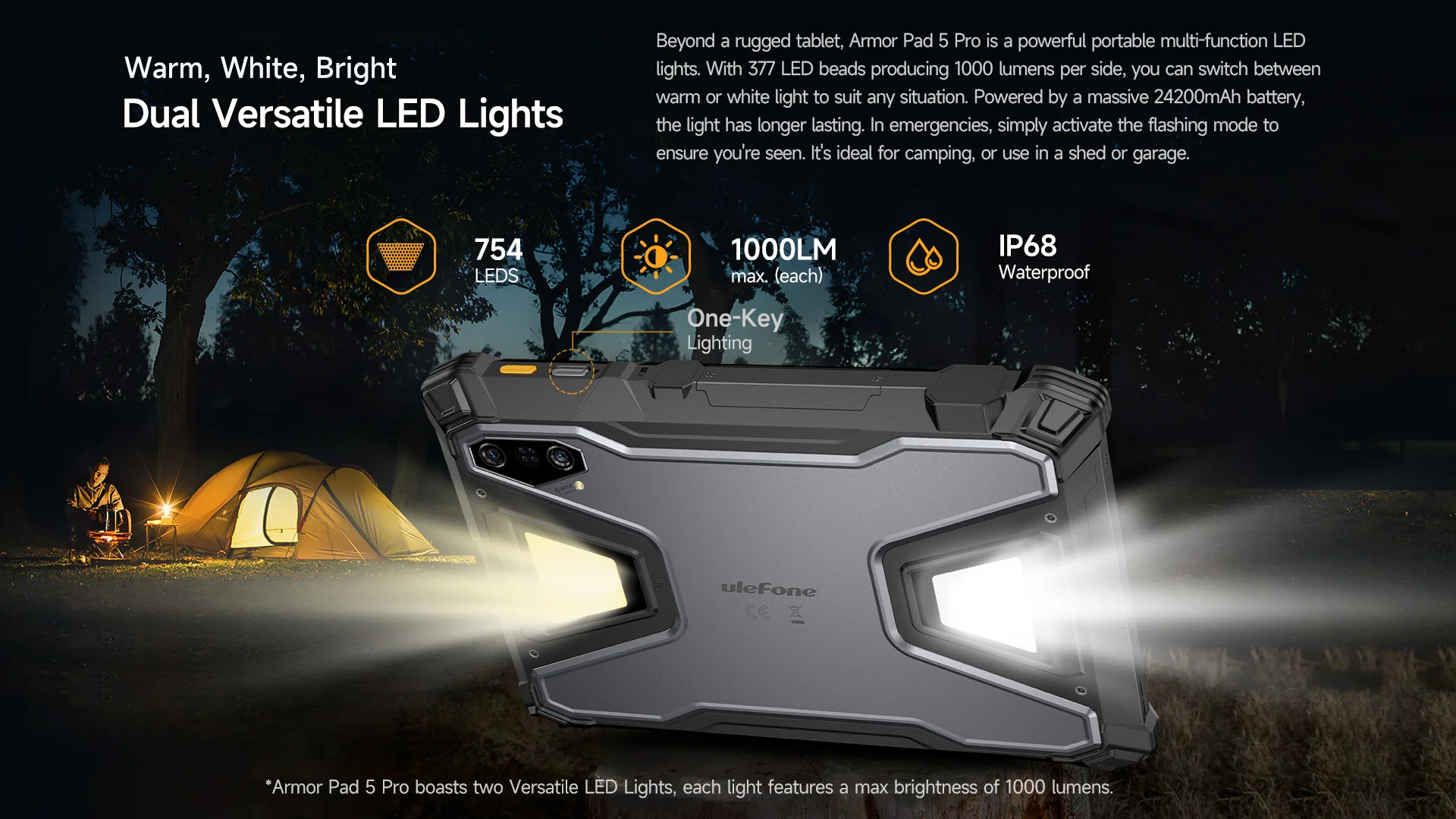

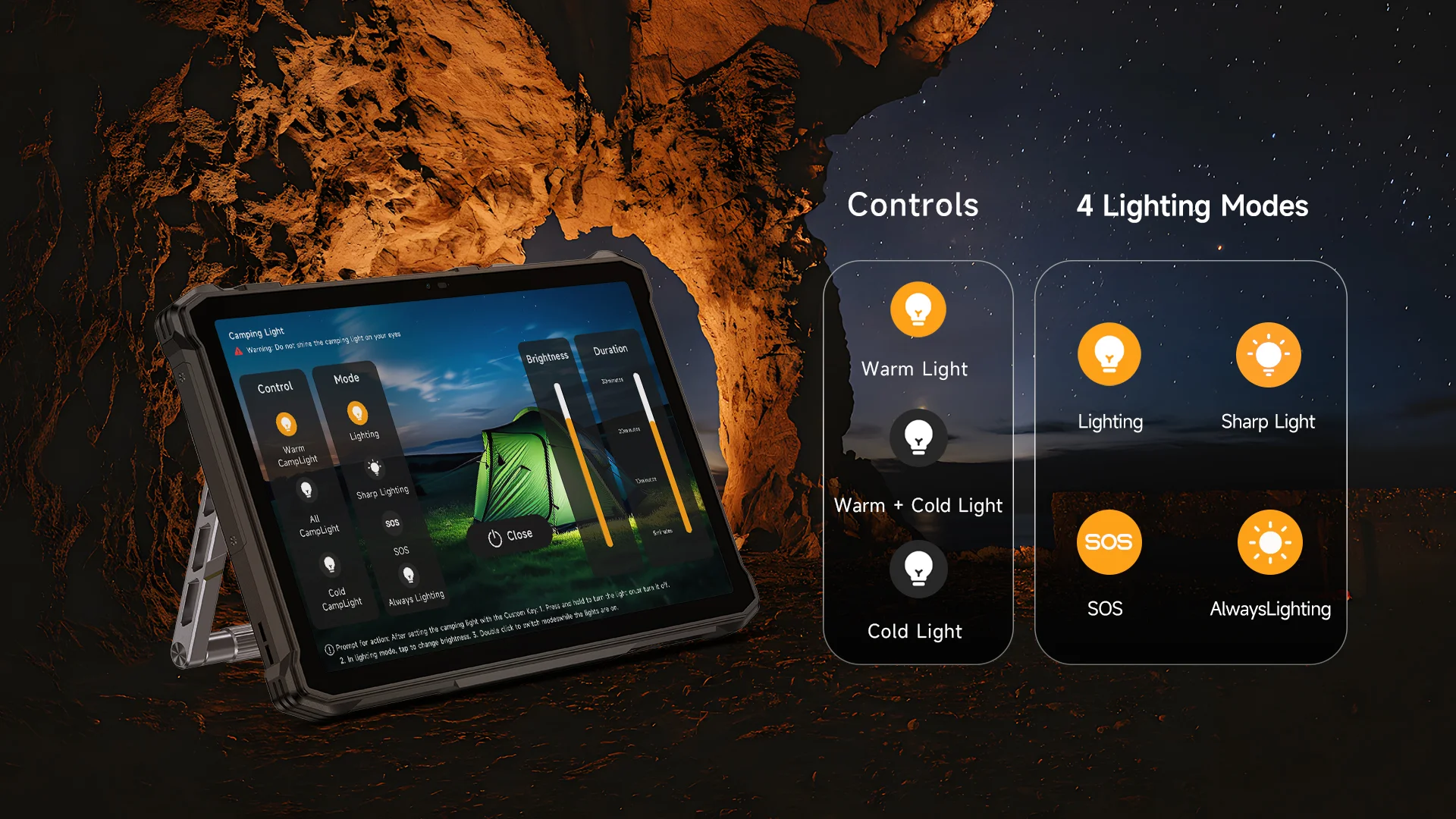

Versatile LED Light

• LED Beads: 754
• Brightness: Max 1000 lumens
• Modes: Lighting (adjustable), Sharp Light, SOS, AlwaysLighting

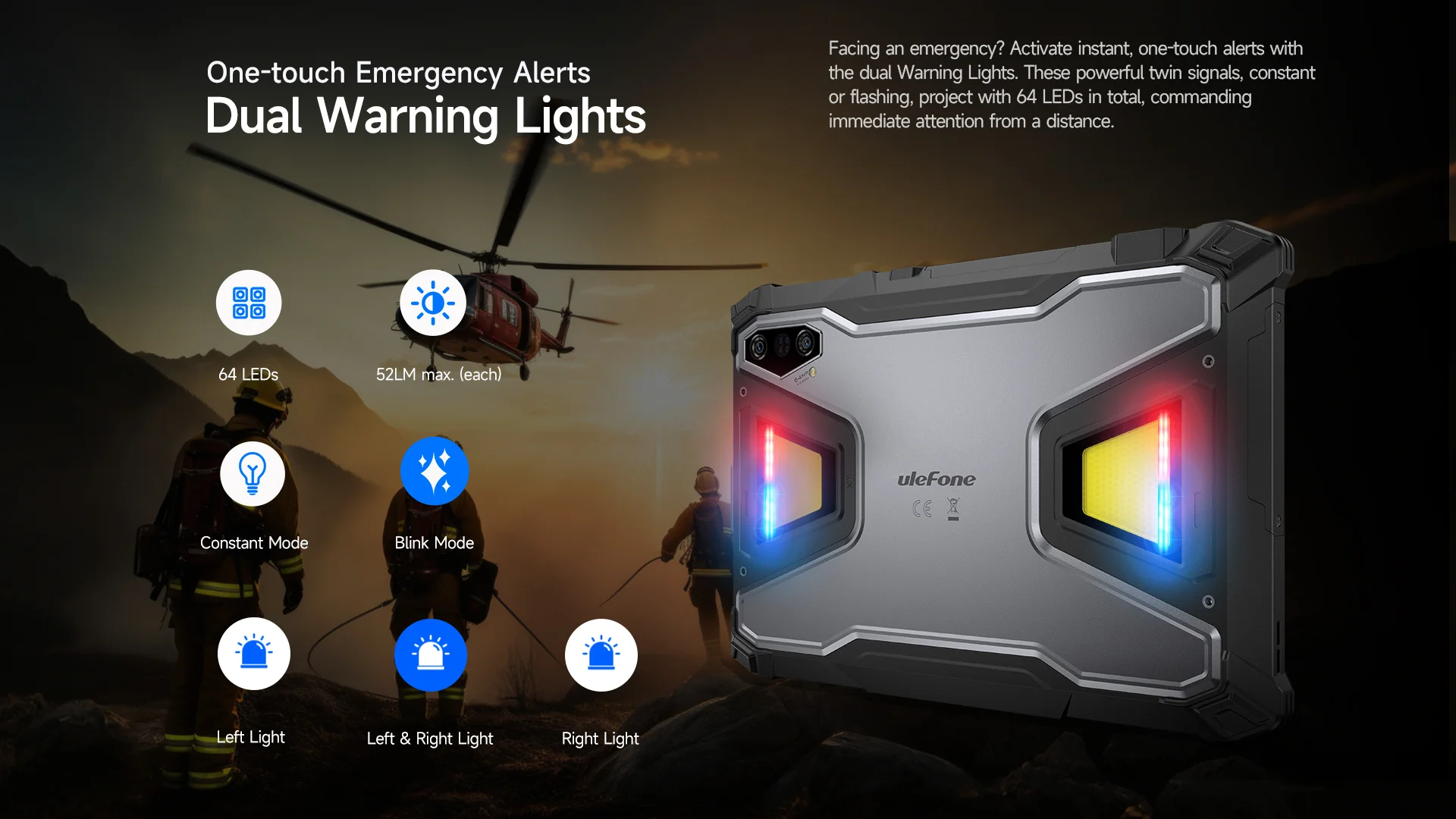

Warning Light

• LED Beads: 64
• Effects: Red, Blue, Red-Blue
• Sound Simulation: Fire, Ambulance, Police, etc.

Security

• Fingerprint ID: Support
• Face Unlock: Support

System & Features

• OS: Android 15
• Pre-installed Apps: Full Google Suite, Camping Light, RedBluePoliceLight, ToolBag, Night Camera, and more
• Languages: Global multi-language support
• Sensors: Gravity, Light, Accelerometer, Gyro, Geomagnetic, Air Pressure, Infrared, Pedometer
• Special Features: Underwater Camera, Gloves Mode, Digital Toolbox, OTG, NFC

Others

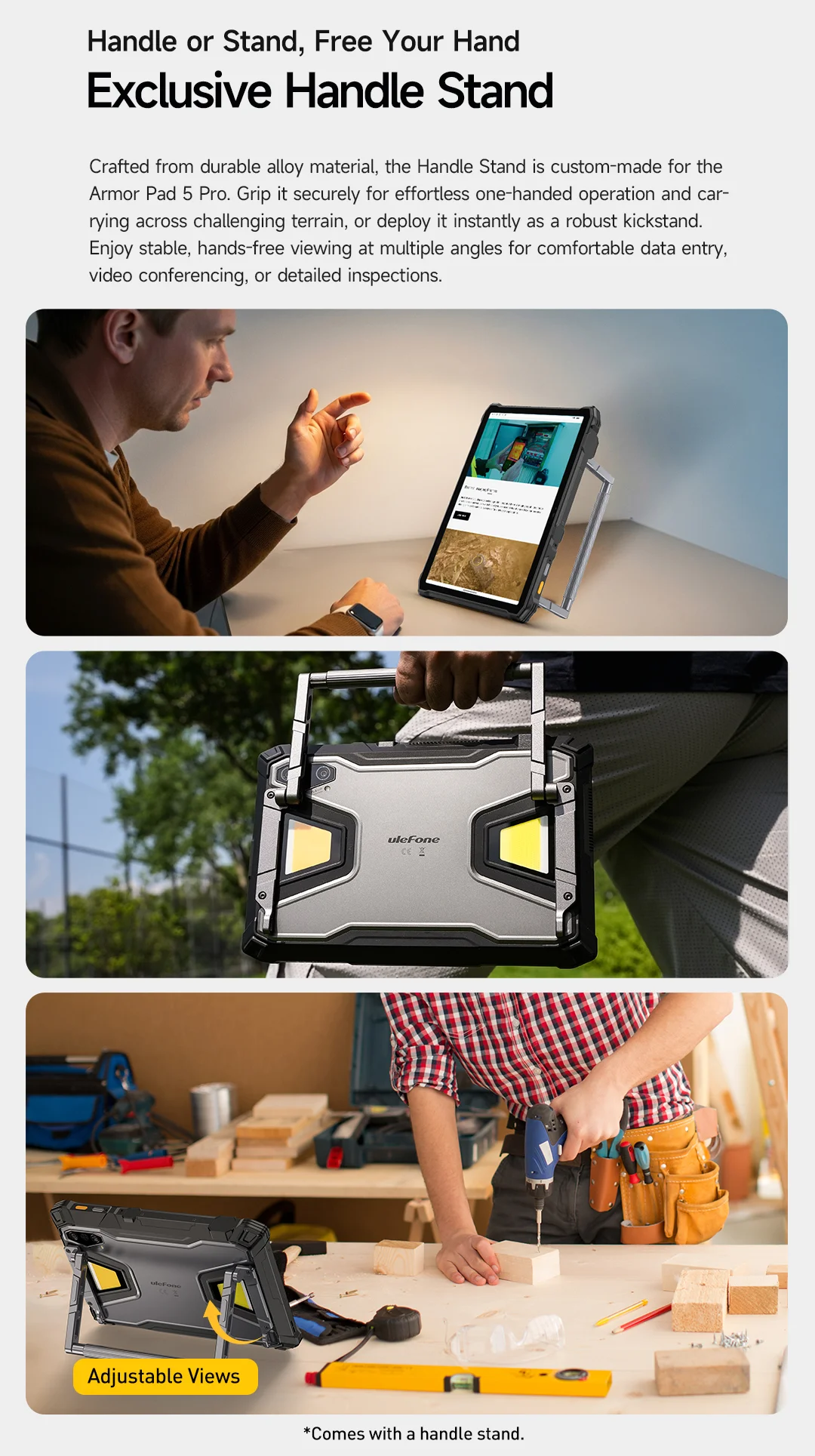

• Packing List: Tablet, 120W Charger, Type-C Cable, Protective Film, Pry Opener, Screwdriver, Screws, Manuals, Handle Stand
• Certifications: CE, FCC, IP68, IP69K, MIL-STD-810H, ROHS, UN38.3, MSDS, IEC62133
• Manual Download: Provided Links
