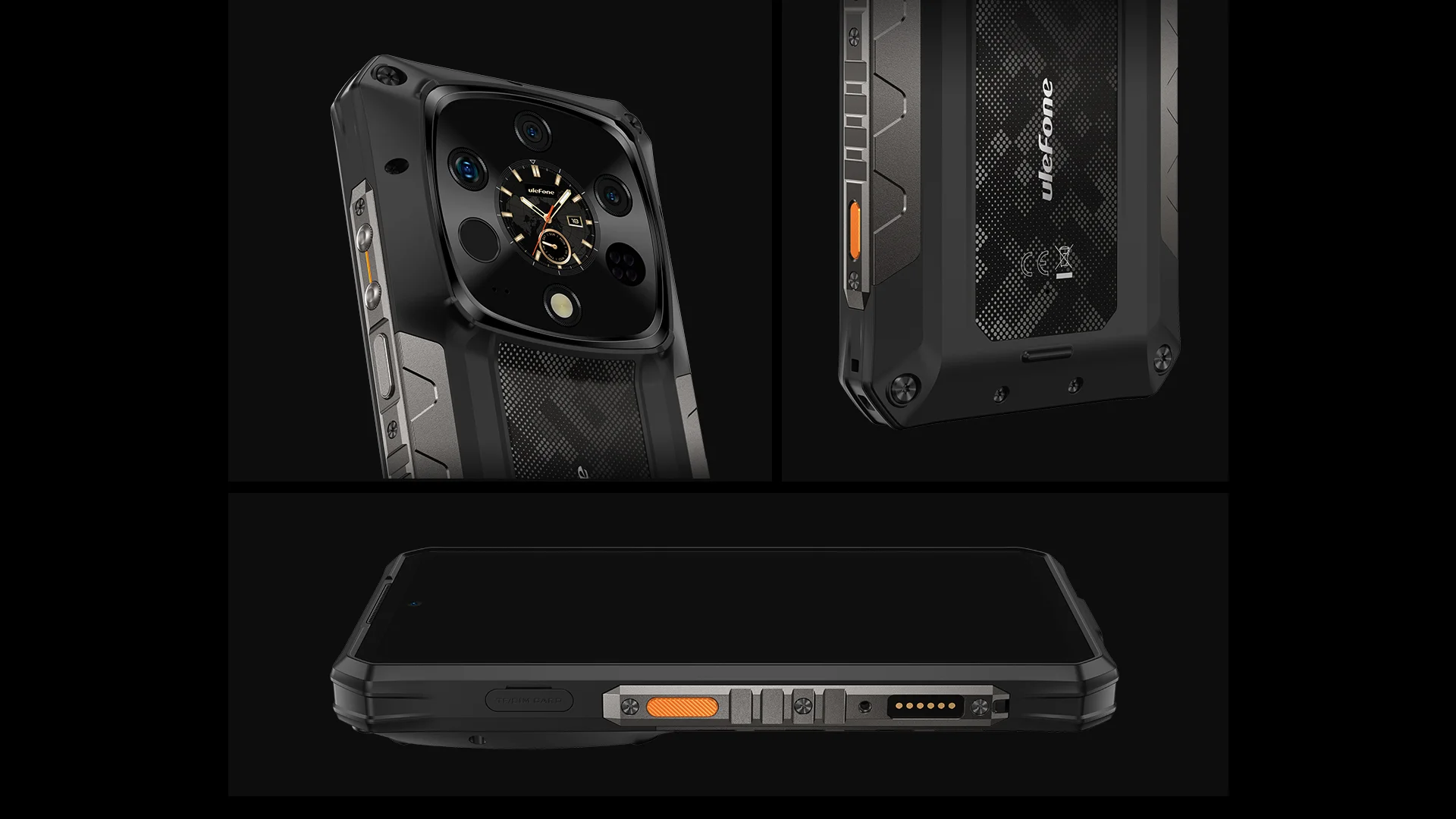

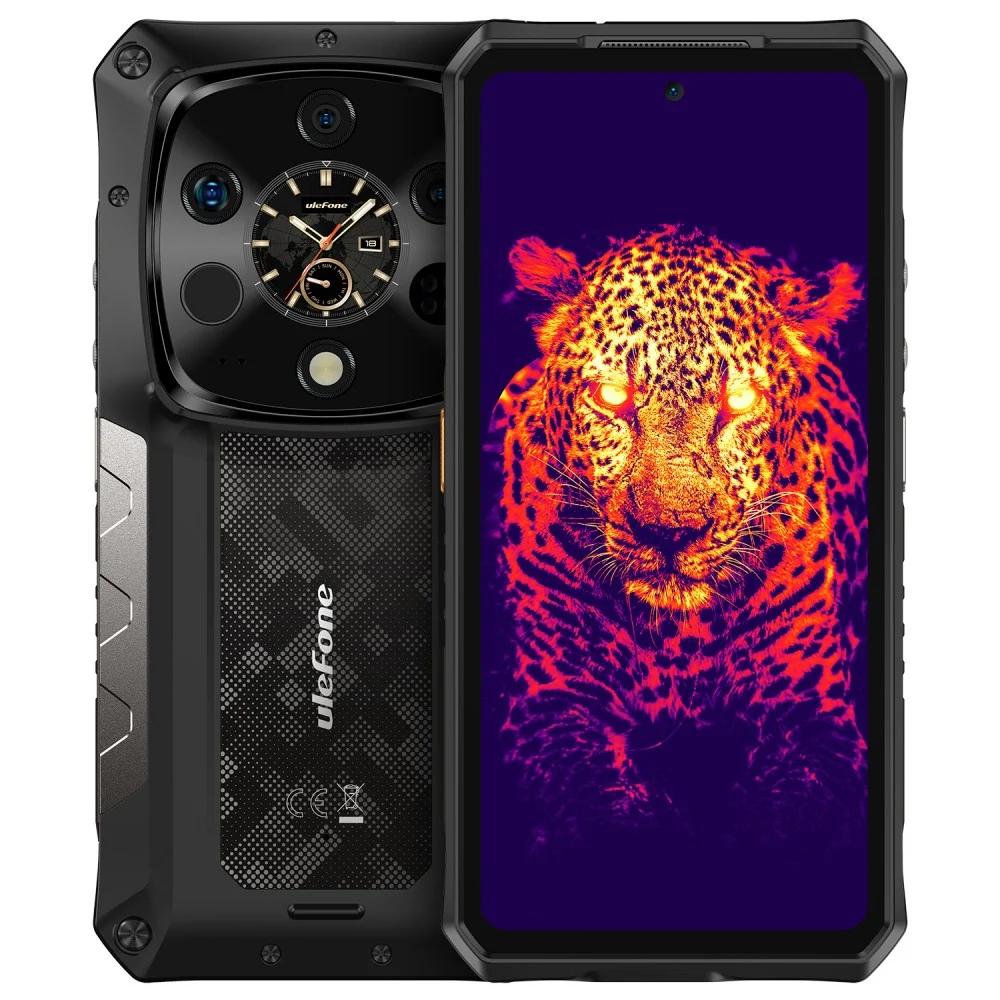

Armor 28 Ultra Thermal Version

Specifications

Size and Weight
Height: 174.15 mm
Width: 83.6 mm
Depth: 19.4 mm
Weight: 450 grams

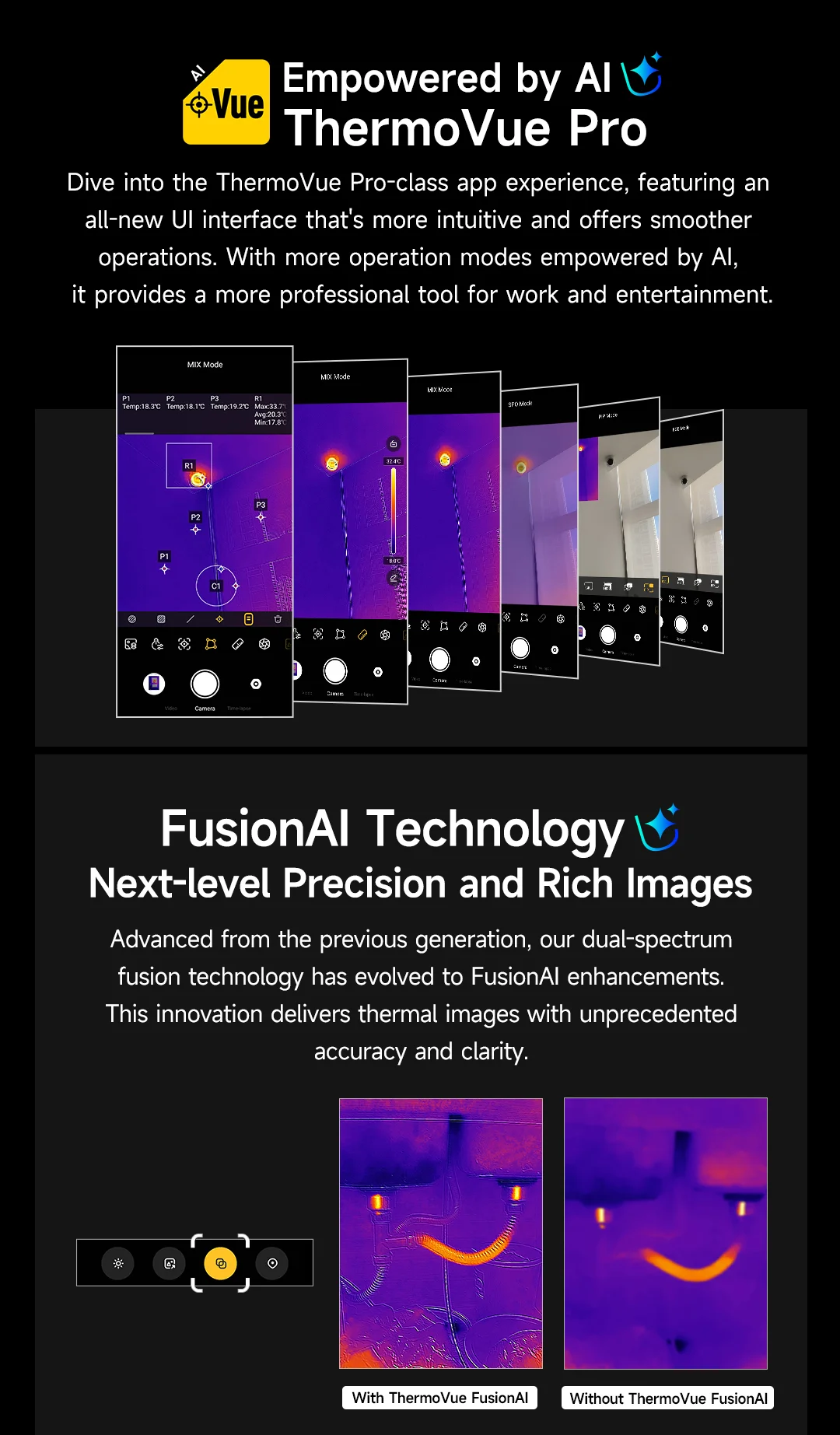

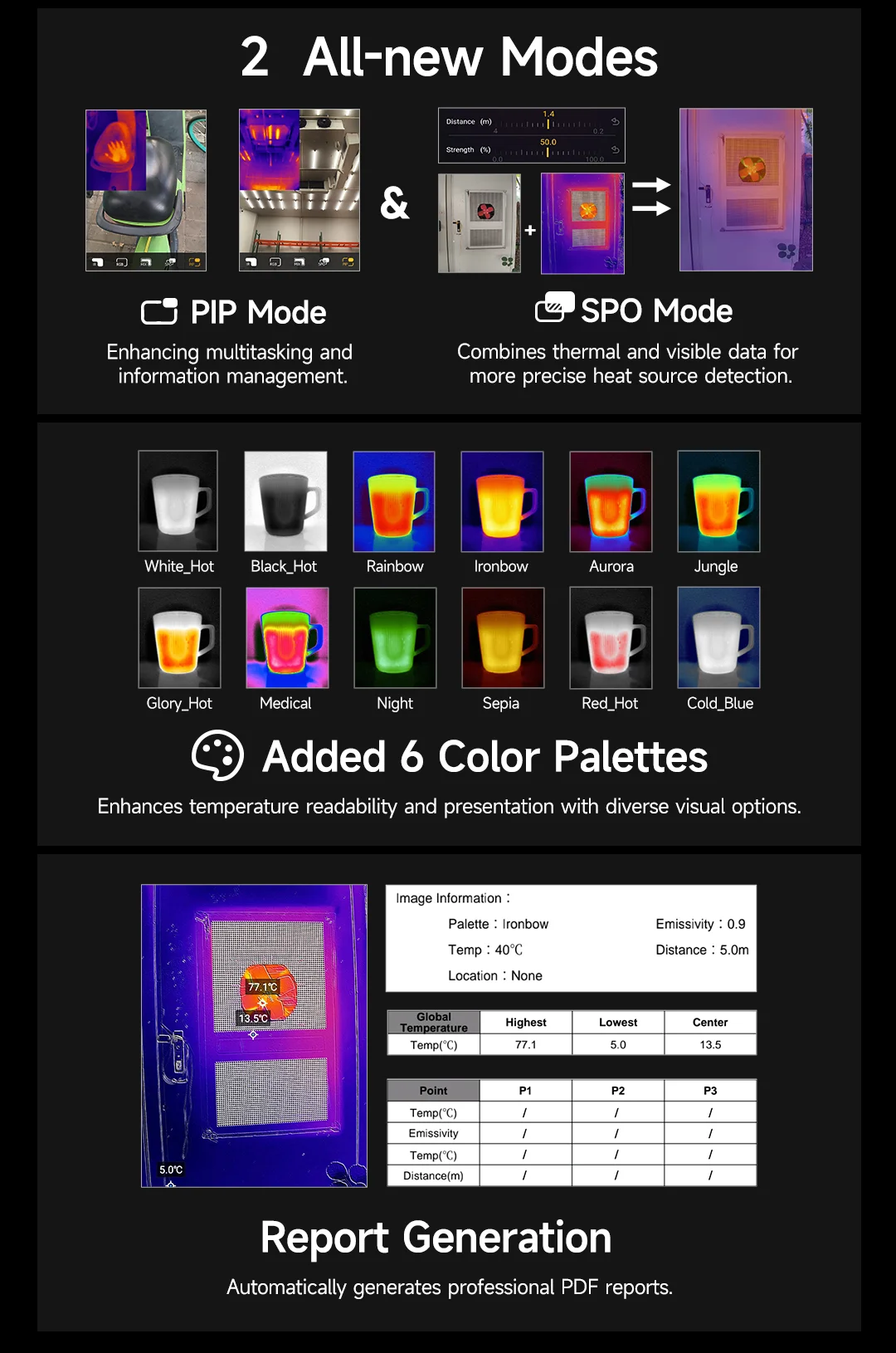

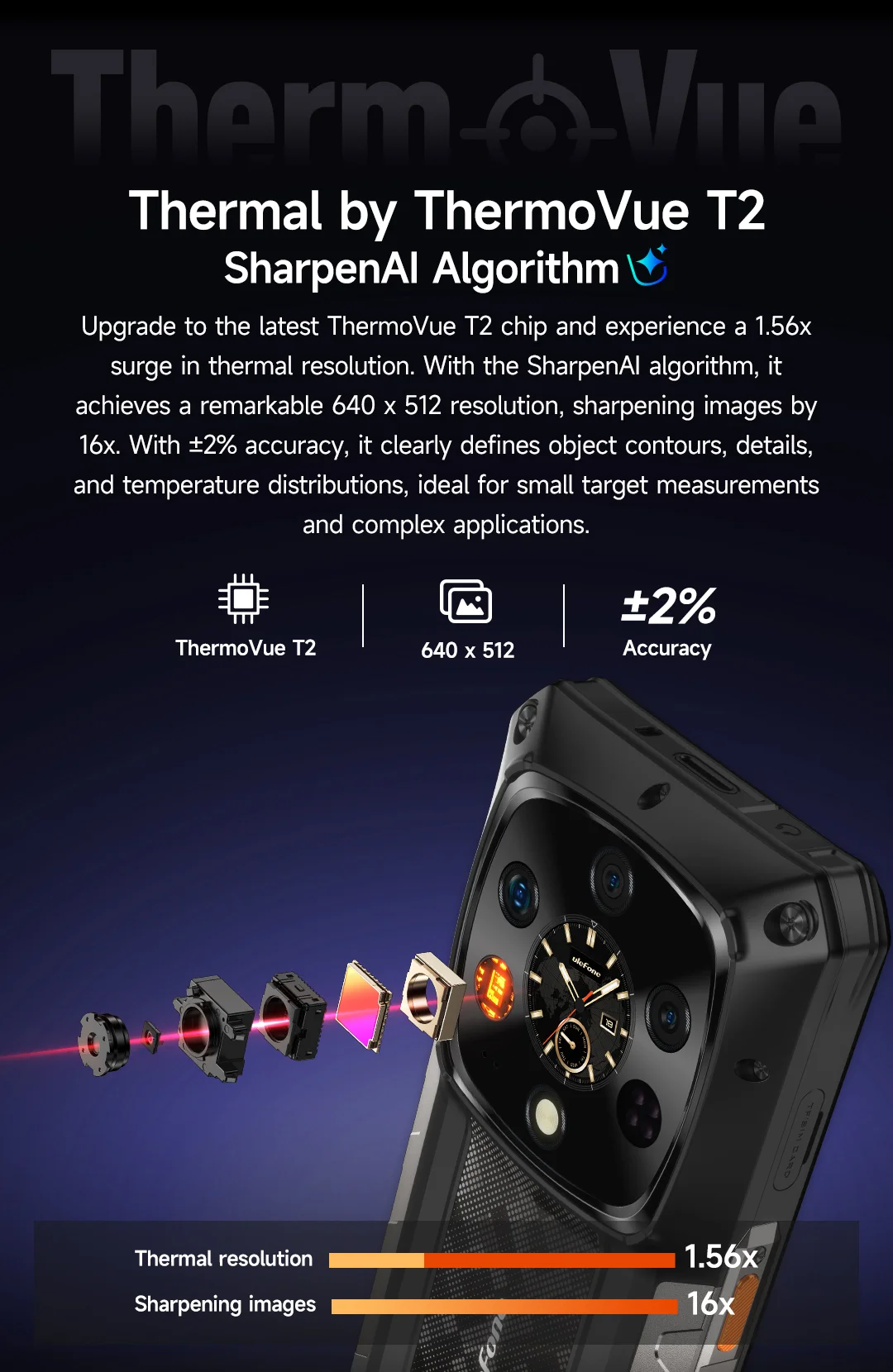

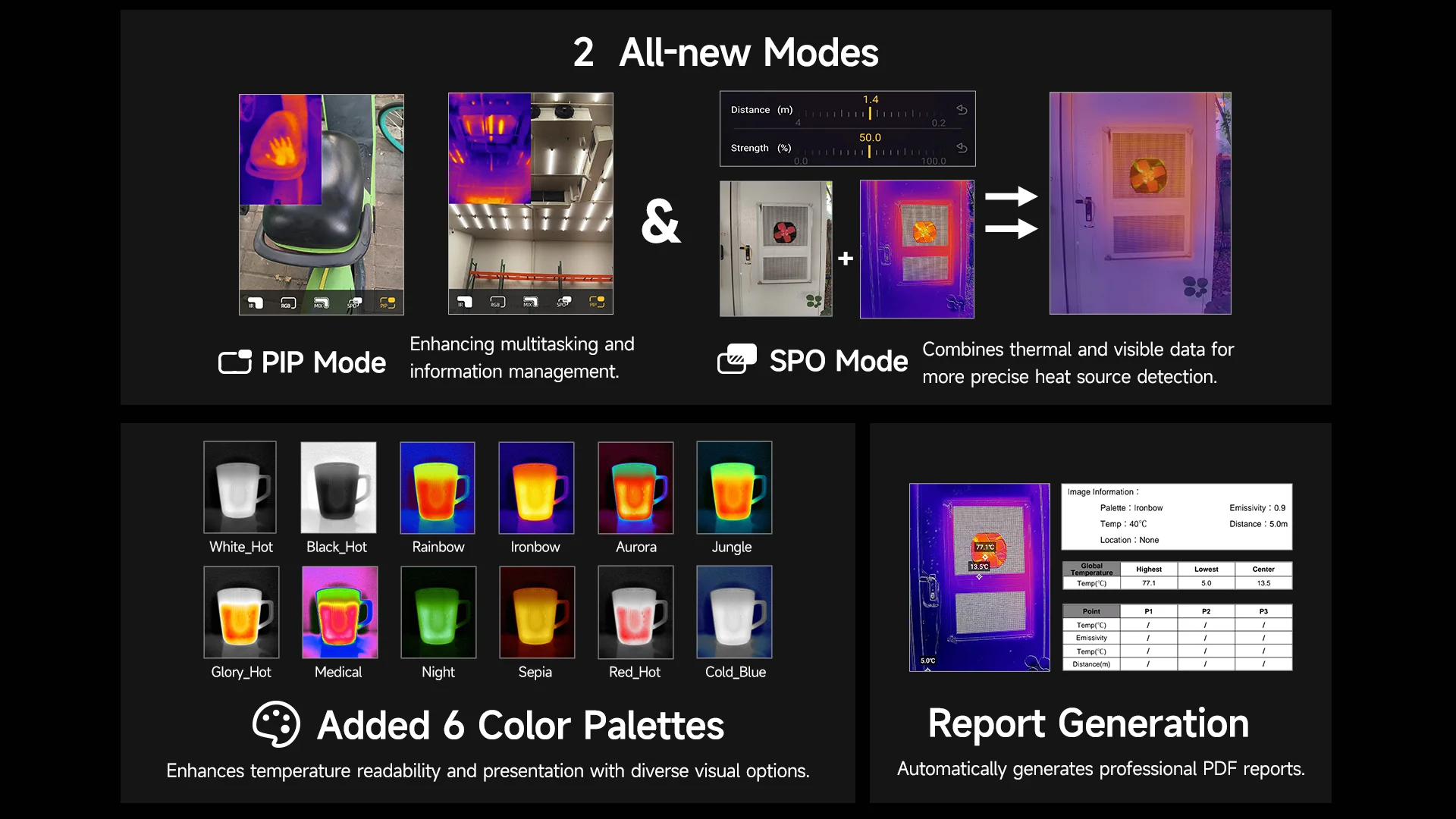

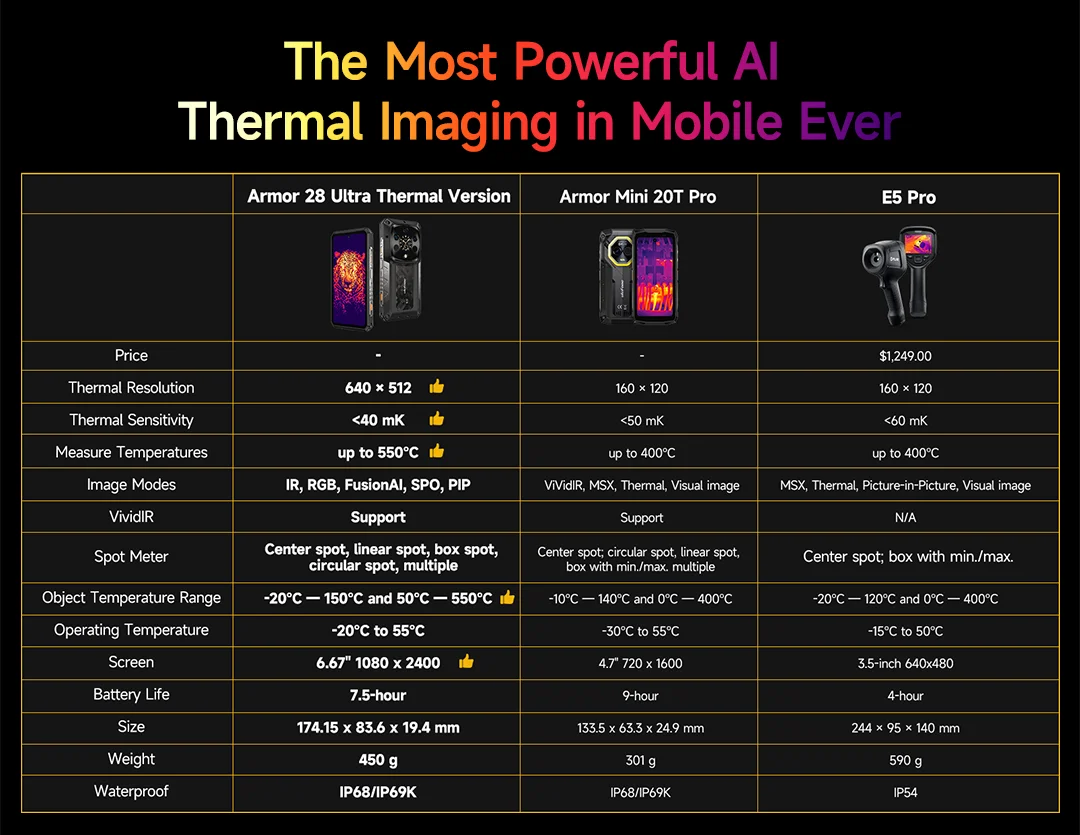

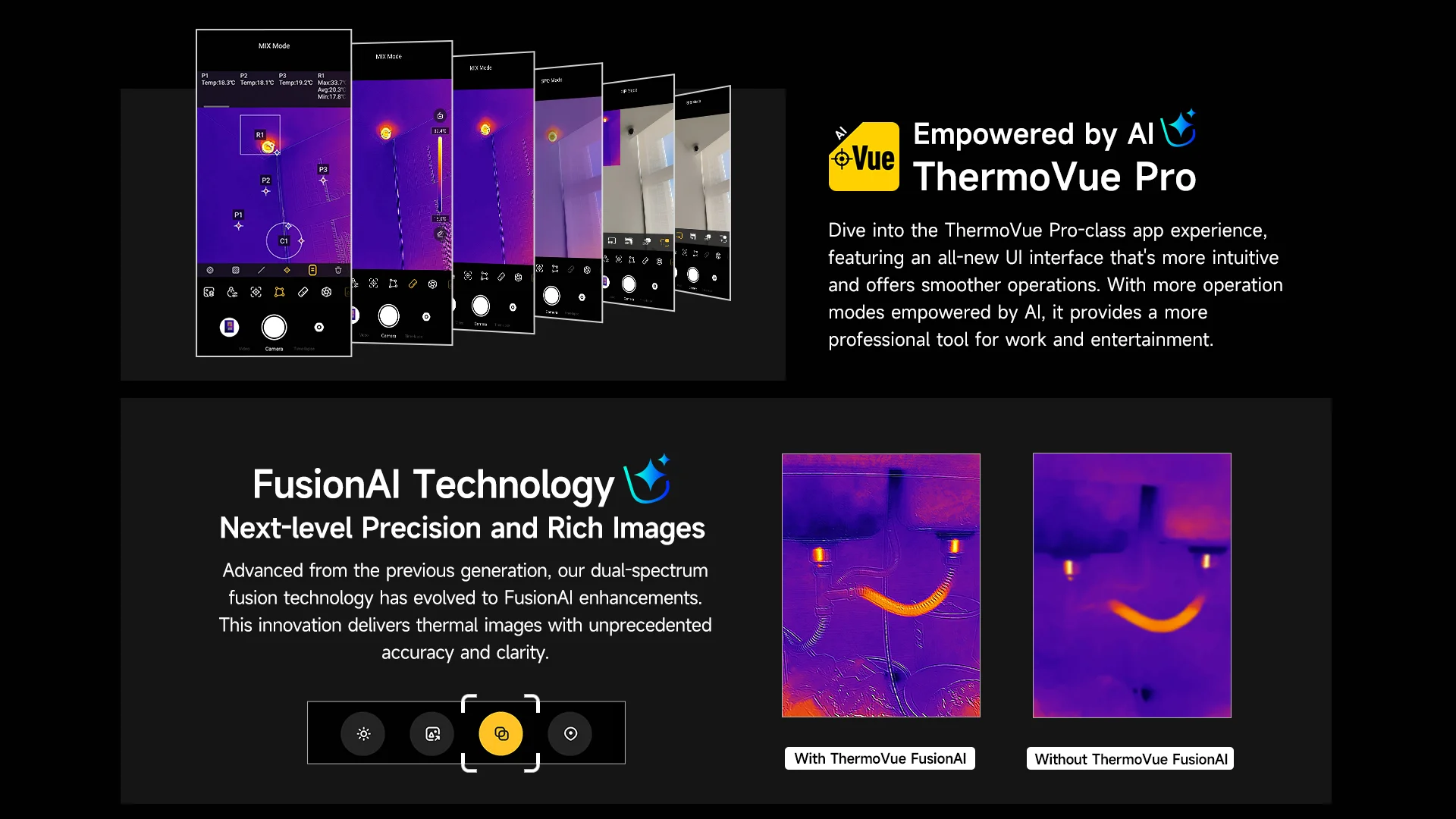

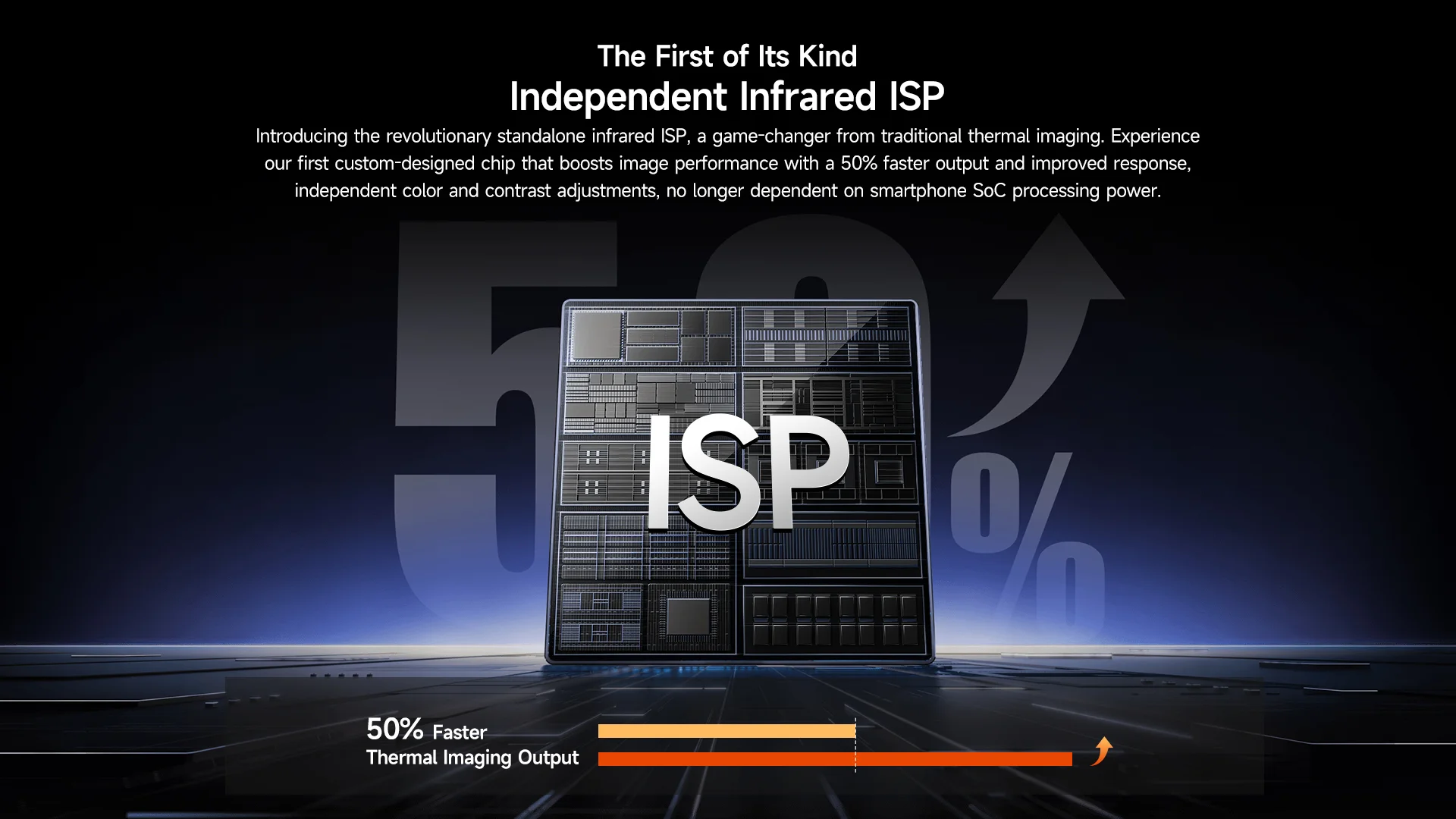

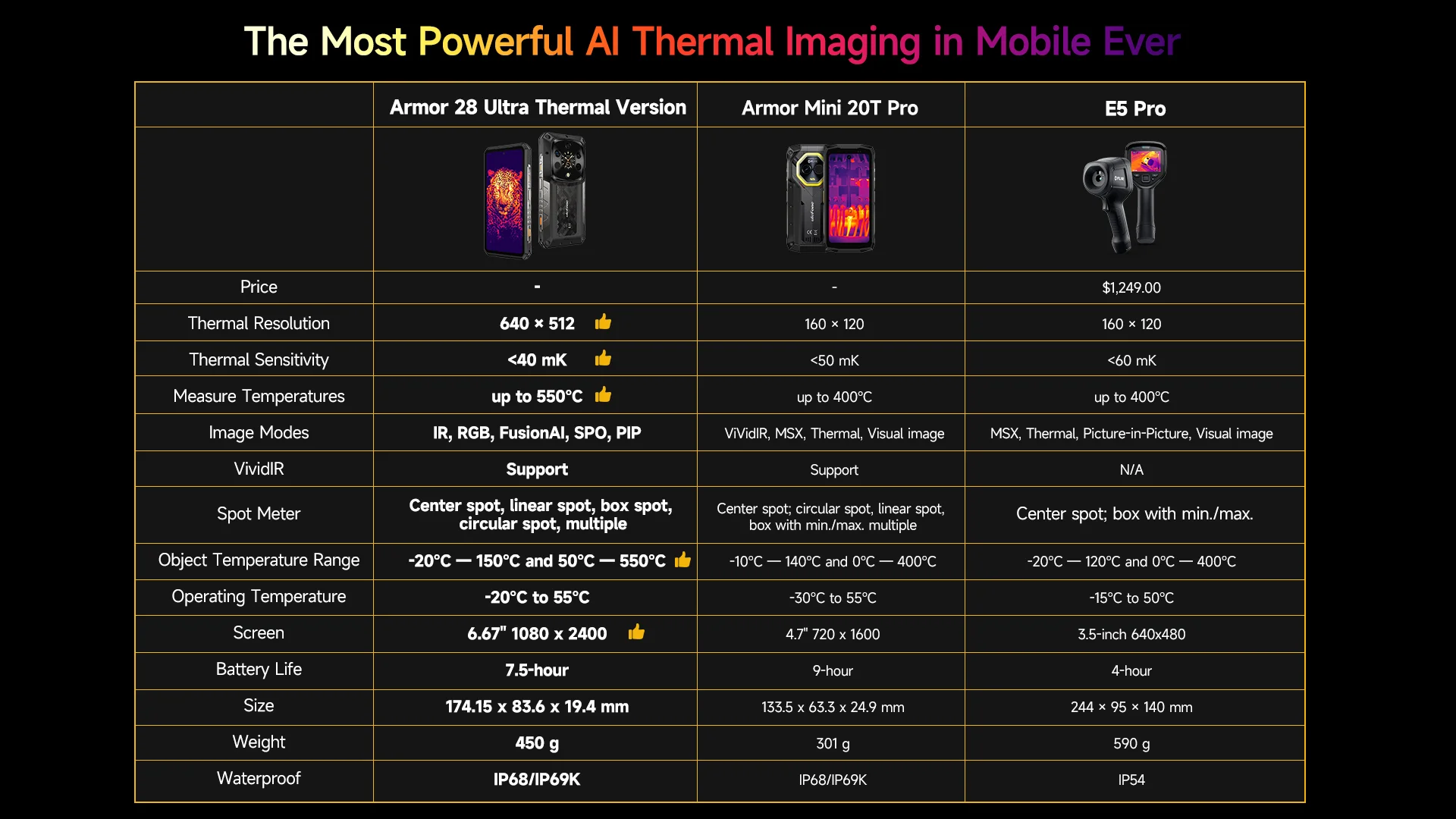

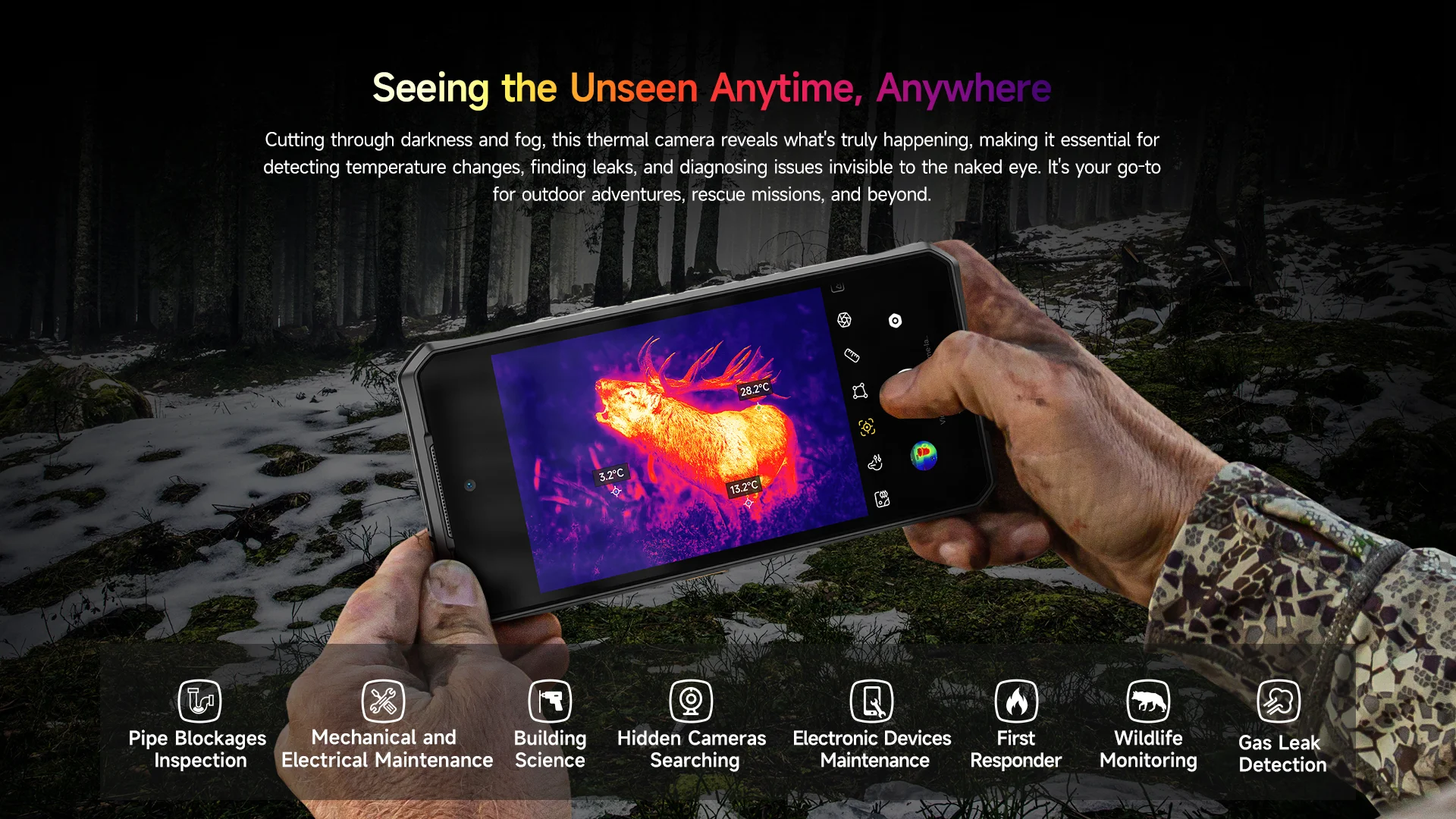

Thermal Imaging

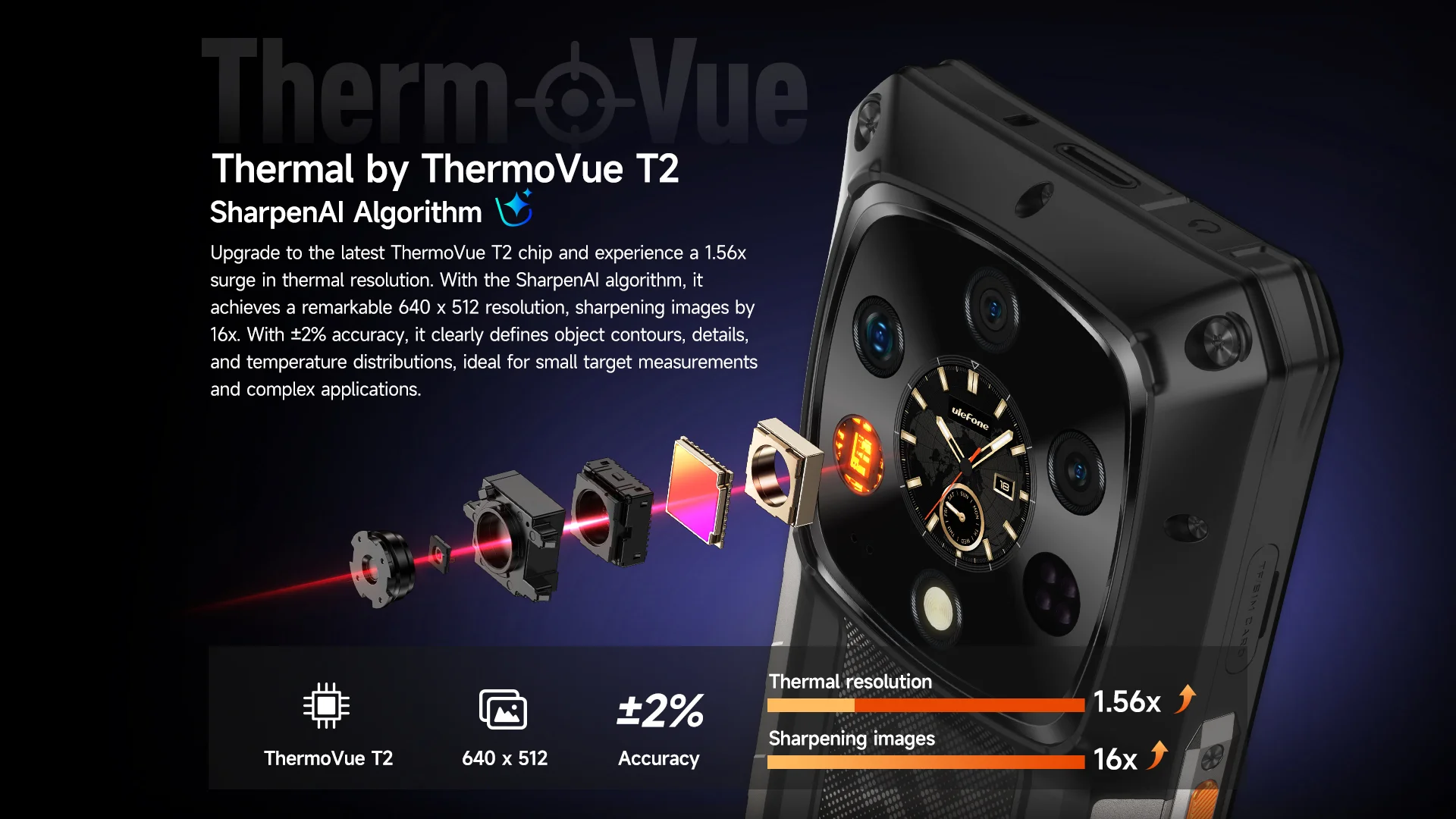

ThermoVue T2
Thermal Resolution: 640 x 512
Refresh Rate: 25Hz
Pixel Pitch: 12μm
Sensitivity: < 40mk
Measurable Temperature Range: -20°C to 550°C
Accuracy: ±2℃

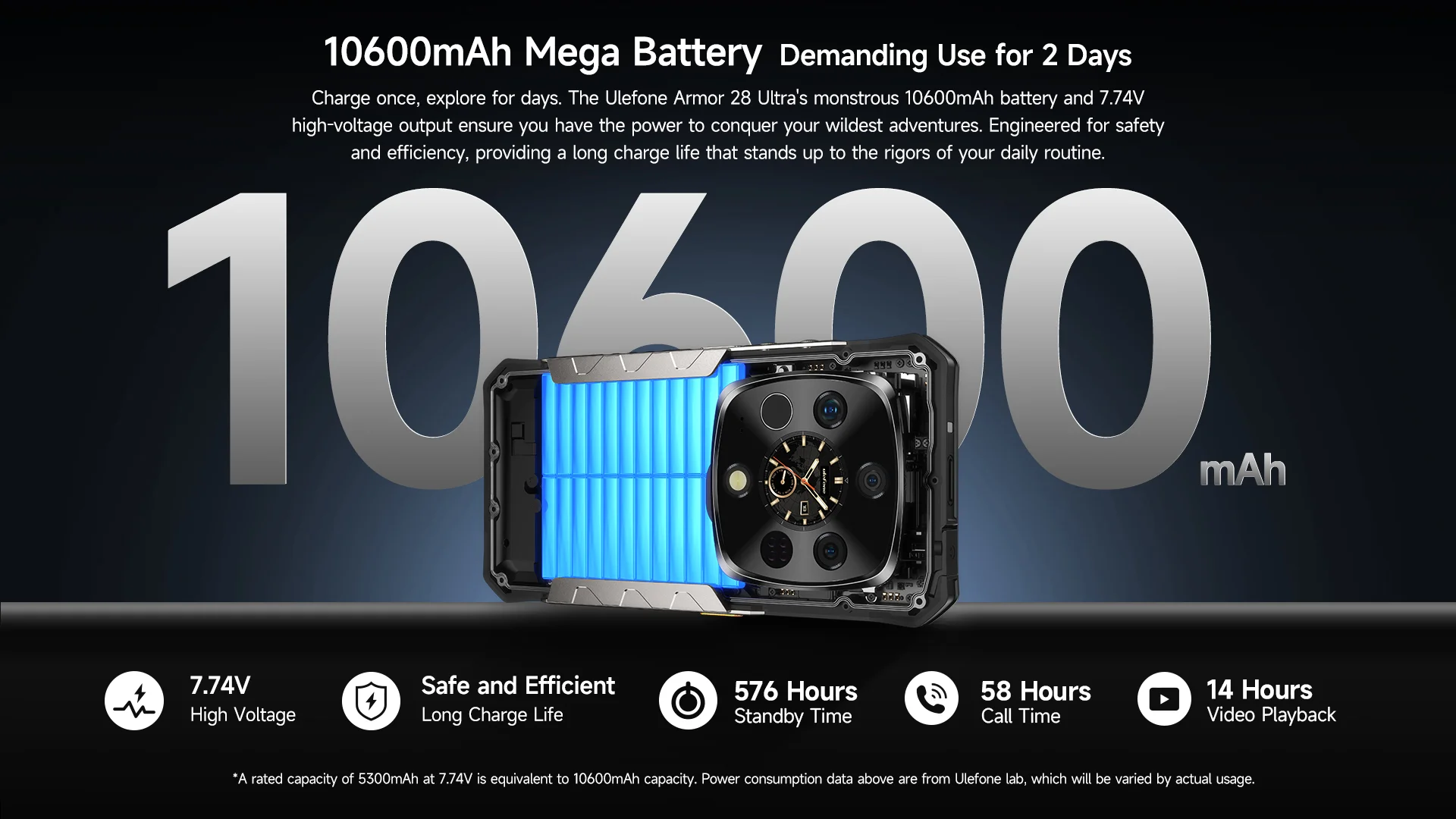

Charging and battery

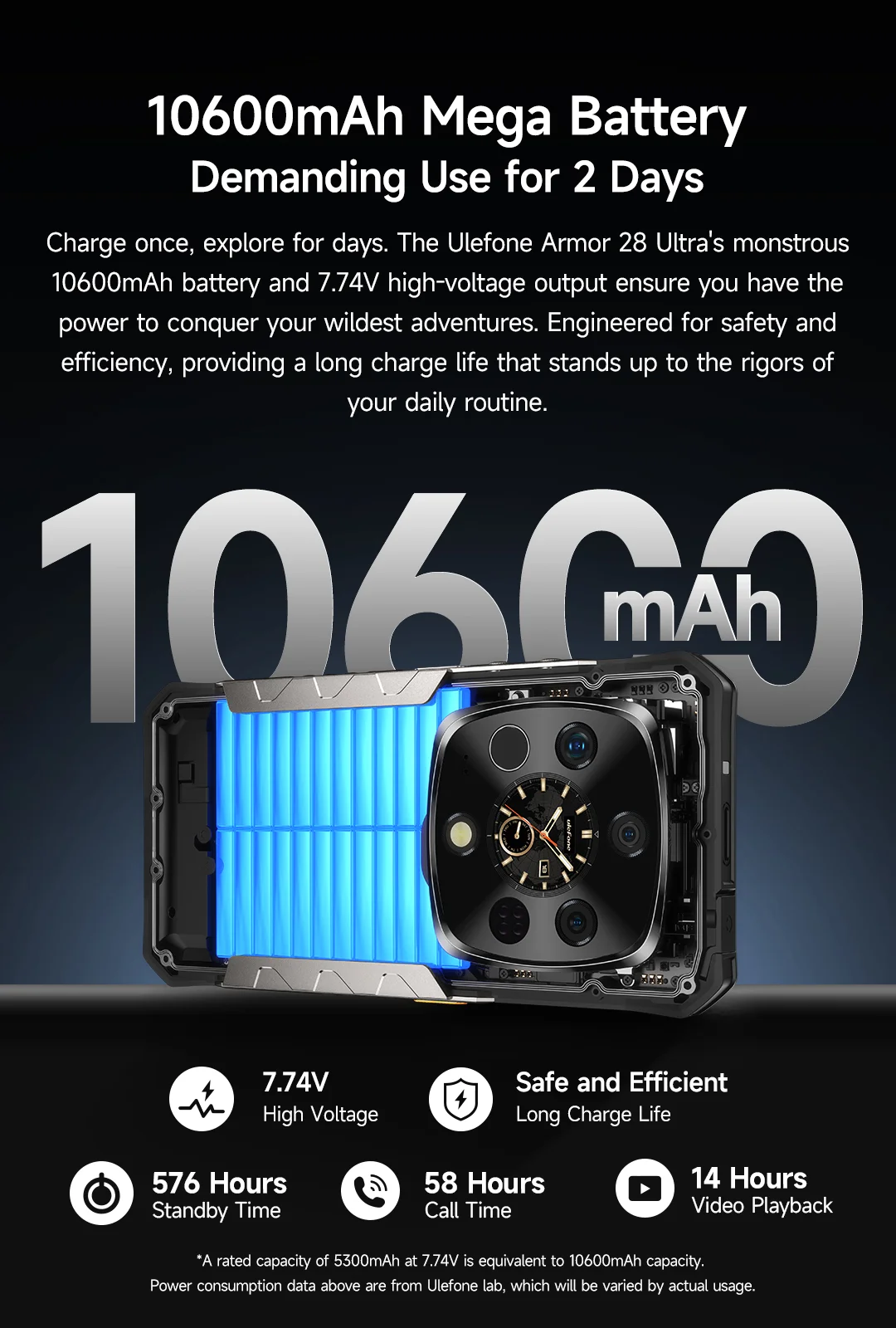

10600mAh Battery
lithium-ion polymer battery
USB Type-C port

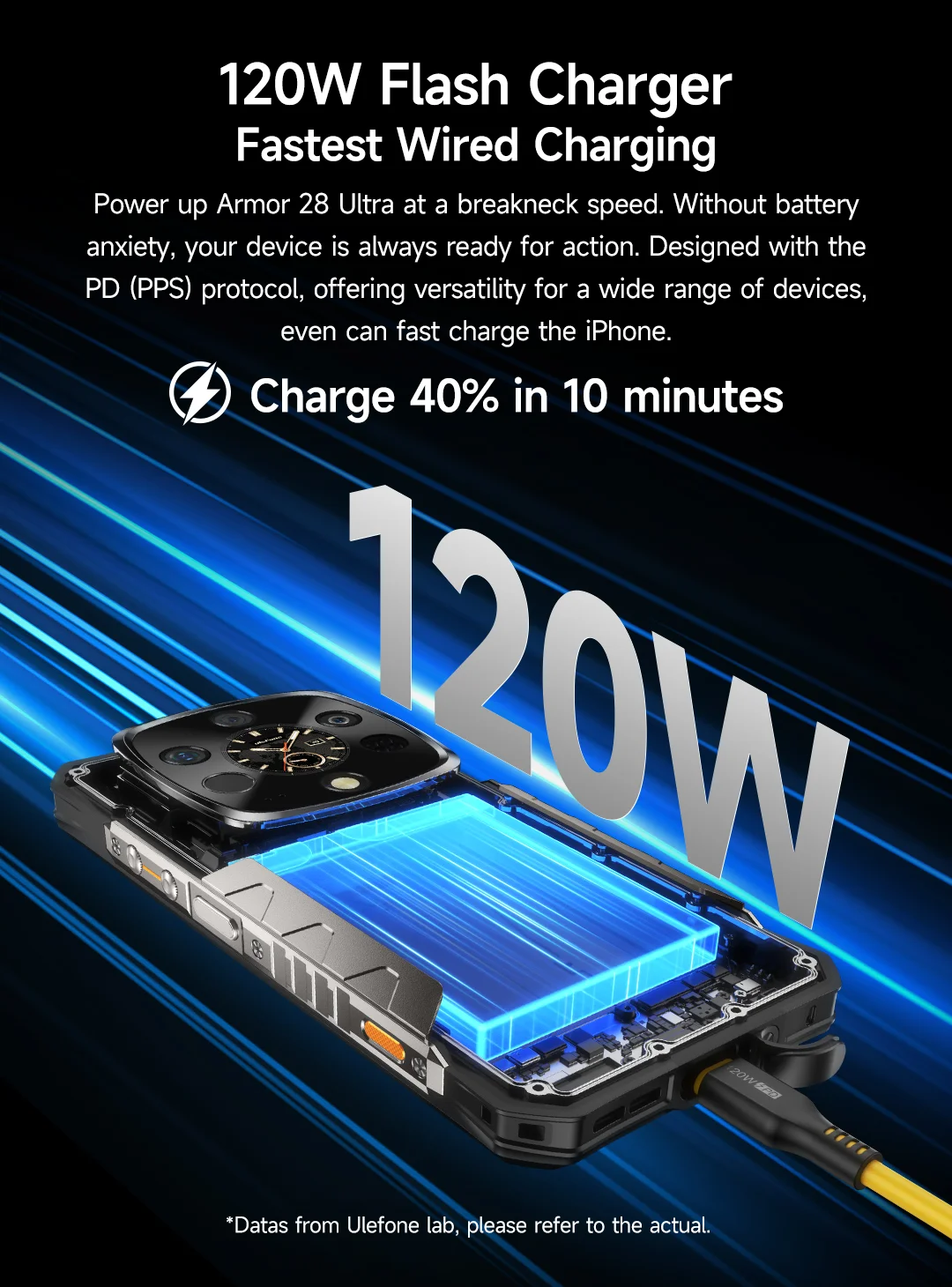

Supports 120W fast charging

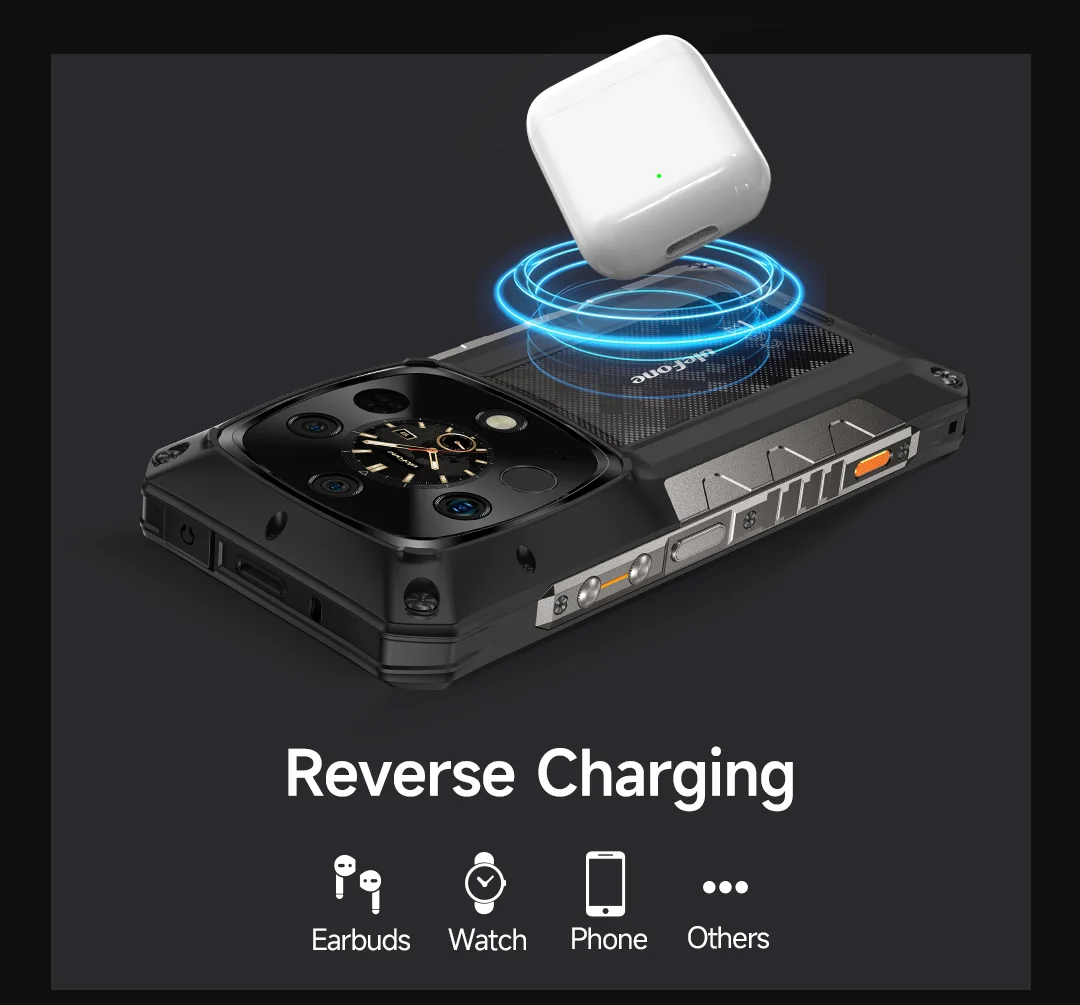

Supports 50W wireless charging

Battery Life
Standby Time Up to 576 Hours
Talk Time Up to 58 Hours

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.*Non-removable battery. Removing the battery may cause damage to the device.*Use with original charger and data cable, the max charging power can reach 120W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.
*Under the Ulefone private protocol, the max wireless charging power is 50W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

Rugged
Splash, Water and Dust Resistant
Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529
Rated IP69K under IEC standard 60529
MIL-STD-810H Certification

*Armor 28 Ultra Thermal Version is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes).
*Charger and accessories are not water-resistant.
*Splash, water and dust resistance are not permanent and might decrease as a result of normal wear.
*Do not attempt to charge a wet Armor 28 Ultra Thermal Version.
*Liquid damage not covered under warranty.

Processor

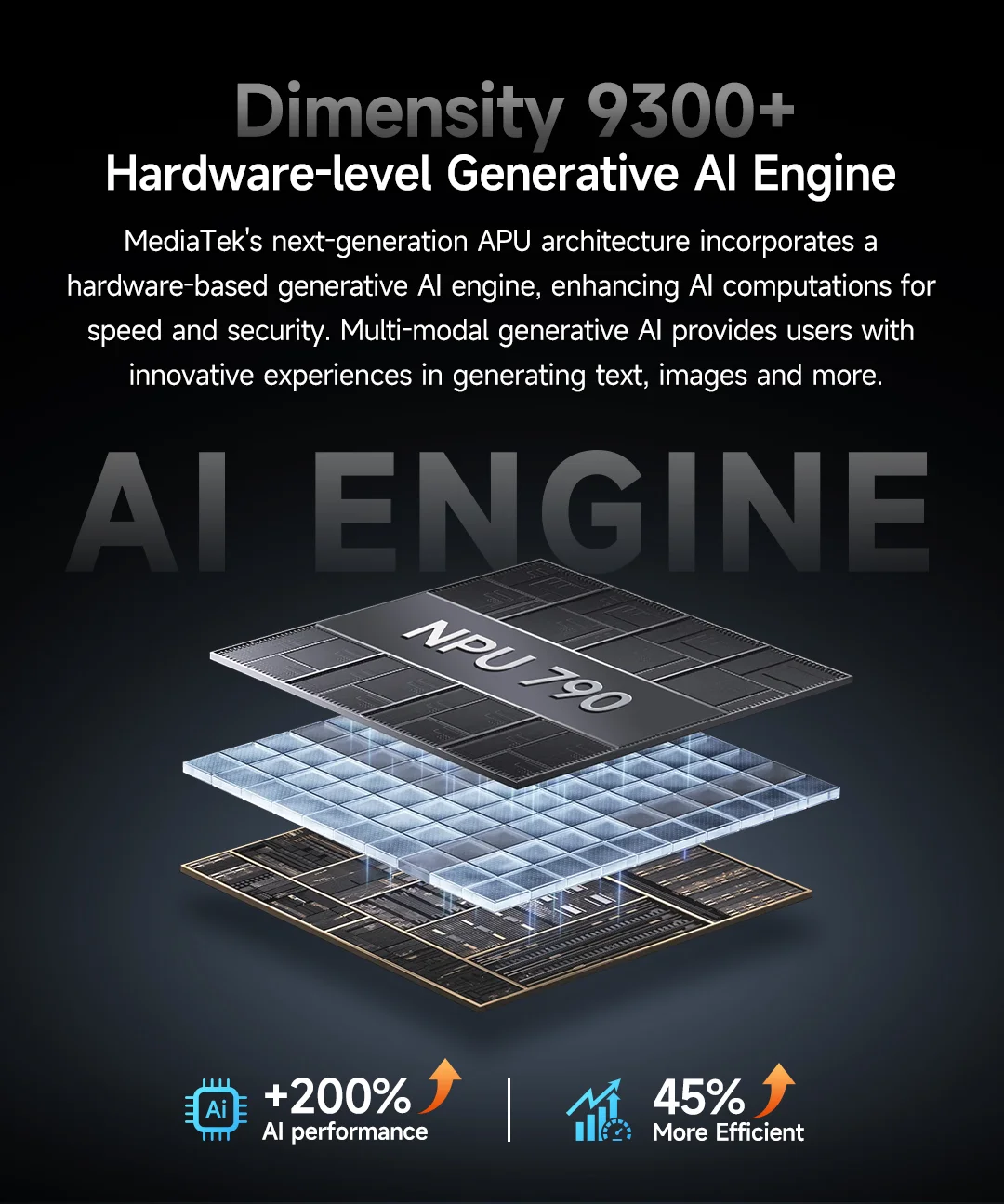

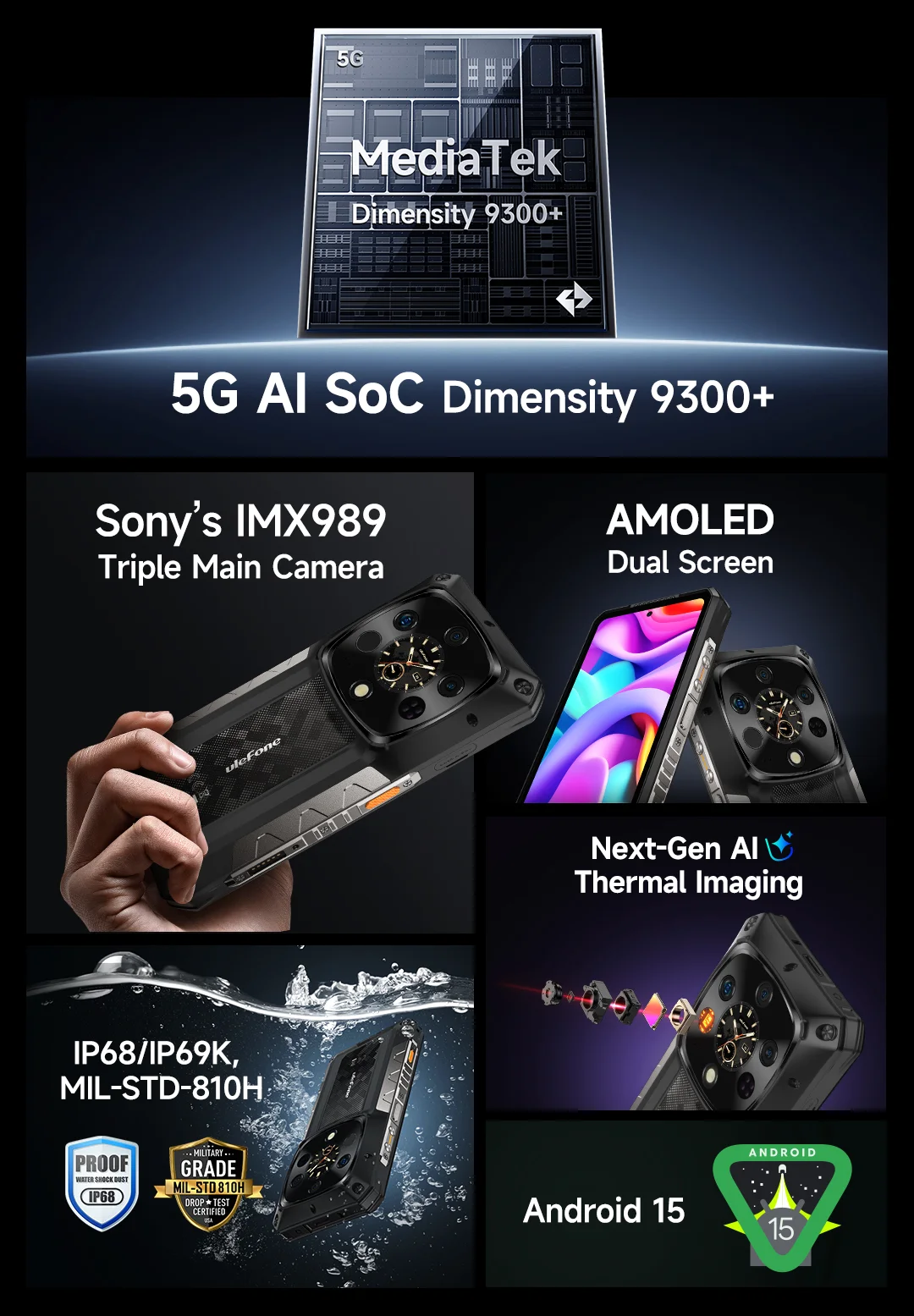

MediaTek Dimensity 9300+
CPU: MT6989W
CPU architecture: 1x Arm Cortex-X4 up to 3.4GHz, 3x Arm Cortex-X4 up to 2.85GHz, 4x Arm Cortex-A720 up to 2.0GHz
CPU frequency: Octa Core, up to 3.4GHz

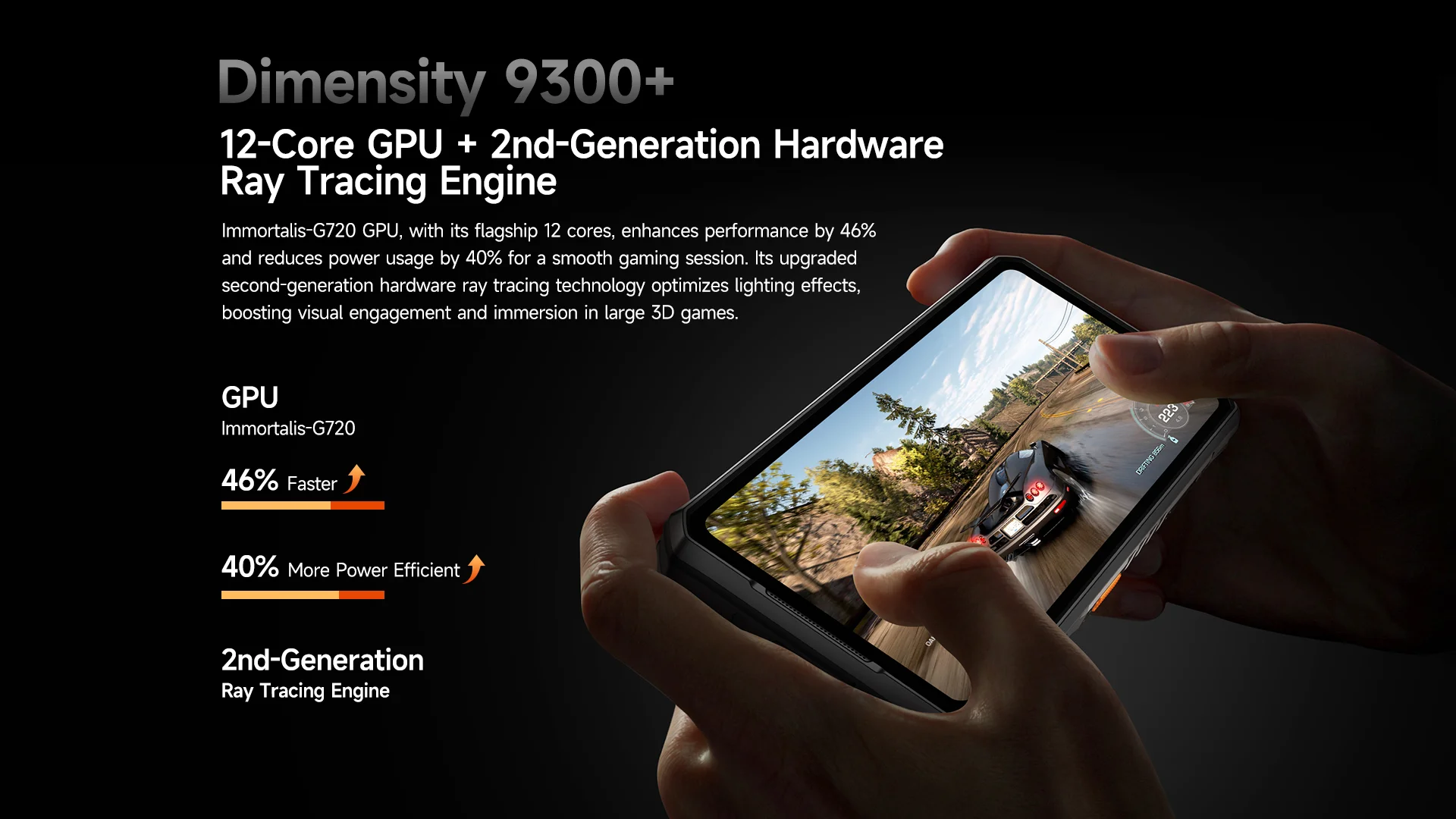

GPU: Immortalis-G720AI：MediaTek NPU 790

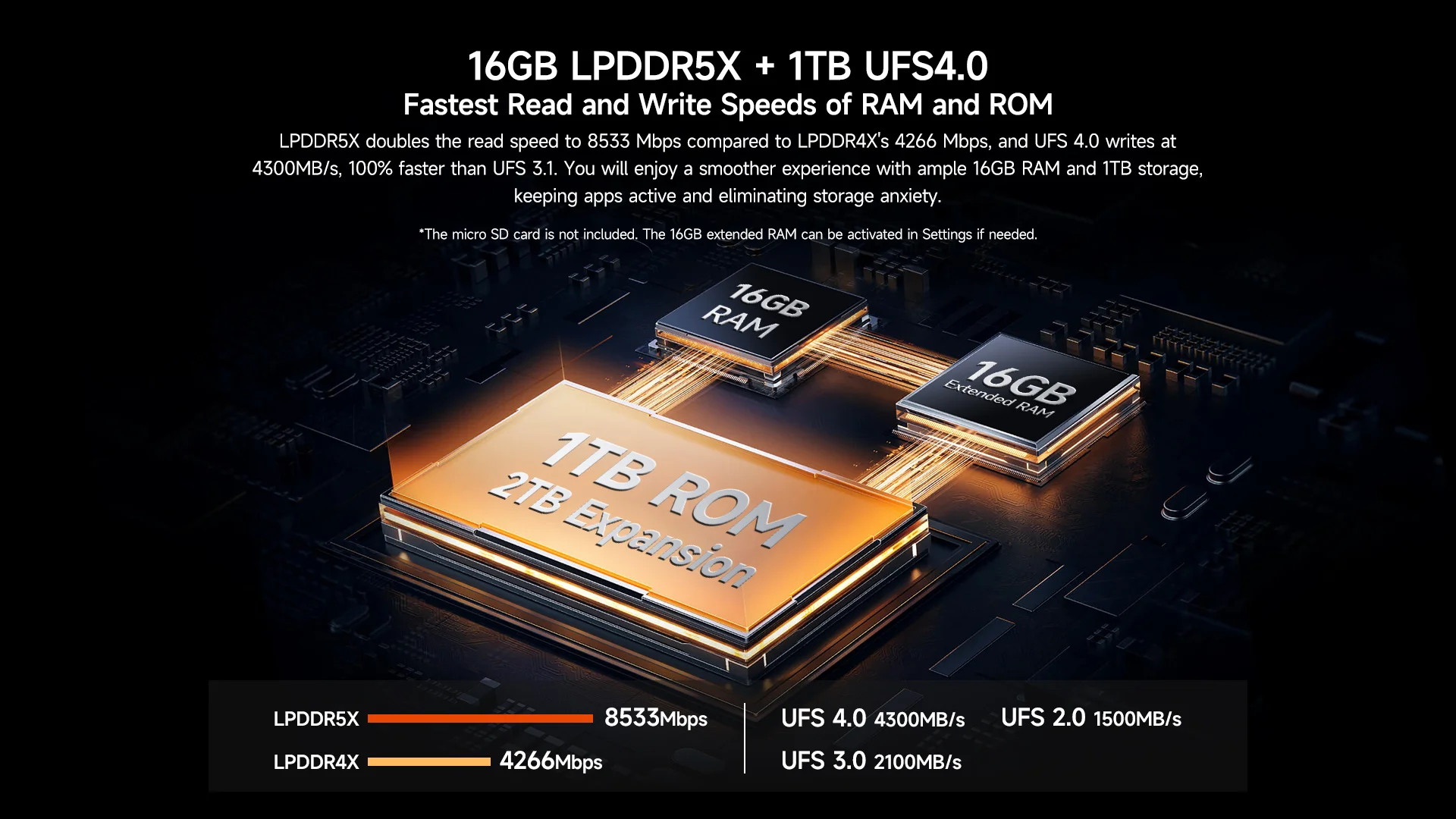

Storage and RAM
16GB+1TBRAM: 16GB large memory，LPDDR5XFlash storage: 1TB phone storage, UFS 4.0microSD memory card Up to 2TB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
*The Virtual Memory Expansion can be activated in Settings and adds up to 16GB of RAM. Some software may not be compatible with this feature.
*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

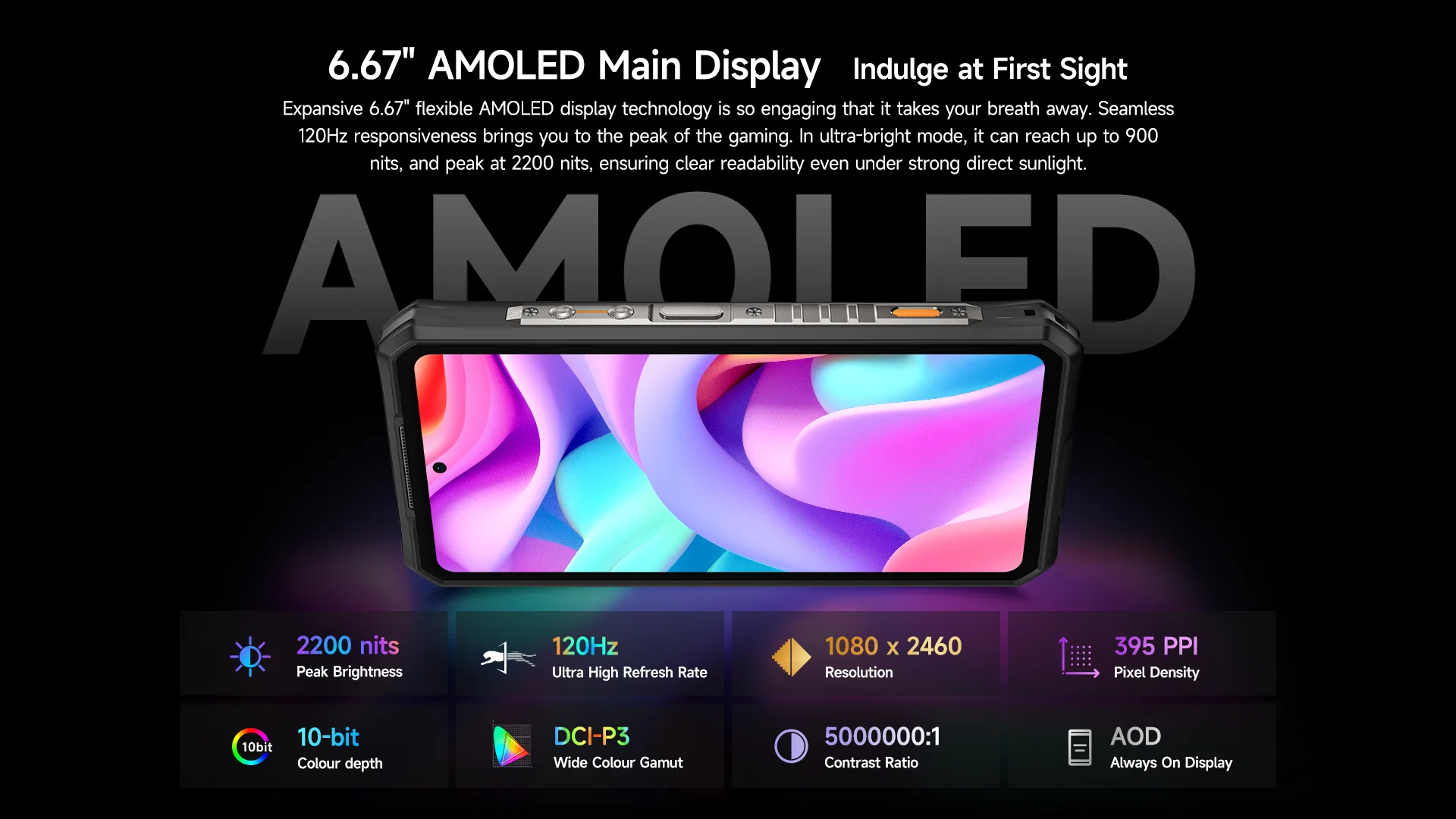

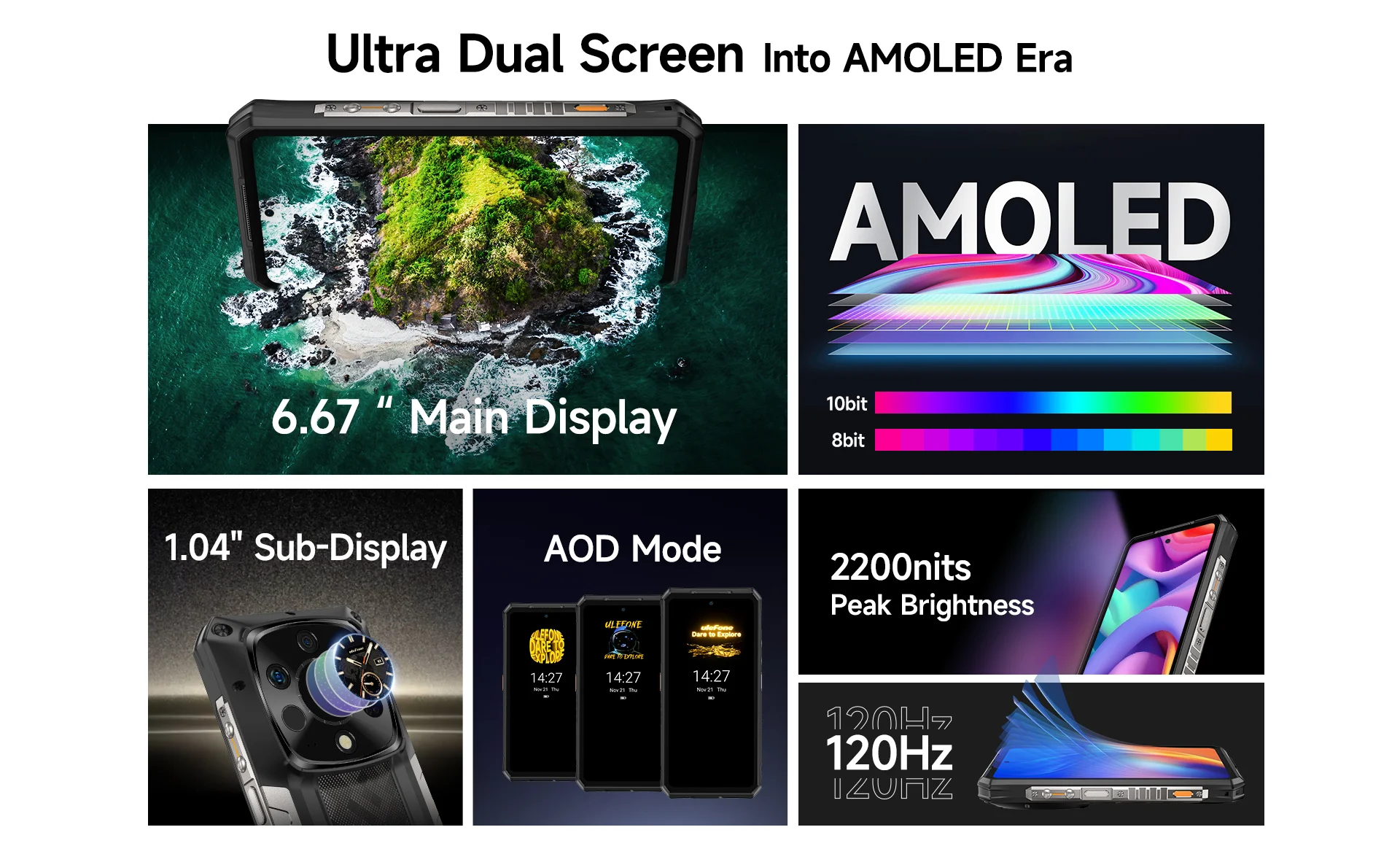

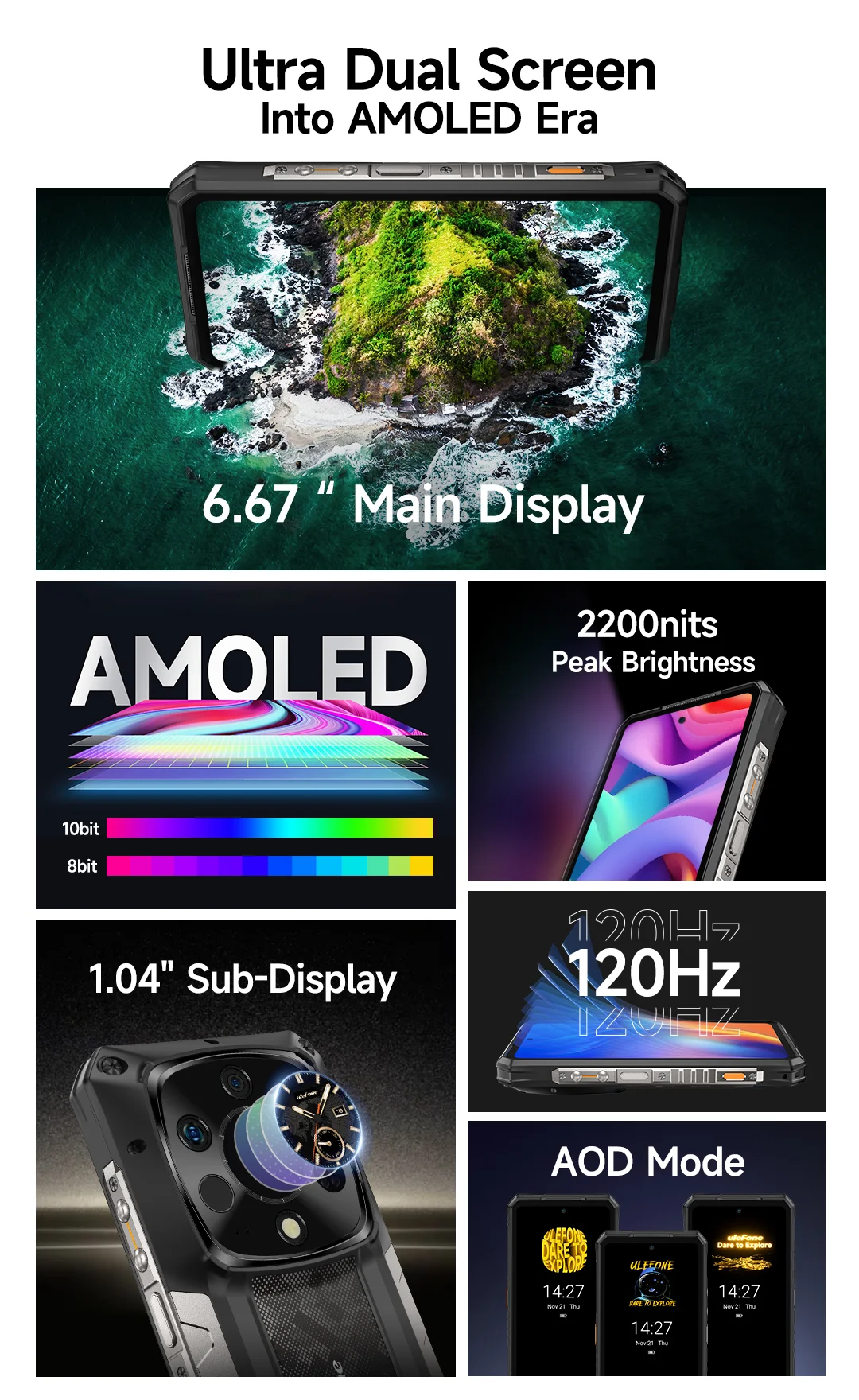

Main Display
6.67‑inch 120Hz AMOLED
AOD (Always-on Display）
AMOLED
Peak Brightness：2200 nits
20:9, 1080 x 2400 FHD+
395 ppi
Refresh rate: 120 Hz
Corning Gorilla Glass Victus
Fingerprint-resistant oleophobic coating

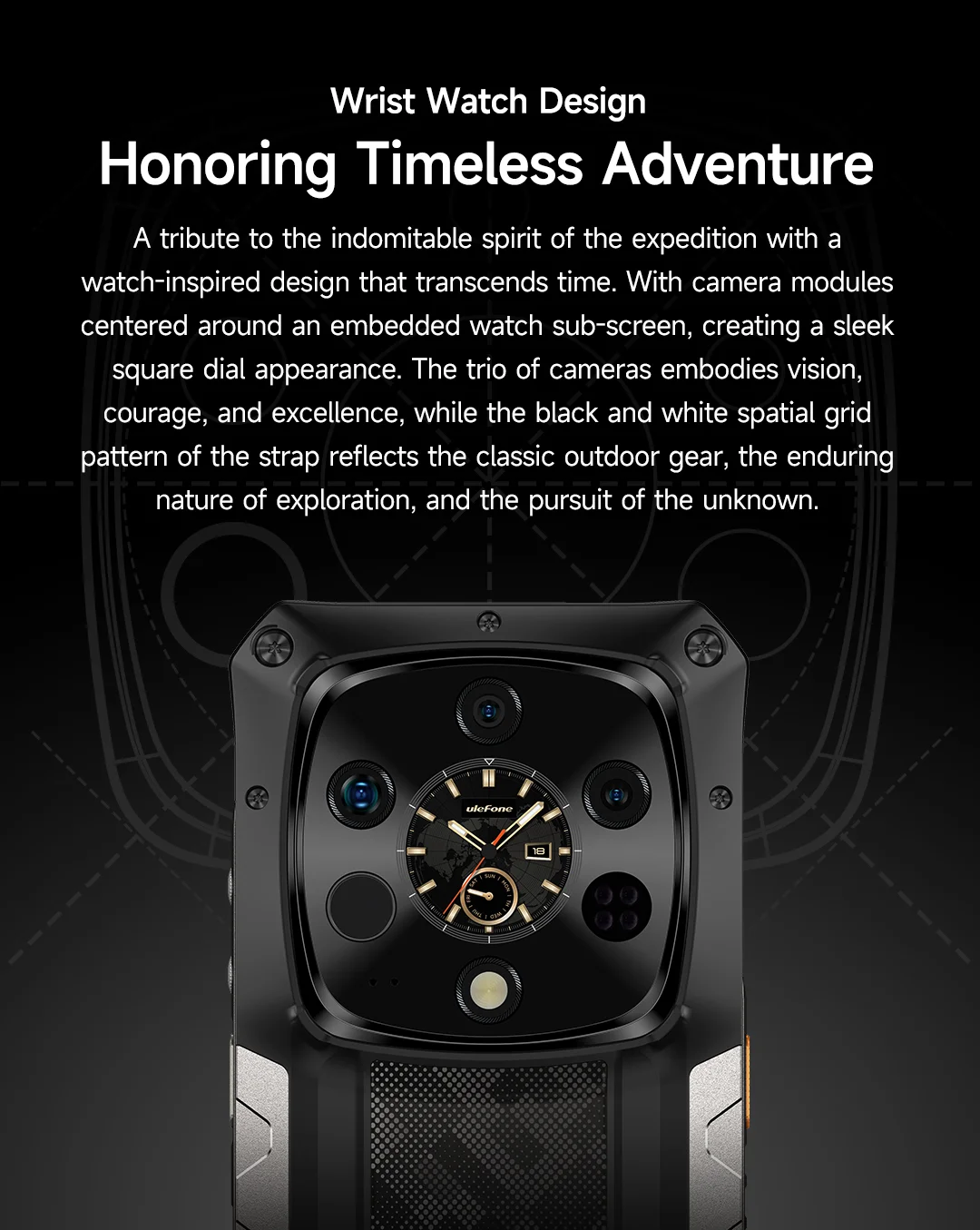

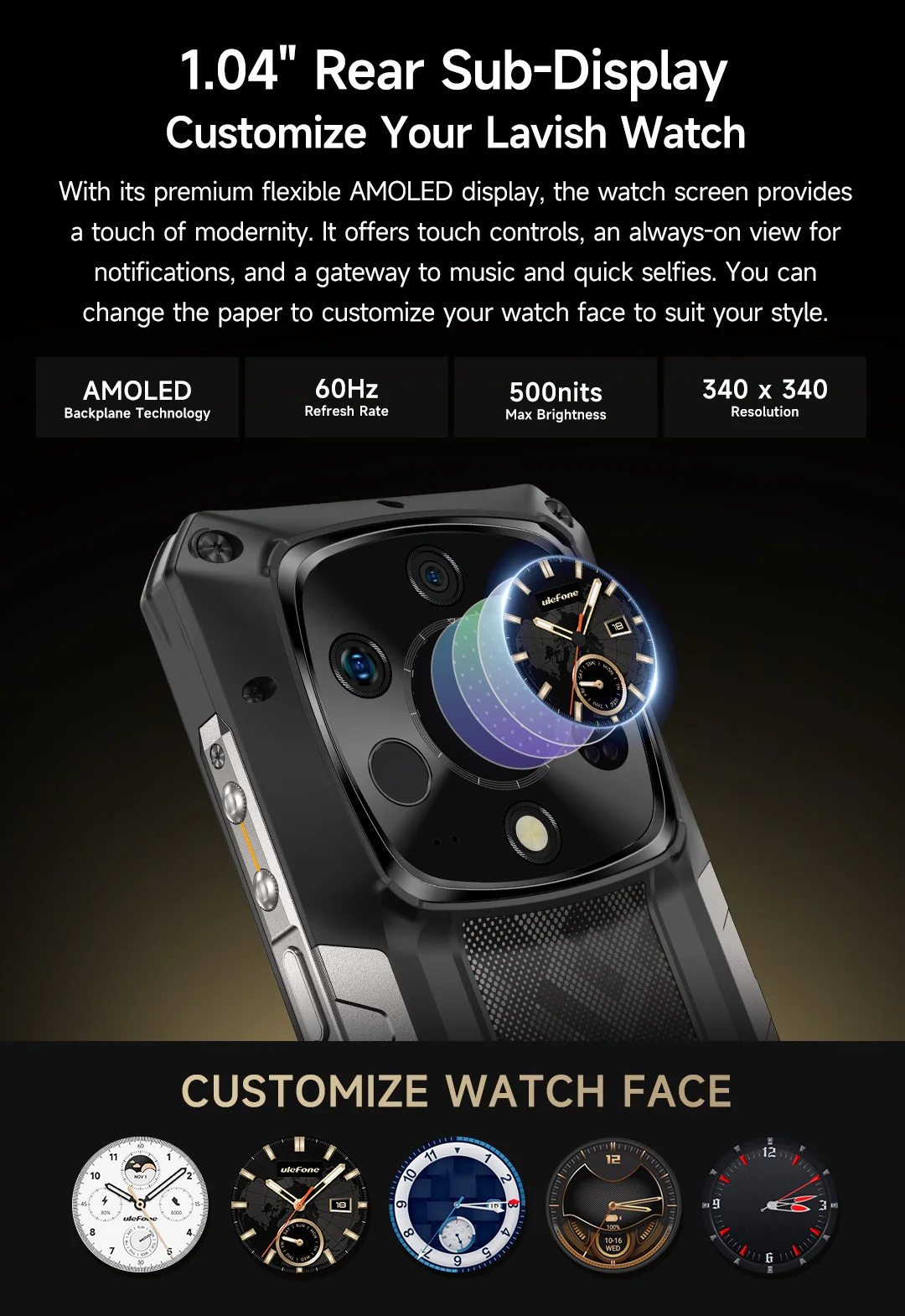

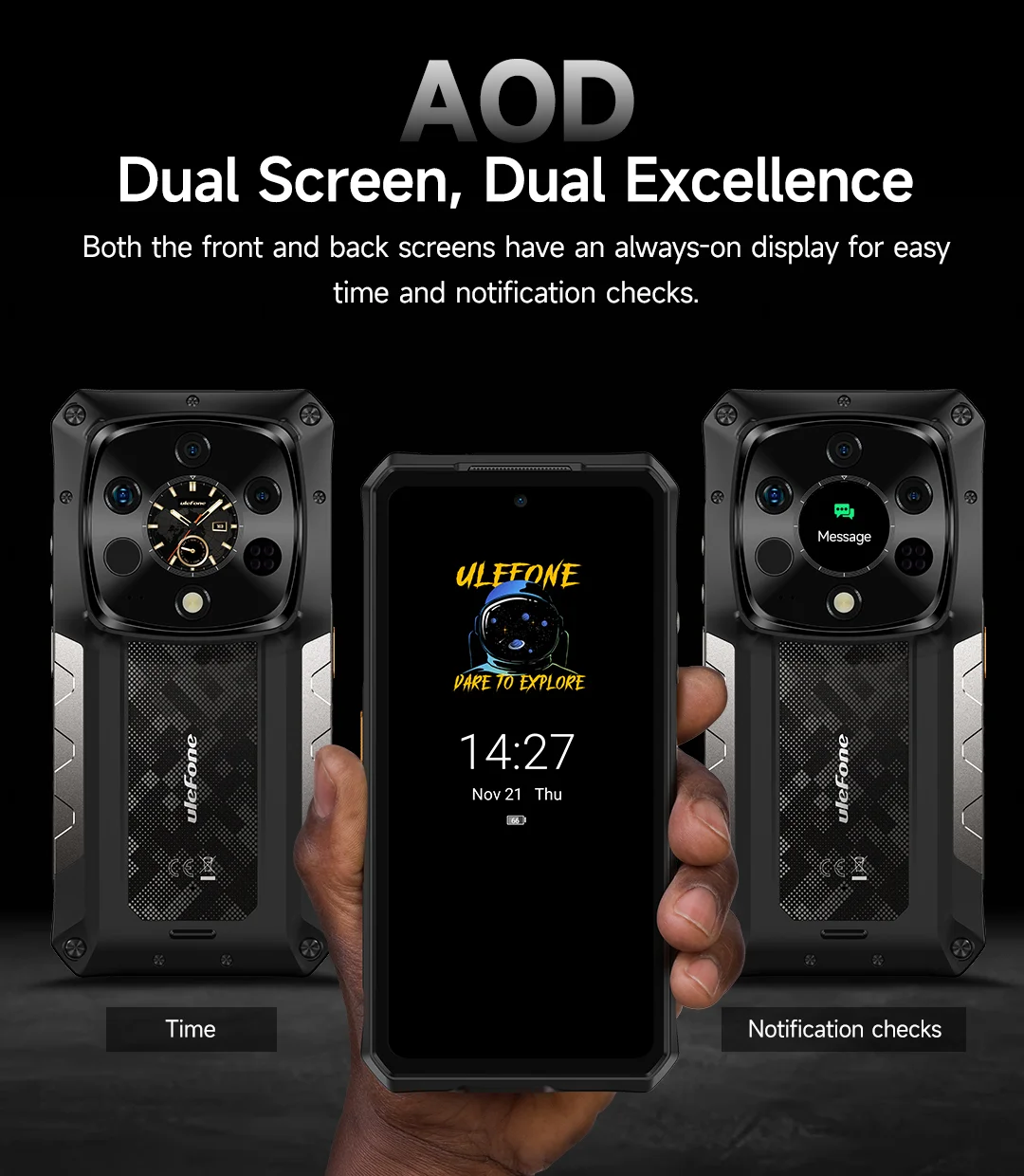

Sub Display
1.04‑inch AMOLED
AMOLED
Peak Brightness：600 nits
340 x 340 Pixels
Refresh rate: 60 Hz
Corning Gorilla Glass Victus

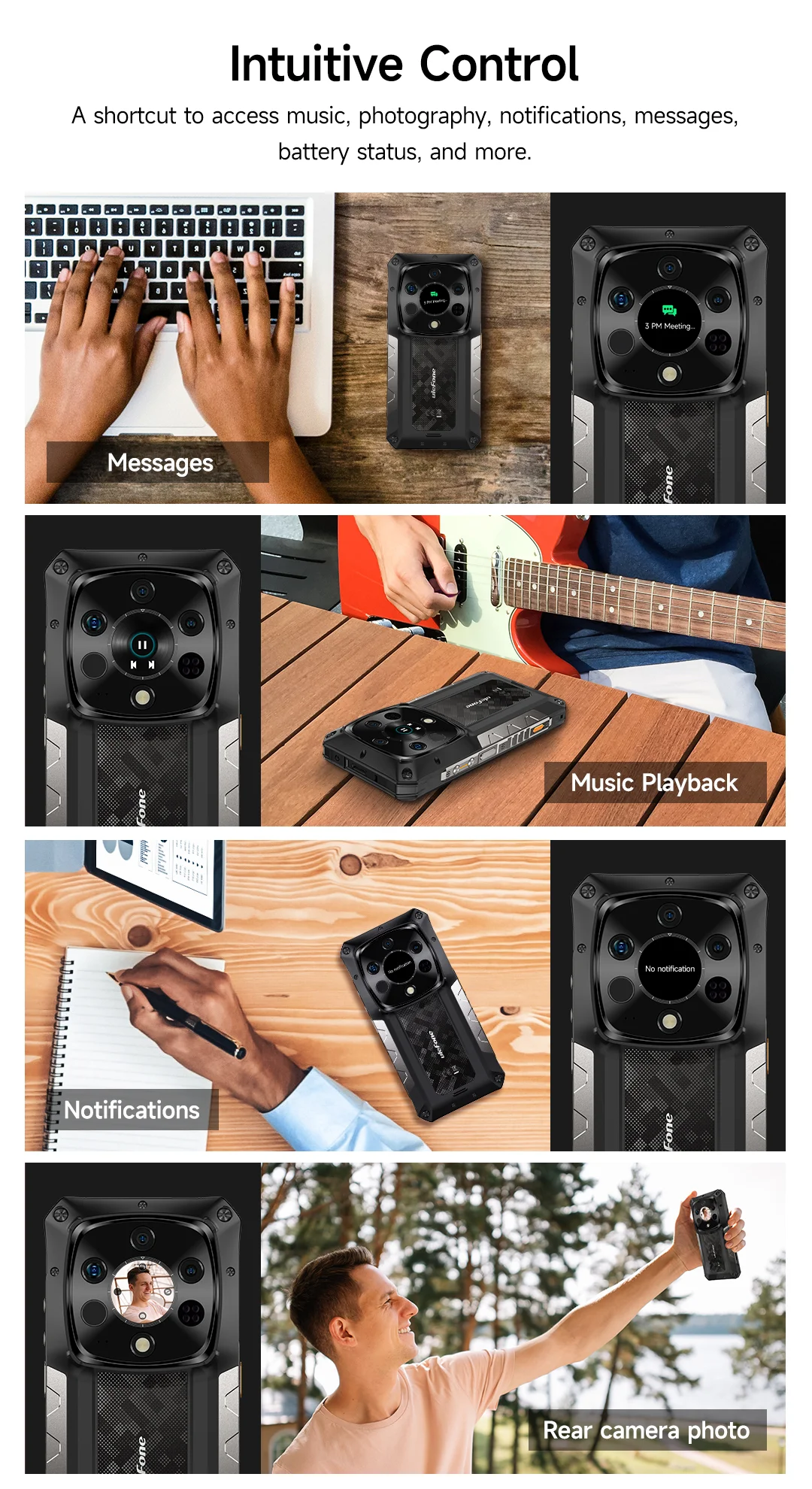

UI/Features
Interface Display
Default features include clock, compass, music, camera, and calendar. Users can add recording, noise measurement, barometer, power saving mode, and scenario mode through the settings menu. Interface switching is supported by swiping left or right.

Watch Face
Customization of watch face wallpapers is available through the settings menu or by double-tapping on the sub-screen watch face, then swiping left/right and long-pressing to select a watch face wallpaper. Different watch face designs display various information such as digital clock, date, battery level, step count, and air pressure.

Music Playback
Supports selection of different music apps. Displays music playback status and song title. Users can control play/pause, and navigate to the previous/next track. The media app’s poster can be synchronized and displayed on the sub-screen.

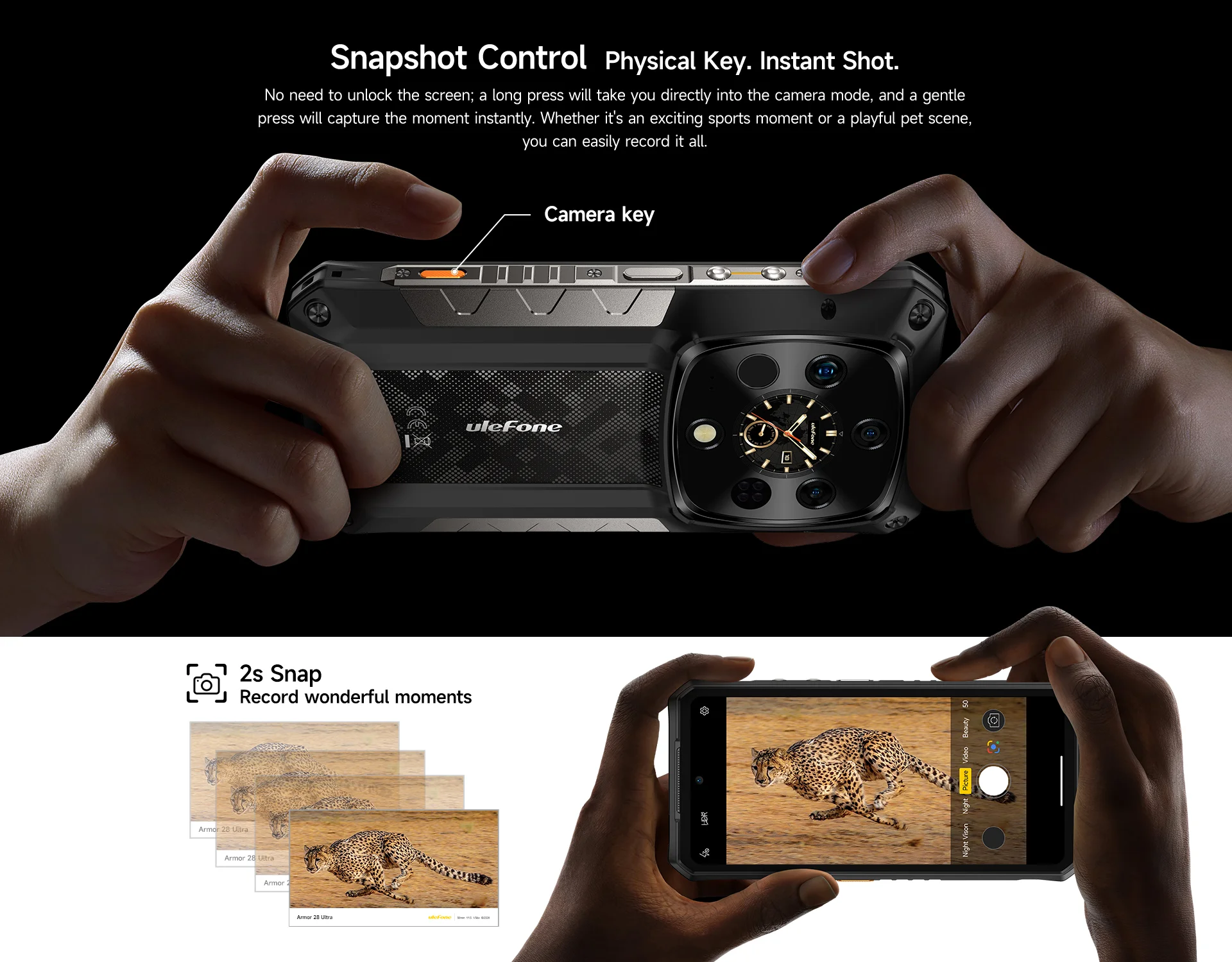

Photo Capture
Provides quick access to photo capture, switching between front and rear cameras. Users can return to the camera, view photos, and check full-size images in the gallery app.

Notifications
By swiping up on the sub-screen, users can quickly view notifications and messages.

Status
By swiping down on the sub-screen, users can quickly check the battery status.

Personal Signature
Displays a personal signature upon screen-on, which can be customized in the sub-screen settings menu.

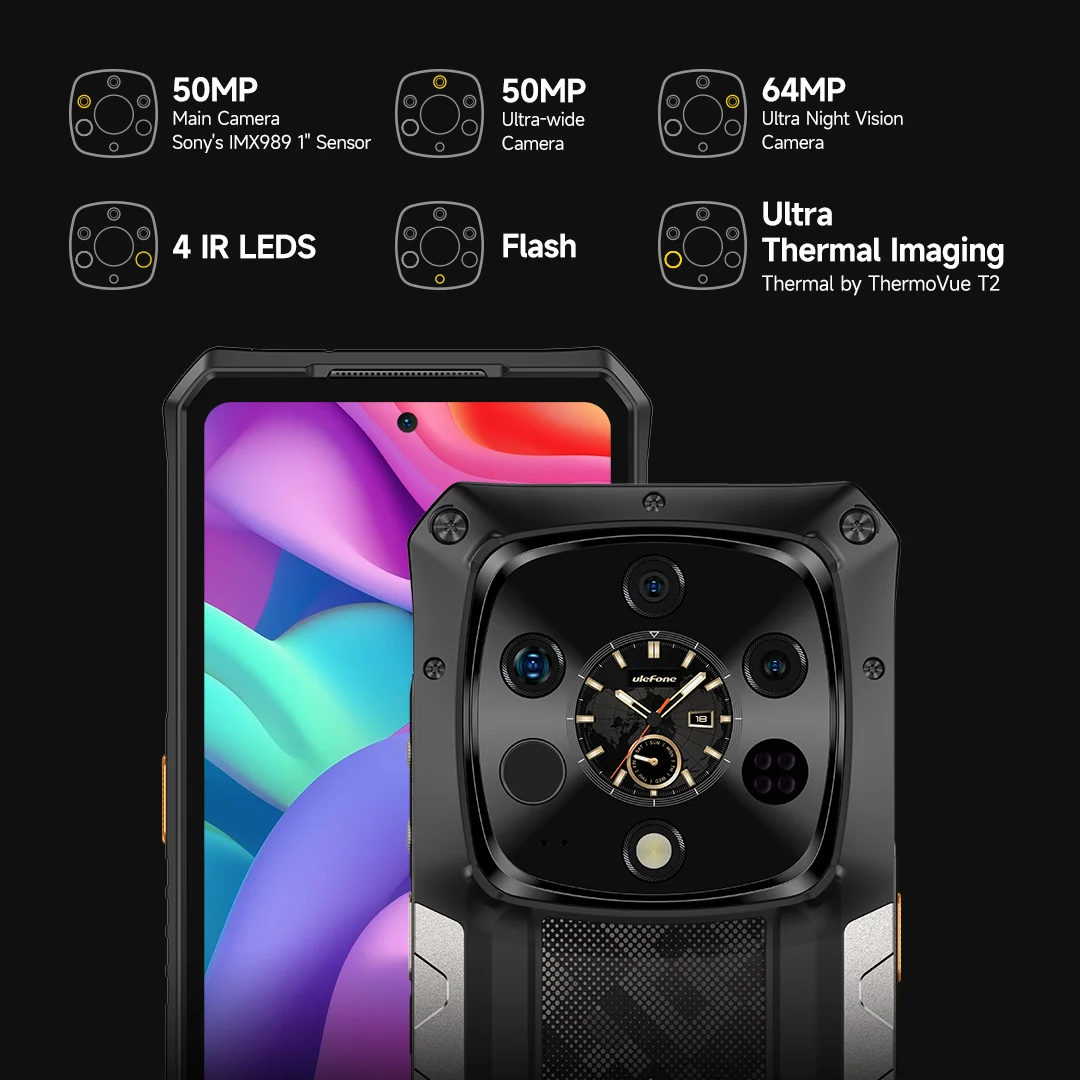

Rear Camera
50MP+64MP+50MP Triple Camera
50MP Main Camera
Sony IMX989 sensor, 1.6μm, 8 piece lens, FOV 85.1°, ƒ/1.9 large aperture

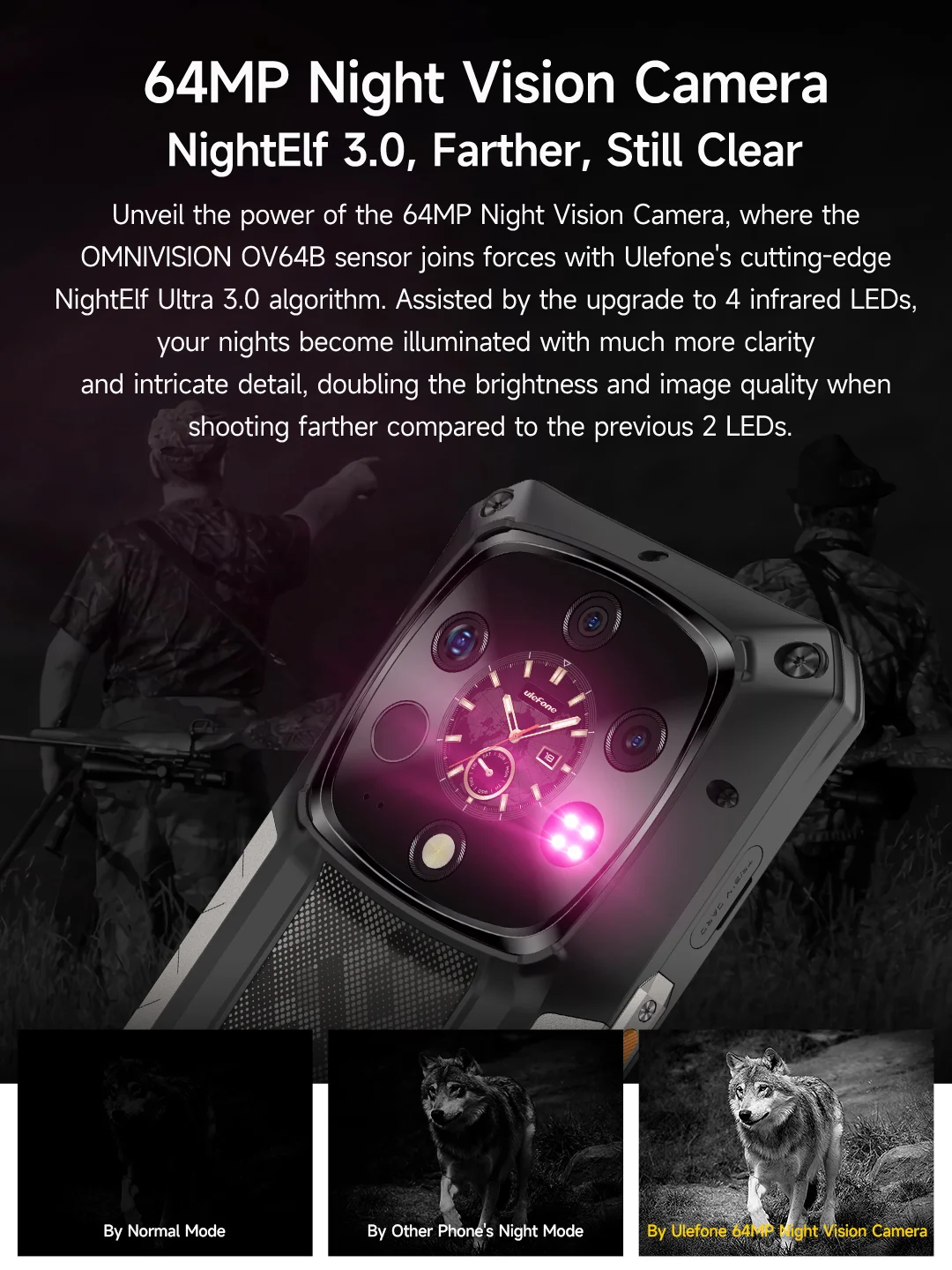

64MP Night Vision Camera
OV64B sensor, ƒ/1.79 large aperture
50MP Ultrawide Lens
Samsung JN1, FOV 117.3°, ƒ/2.2 large aperture
Photo resolution: up to 6144 x 8192 pixels
Video resolution: up to 8K

Rear camera photography features
Normal mode, Night vision mode, Beauty mode, Wide angle mode, 50MP mode, Night mode, Gif, Portrait, Pro mode, Panorama, Slow motion, Mono, QR code, HDR, AI, ZSD, Self timer, Volume key, Anti flicker, Shutter Sound, Location, Watermark, Touch Capture, Gridlines, Reset

Rear camera video features
8K recording 30fps
4K recording 60fps/30fps
1080P recording 60fps/30fps
720P recording 60fps/30fps
480P recording 60fps/30fps

Front Camera
50MP selfie camera
Samsung JN1 Sensor
0.64µm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture

Front camera photography features
Normal mode, Beauty mode , 50MP mode, Gif, Portrait, Mono, HDR, ZSD, Self timer, Volume key, Anti flicker, Shutter Sound, Location, Watermark, Touch Capture, Mirror, Gridlines, Reset

Front camera video features
1080P recording 30fps
720P recording 30fps
480P recording 30fps
288P recording 30fps

Underwater Photography
Supports to take photos & video recording
Supports to start/end operation underwater
Supports to quickly switch shooting modes underwater

Unlock Options
Supports Fingerprint Unlock
Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together
Capacitive Touch Sensor
Response speed: Up to 0.1s
Supports the enrollment of 5 sets of fingerprint
Supports Face Unlock

Network
Supports use of dual SIM cards from different carriers
Both cards can access 5G connectivity
Both cards can access 4G connectivity simultaneously
Dual Nano SIM; either card can be set as the primary card
Supports 5G/4G/3G/2G
Supports VoLTE HD calling
Supported network bands
5G NetworkNR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79
4G NetworkLTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/32/66/71LTE-TDD: B34/38/39/40/41
3G NetworkWCDMA:B1/2/4/5/6/8/19
2G NetworkGSM: B2/3/5/8CDMA: BC0/BC1/BC10

Connectivity
WLAN
Supports protocols: 802.11 be/ax/ac/a/b/g/n
Supports WiFi 7 (2.4GHz/5GHz/6GHz)

Bluetooth
Supports Bluetooth 5.4

Navigation and positioning
Supports multiple positioning systems
GPSGLONASS
Galileo
QZSSNavlC GPS
BEIDOU
Digital Compass

NFC
Supports Google Pay
Supports Transit, Loyalty Cards, Gift Cards and Plane tickets

Operating System
Android 14 （Supports Android 15 update）
Pure Android System
No ads

Sensors
Thermal Sensor, Infrared sensor，Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor

Multimedia
Video MOV/MKV/3GP/MP4
Audio MID/FLAC/MKA/MP3/M4A
AAC/AMR/OGG/MP2
Image GIF/JPEG/PNG/BMP
Ebook TXT/HTML

Ports
Type-C, USB 3.2 Gen 23.5 mm Headphone Jack

Card slot
Three(3), Nano SIM + Nano SIM + microSD

Notification Light
Support, tri-color light, red/green/blue
Supports charging prompt

Language support
Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

In the box
Armor 28 Ultra Thermal Version
3pin AC power charger (100~240V)
Type-C to Type-C Data cable (100cm)
Protective Film (Pre-installed)
Tempered Glass Screen Protector
SIM needle
Lanyard
Multi-language User Manual
Multi Function Instruction Card
Warranty card
Charging Instruction card
Safety Prompt card
Accessories Ecosystem Brochure

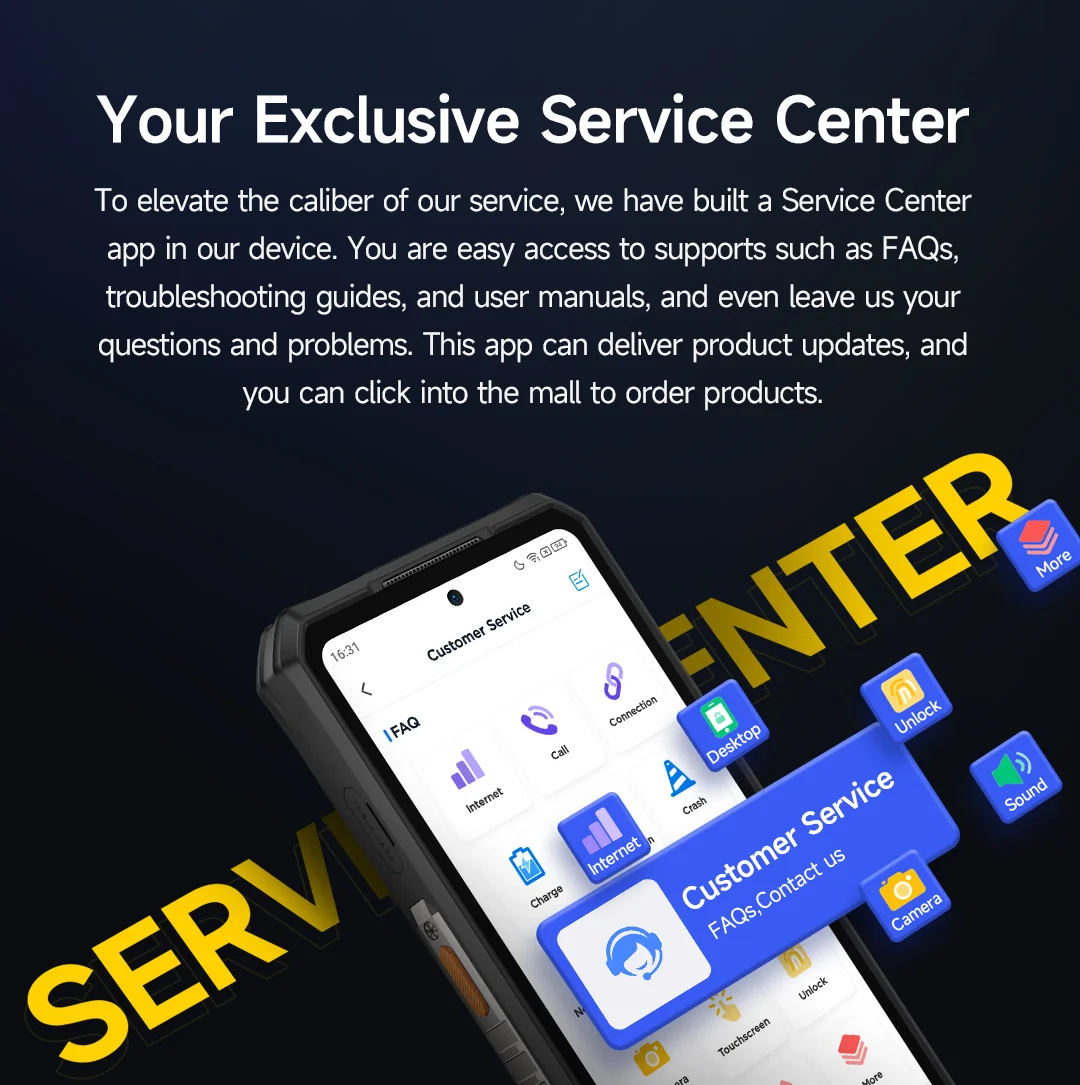

Service Center APP Instructions
Thermal Imaging User Manual Access Guide
User Tribute Card
