Size and Weight

• Height: 142 mm
• Width: 62 mm
• Depth: 16.5 mm
• Weight: 170 grams

*Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product.

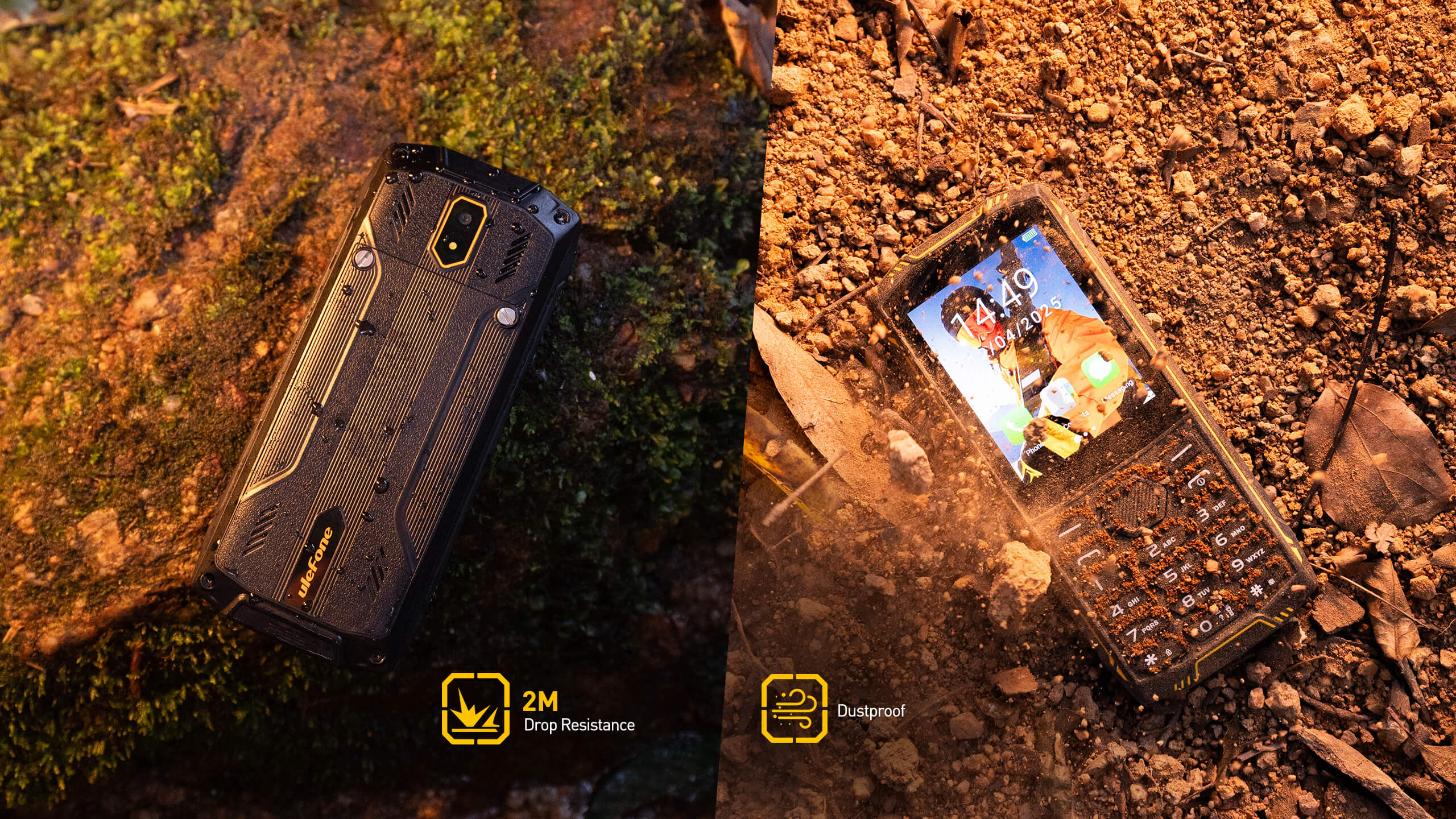

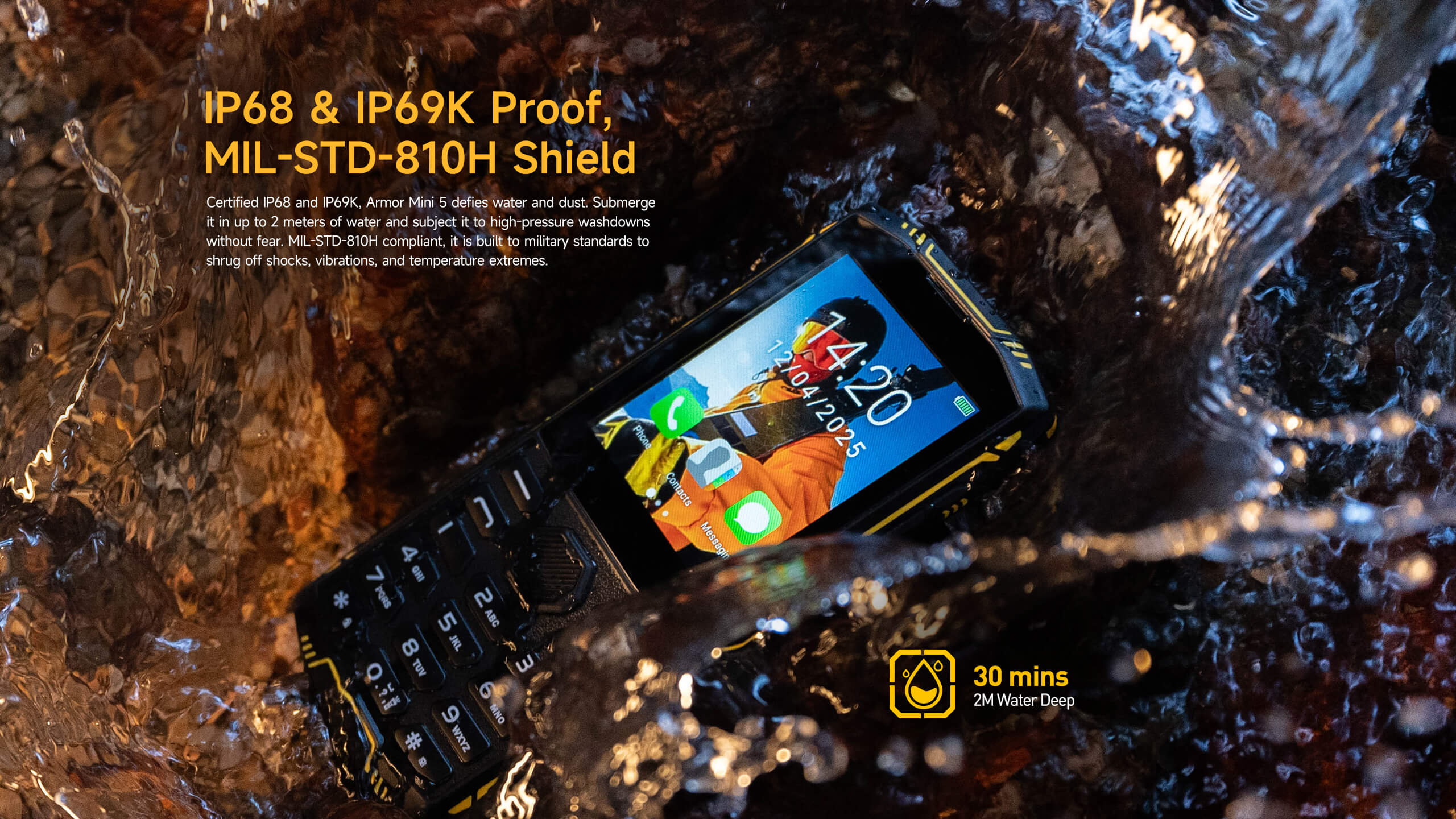

Rugged

• Splash, Water and Dust Resistant
• Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529
• Rated IP69K under IEC standard 60529
• MIL-STD-810H Certification

*Armor Mini 5 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor Mini 5. Liquid damage not covered under warranty.

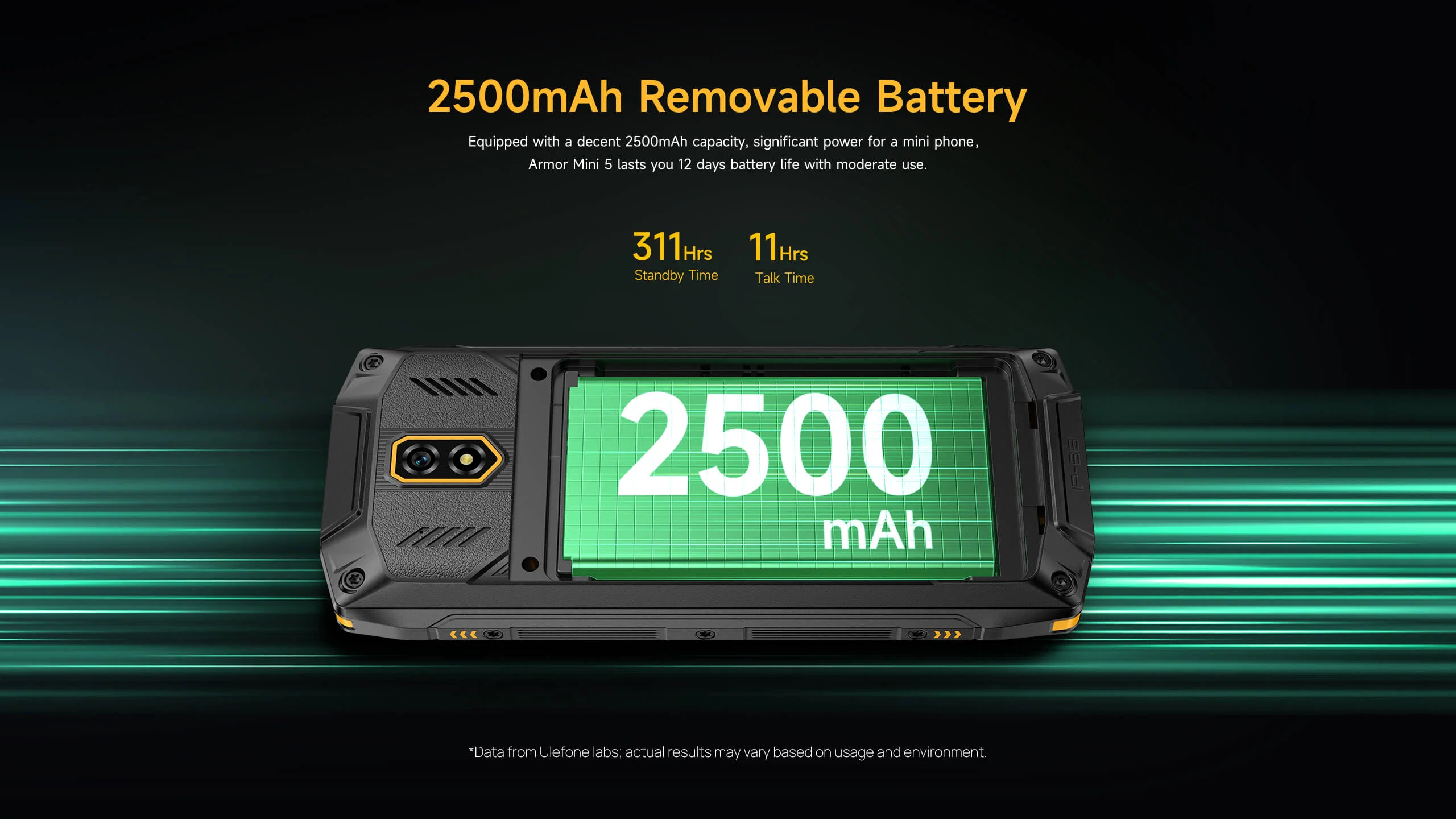

Charging and Battery

• 2500mAh Battery (Typ) / 2520mAh (Typical)
• 4.2V Lithium Battery
• USB Type-C port
• Supports 5W fast charging

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.

*Use with original charger and data cable, the max charging power can reach 5W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

Processor

• MediaTek MT6739

Storage and RAM

• 1GB+8GB
• RAM: 1GB large memory
• Flash storage: 8GB phone storage
• microSD memory card Up to 64GB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.

*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

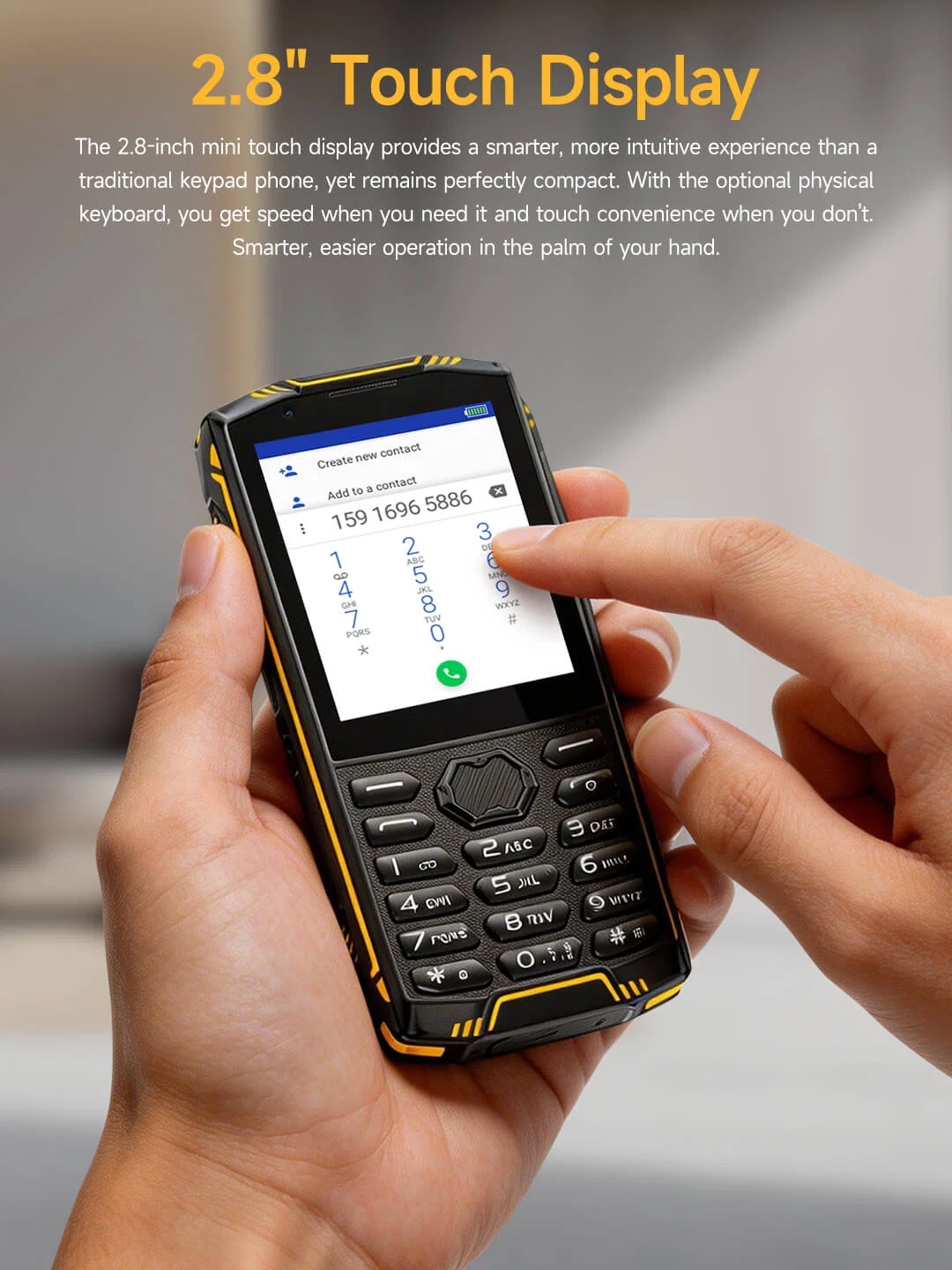

Display

• 2.8‑inch QVGA
• Touch Display
• 240 x 320

*With a rounded corners design on the display, the diagonal length of the screen is 2.8 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).

*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

Rear Camera

• 0.3MP Rear Camera

*The actual photo and video resolution may vary depending on the shooting mode.

Front Camera

• 0.3MP Selfie Camera

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Network

• Supports use of dual SIM cards from different carriers
• Both cards can access 4G connectivity simultaneously
• Dual Nano SIM; either card can be set as the primary card
• Supports 4G/3G/2G

*Dual 4G requires the support of local carriers services, and may not be available in all regions.

*Only supports single SIM for communication service, which means when one of the SIM cards is in calling, the other SIM card will not be able to connect.

*Only certain regions and telecom operators support VoLTE.

Connectivity

• Bluetooth
• Supports Bluetooth 2.1

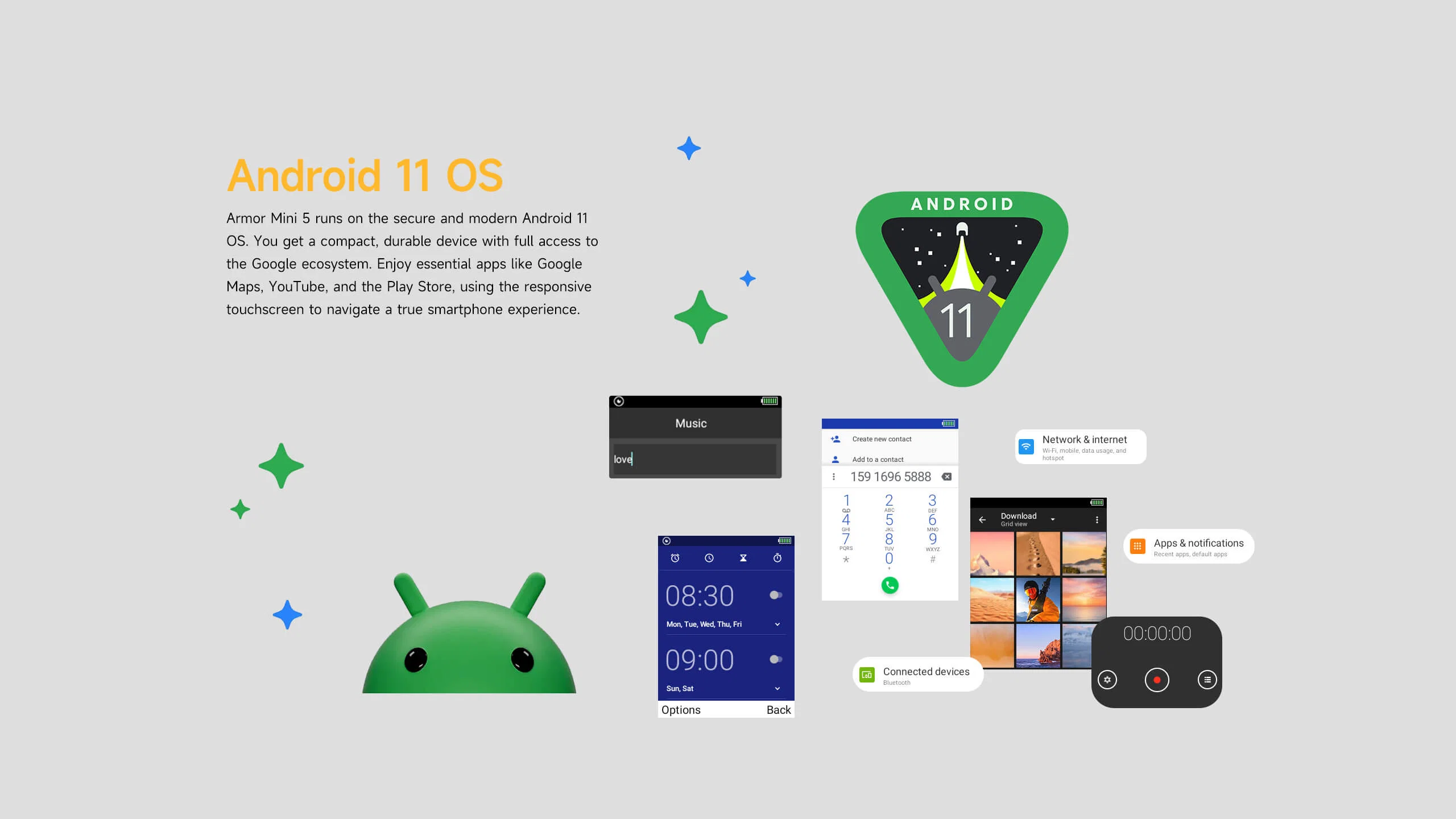

Operating System

• Android 11

Multimedia

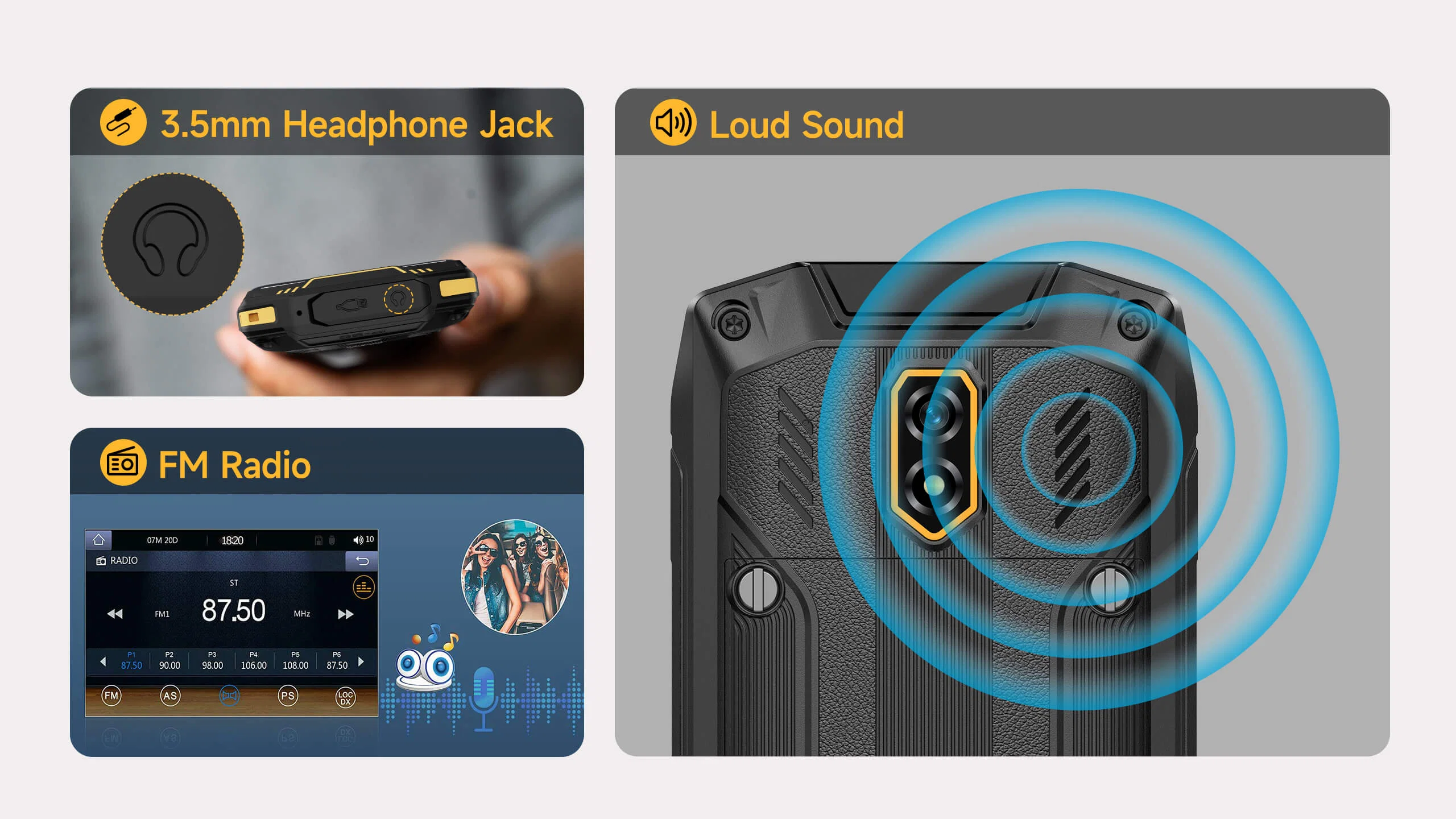

Ports

• Type-C
• 3.5 mm Headphone Jack

SIM Card

• Three(3), Nano SIM + Nano SIM + microSD

SAR

• Maximum 10g SAR
• Head: 0.72W/KG   Body: 1.39W/KG

Language support

• English (default), Spanish, German, French, Ukrainian, Greek, Polish, Czech, Portuguese, Russian, Italian, Turkish, Dutch, Finnish, Swedish, Arabic, Norwegian, Danish, Hungarian, Bulgarian

In the box

• Armor Mini 5
• 1 x USB-A to USB-C Cable (100cm)
• 1 x Screwdriver
• 1 x Warranty Card
• 1 x Multi-language User Manual
• 1 x Safety Prompt Statement

*The AC power charger’s plug type varies according to your region, with optional standard EU/AU/US plugs available.

*May vary in different market. Subject to the actual product.

*The appearance of package and accessories may be different, but the function remain the same, please refer to the actual.
